Key-off Operation Function Operates even if Operating Conditions are not Satisfied: Wiring Diagram

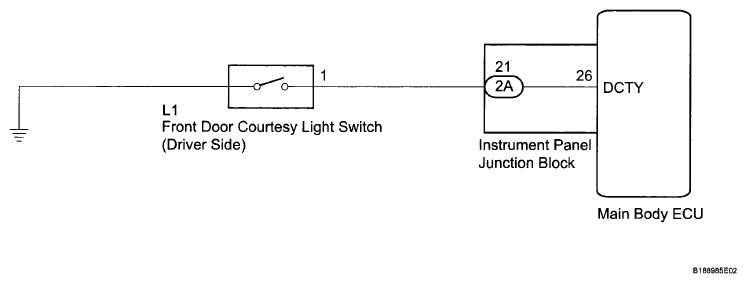

Fig 1: Front Door Courtesy Light Switch (Door Side) - Wiring Diagram
G06038104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
