Sound Signal Circuit between Radio Receiver and Stereo Component Amplifier: Wiring Diagram

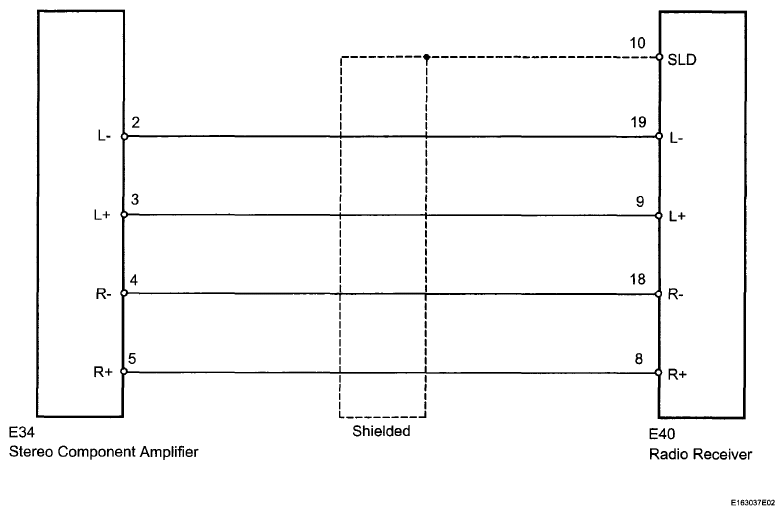

Fig 1: Sound Signal Circuit - Wiring Diagram

G06035721

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
