Transfer Oil: Replacement

DRAIN TRANSFER OIL
1. Remove the 2 bolts and transfer dynamic damper.

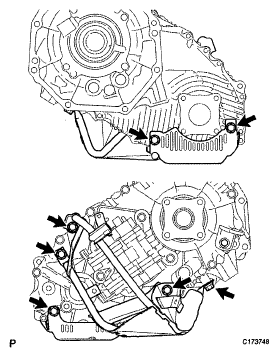

  Fig 1: Locating Transfer Dynamic Damper Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 4 bolts and transfer heat insulator.

  Fig 2: Locating Transfer Heat Insulator Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 7 bolts and lower transfer case protector.

  Fig 3: Locating Lower Transfer Case Protector Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the filler plug and gasket.

  Fig 4: Locating Filler Plug And Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the drain plug and gasket, and drain the transfer oil.
Fig 5: Locating Drain Plug And Gasket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADD TRANSFER OIL
1. Install a new gasket to the drain plug and then install the plug.
  Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

  Fig 6: Locating Drain Plug And Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Add oil so that the oil level is between 0 to 5.0 mm (0 to 0.197 in.) from the bottom lip of the filler plug hole.
  NOTE:
  - Add oil slowly.
  - Add oil a little at a time, waiting several minutes between each addition of oil.
3. Wait approximately 5 minutes and check that the oil level has not changed.

  Fig 7: Checking Oil Level
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install a new gasket to the filler plug and then install the plug.
  Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

  Fig 8: Locating Filler Plug And Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the lower transfer case protector with the 7 bolts.
  Torque: 14 N*m (139 kgf*cm, 10 ft.*lbf)

  Fig 9: Locating Lower Transfer Case Protector Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the transfer heat insulator with the 4 bolts.
  Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

  Fig 10: Locating Transfer Heat Insulator Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Install the transfer dynamic damper with the 2 bolts.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  Fig 11: Locating Transfer Dynamic Damper Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
