Front Stabilizer Bar: Components

Fig 1: Identifying Front Stabilizer Bar Replacement Components With Torque Specifications (1 Of 3)
G05638804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Front Stabilizer Bar Replacement Components With Torque Specifications (2 Of 3)
G05638805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

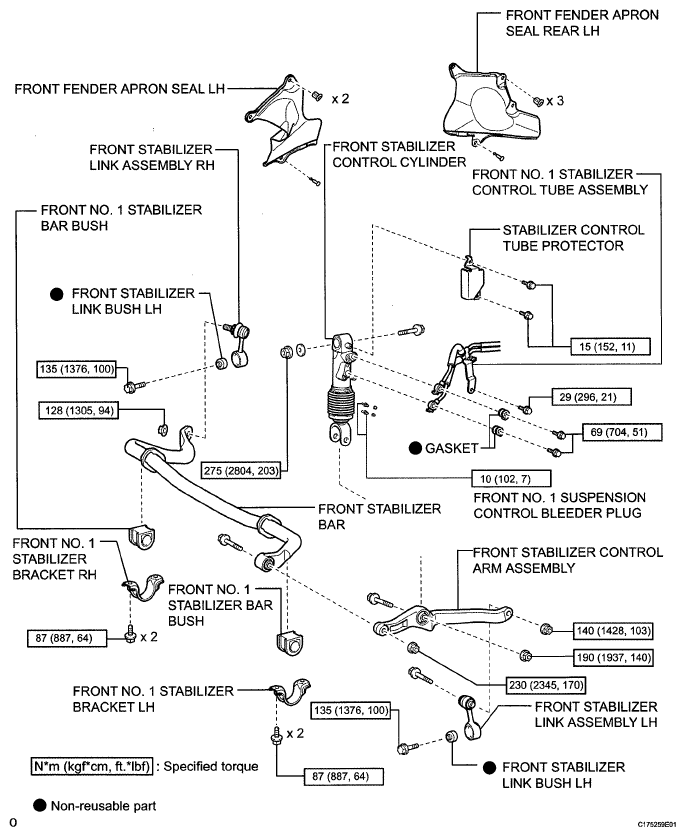

Fig 3: Identifying Front Stabilizer Bar Replacement Components With Torque Specifications (3 Of 3)
G05638806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
