Front Shock Absorber: Reassembly

INSTALL FRONT COIL SPRING LH
1. Using SST, compress the coil spring.
  SST 09727-30021 (09727-00010, 09727-00021, 09727-00031)
  NOTE:
  - Do not compress the coil spring more than necessary.
  - Do not use an impact wrench. It will damage SST.

    Fig 1: Compressing Coil Spring With SST
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the coil spring to the shock absorber.
  HINT:

  Fit the lower end of the coil spring into the recess of the spring seat of the shock absorber.
INSTALL FRONT SUSPENSION SUPPORT SUBASSEMBLY LH
1. Install the 2 cushions, 2 retainers and suspension support to the piston rod.
2. Temporarily install a new front shock absorber nut to the suspension support.

  Fig 2: Identifying Lower End Of Coil Spring With SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Position the suspension support as shown in the illustration.

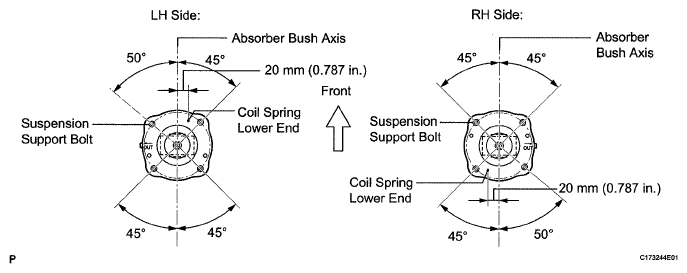

  Fig 3: Identifying Suspension Support Installation Angles
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove SST.
  NOTE: Do not use an impact wrench. It will damage the shock absorber rod.

  HINT:

  Release the coil spring while checking the position of the suspension support.
TIGHTEN FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT
1. Tighten the nut.
  Torque: 65 N*m (575 kgf*cm, 48 ft.*lbf)
