Front Shock Absorber: Components

Fig 1: Front Shock Absorber Replacement Components With Torque Specifications (1 Of 2)
G05638742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

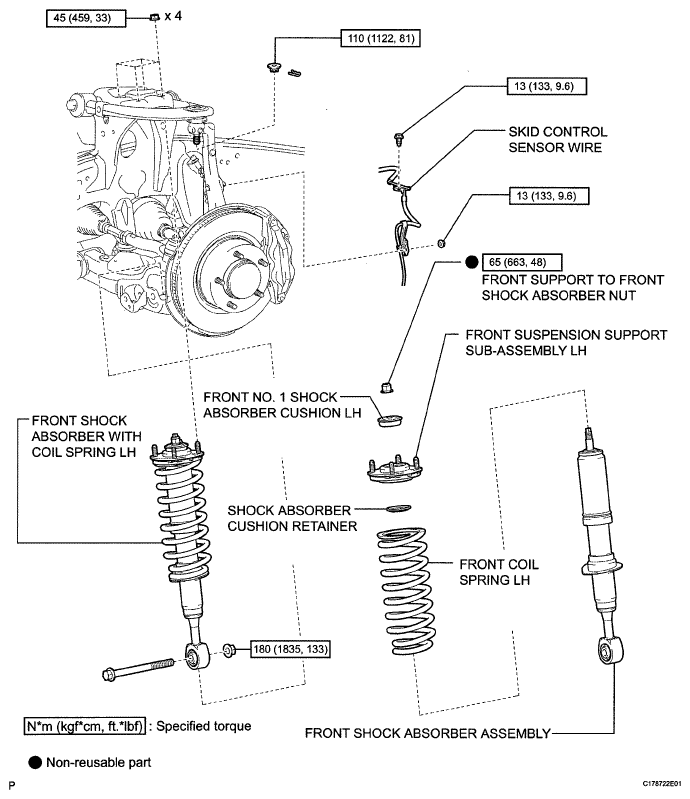

Fig 2: Front Shock Absorber Replacement Components With Torque Specifications (2 Of 2)
G05638743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
