Multiplex Tilt And Telescopic Ecu: Components

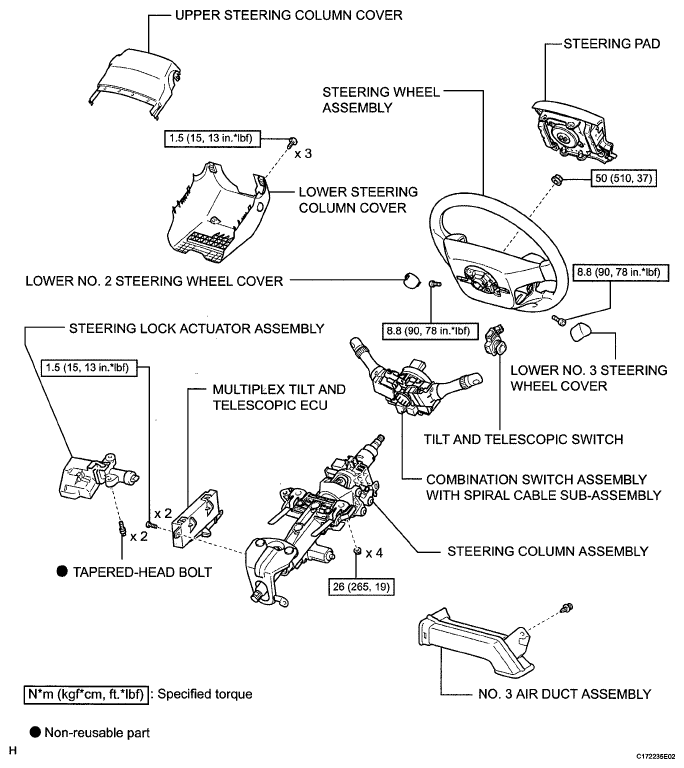

Fig 1: Identifying Multiplex Tilt And Telescopic ECU Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

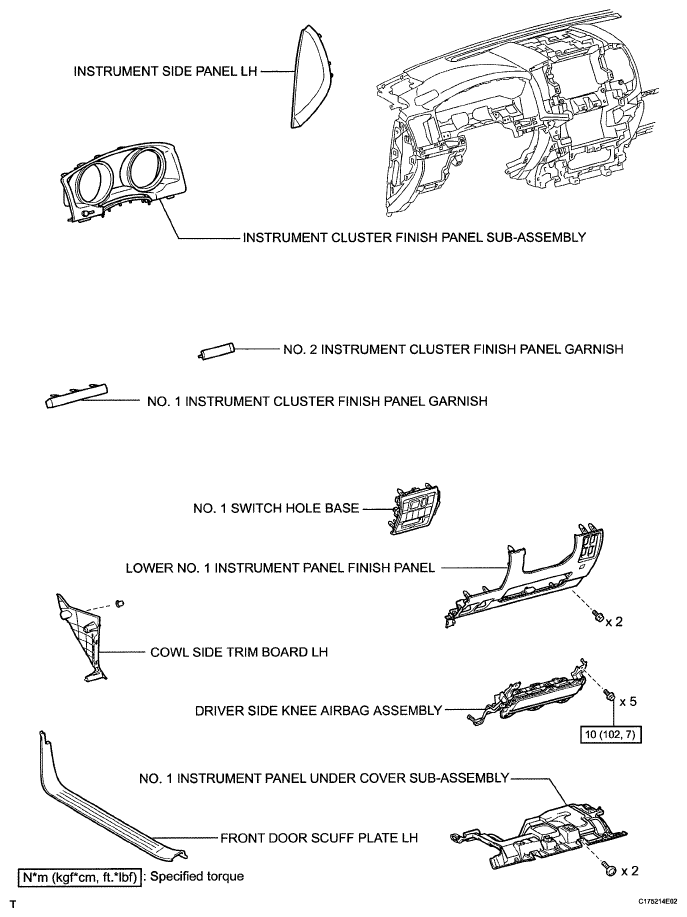

Fig 2: Identifying Multiplex Tilt And Telescopic ECU Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

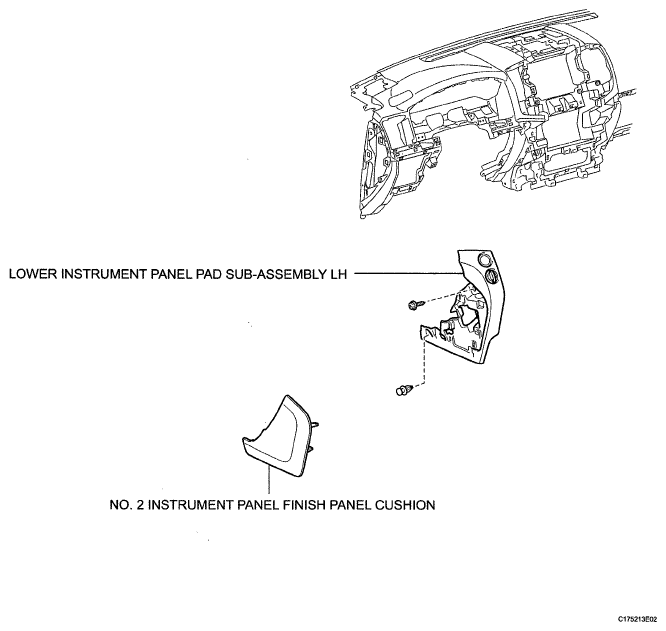

Fig 3: Identifying Multiplex Tilt And Telescopic ECU Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
