Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Intake / Exhaust Assembly
>>
Intake System
>>
Parts Location
Parts Location

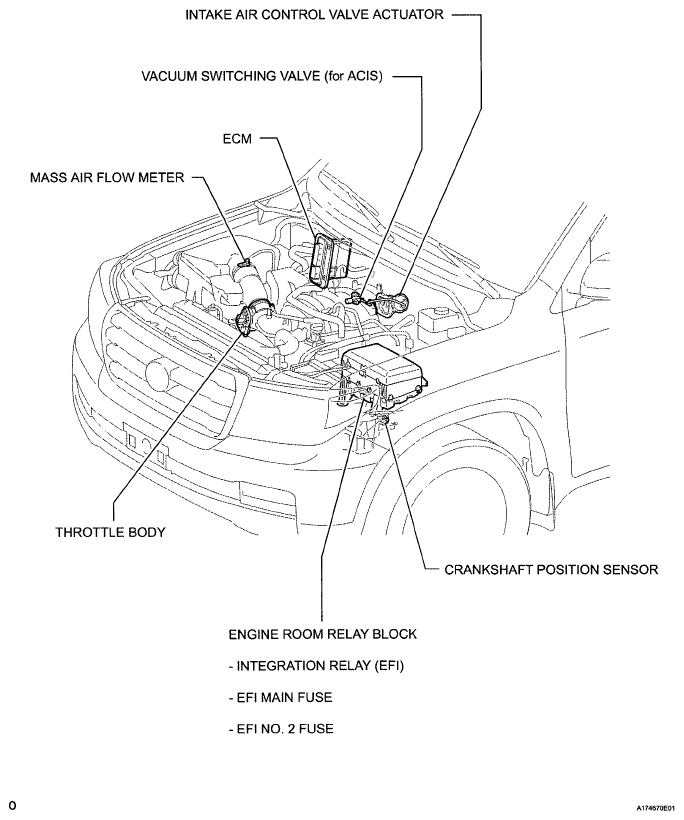

Fig 1: Identifying Location Of Intake System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
