Home >> Toyota >> 2009 >> Land Cruiser >> Repair and Diagnosis >> Engine Mechanical >> Cooling Fan >> Engine Cooling System >> Thermostat >> Components

Engine Cooling System: Thermostat: Components

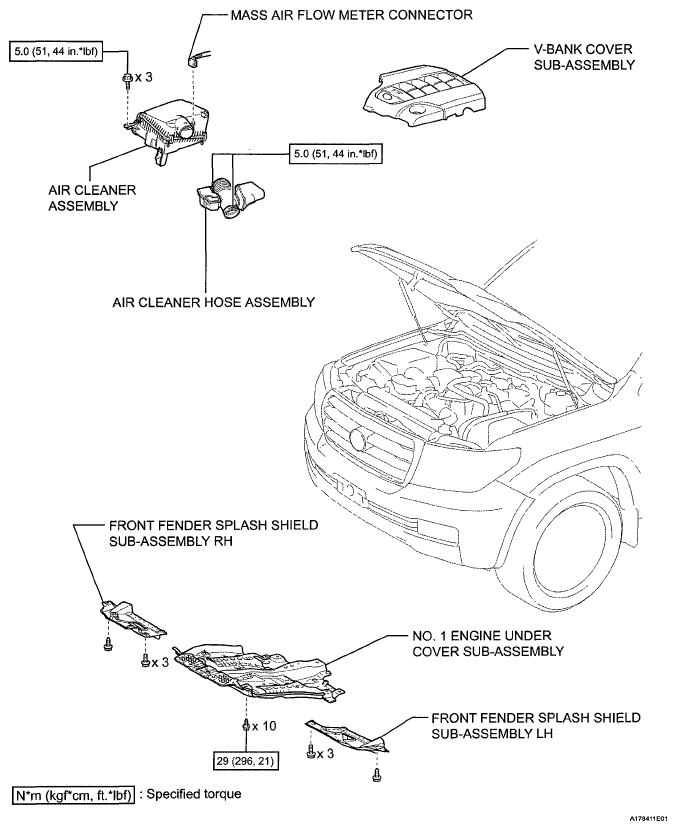

Fig 1: Identifying Thermostat Replacement Components With Torque Specifications (1 Of 2)
G05638102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

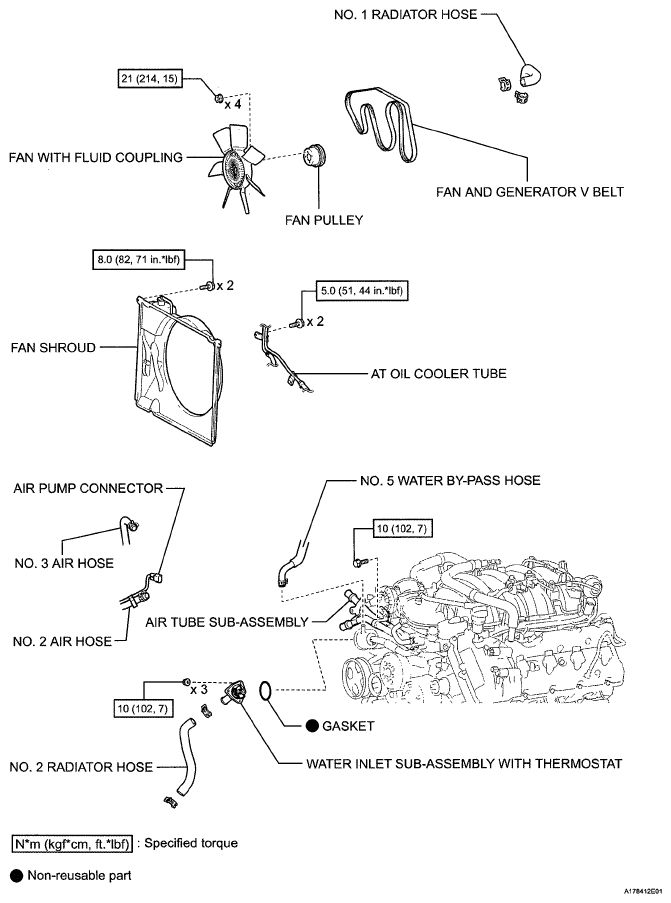

Fig 2: Identifying Thermostat Replacement Components With Torque Specifications (2 Of 2)
G05638103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
