Purge Valve: Components

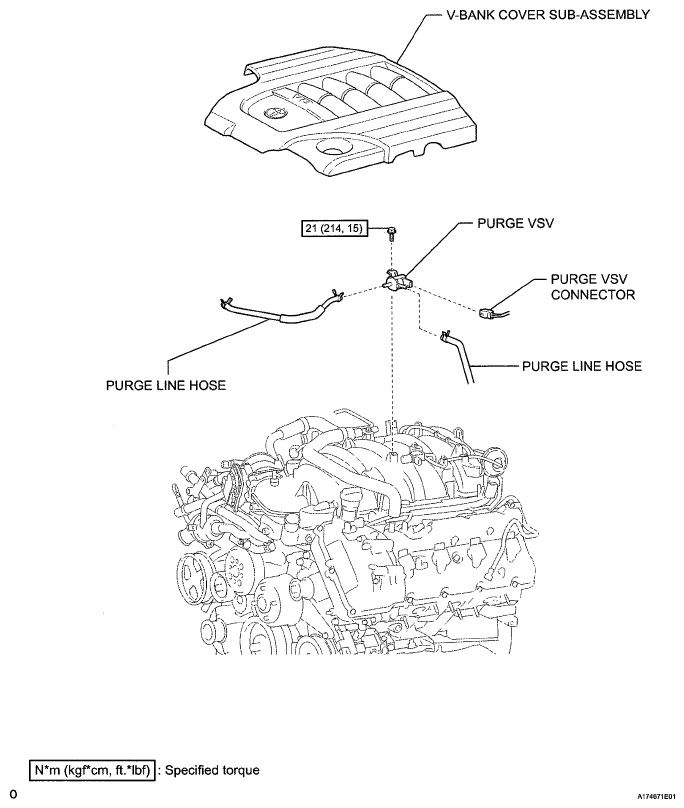

Fig 1: Purge Valve Replacement Components With Torque Specifications

G05637977

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
