Air Pump: Components

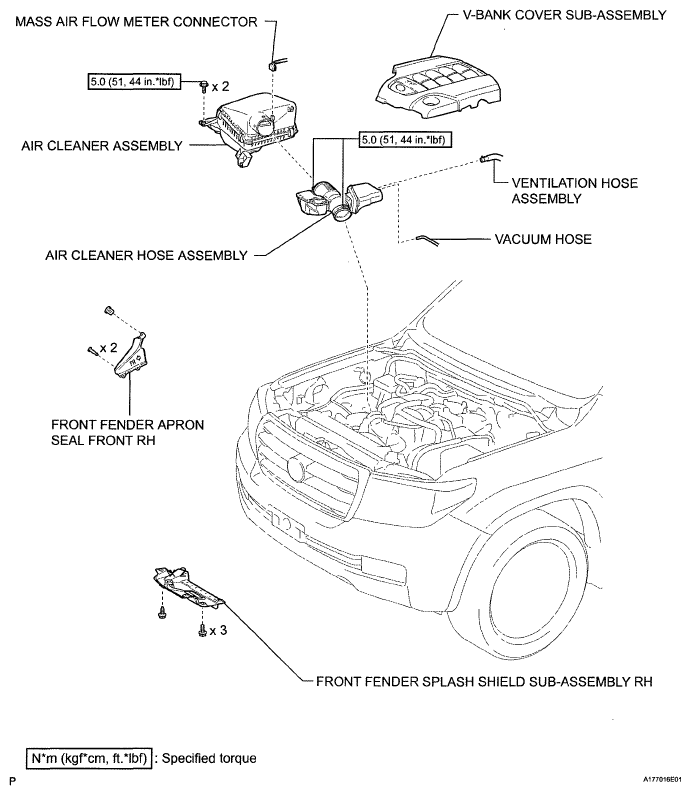

Fig 1: Identifying Air Pump Replacement Components With Torque Specifications (1 Of 2)
G05637899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

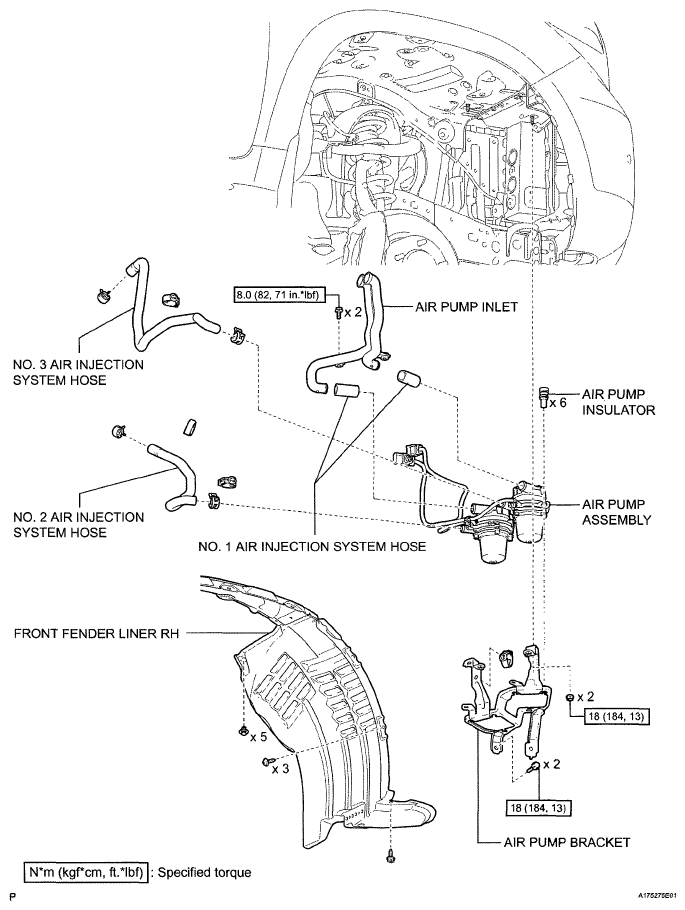

Fig 2: Identifying Air Pump Replacement Components With Torque Specifications (2 Of 2)
G05637900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
