Home >> Toyota >> 2009 >> Land Cruiser >> Repair and Diagnosis >> Electrical >> Horns >> Low Pitched Horn >> Components

Low Pitched Horn: Components

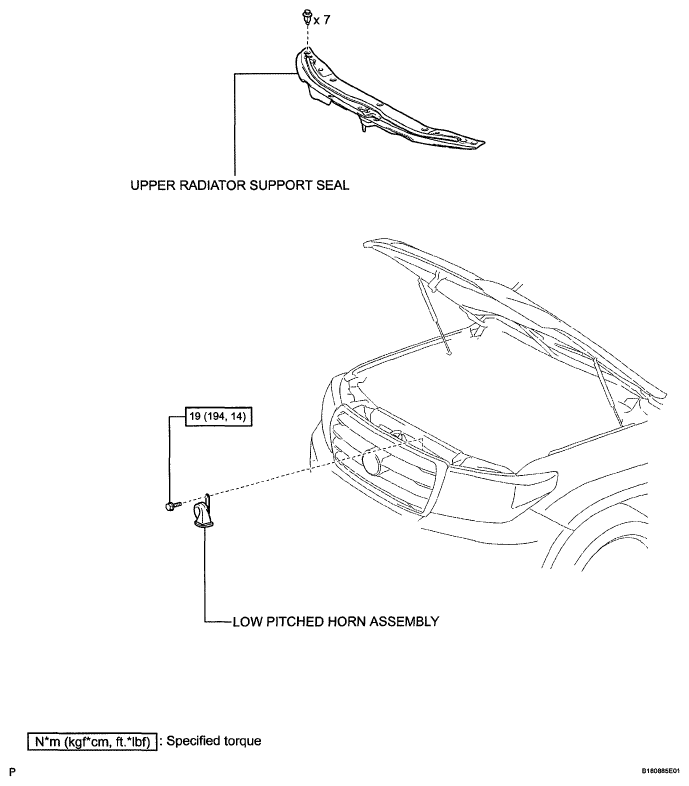

Fig 1: Low Pitched Horn With Torque Specification

G05637219

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
