Parking Brake Assembly: Components

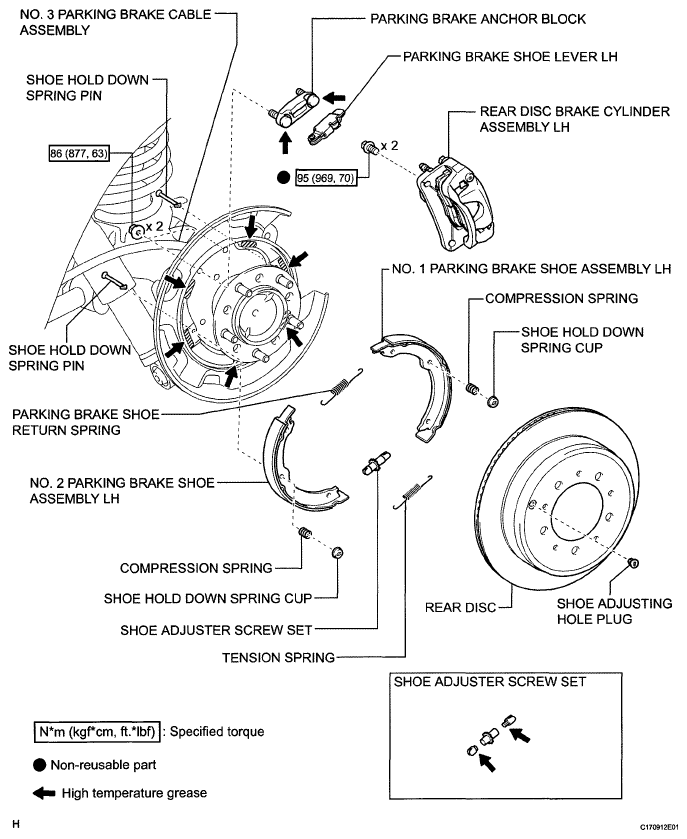

Fig 1: Parking Brake Assembly Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
