Parts Location

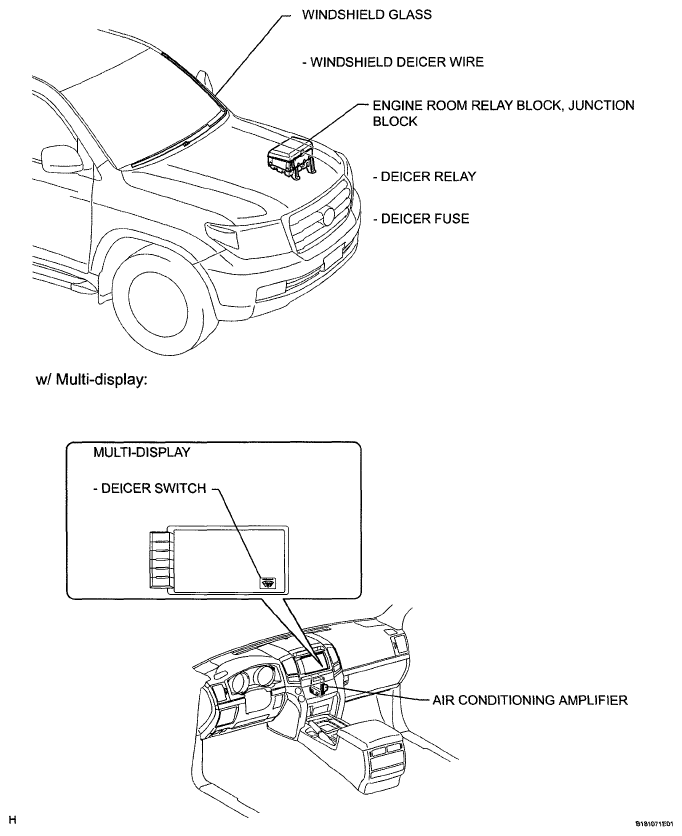

Fig 1: Identifying Windshield Deicer System Parts Location (1 Of 2)
G05636430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

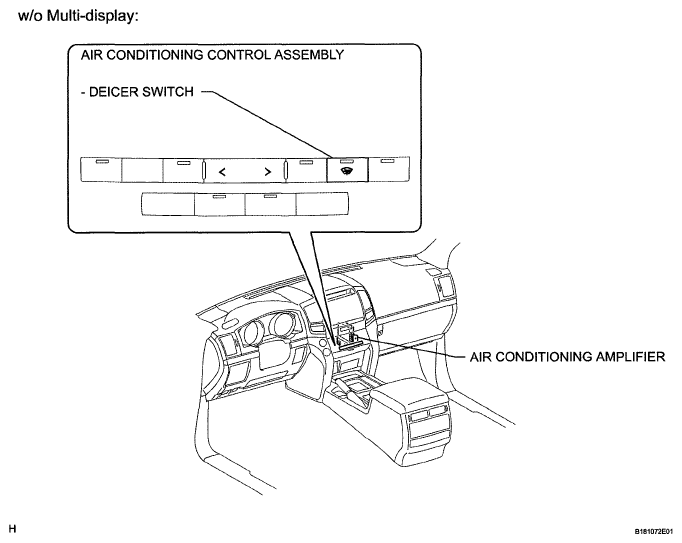

Fig 2: Identifying Windshield Deicer System Parts Location (2 Of 2)
G05636431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
