Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch: Wiring Diagram

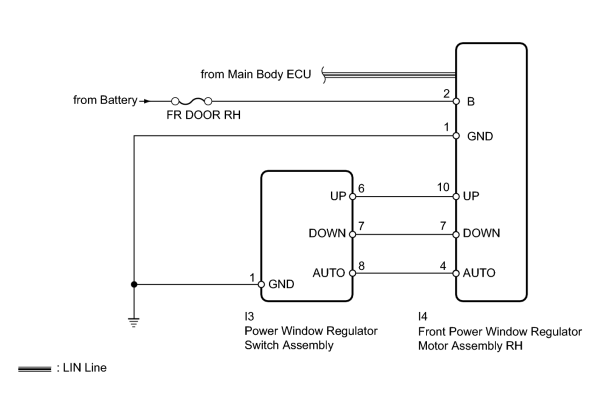

Fig 1: Front Power Window Regulator Motor & Power Window Regulator Switch - Wiring Diagram
G00412901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
