Front Seatback Heater: Components

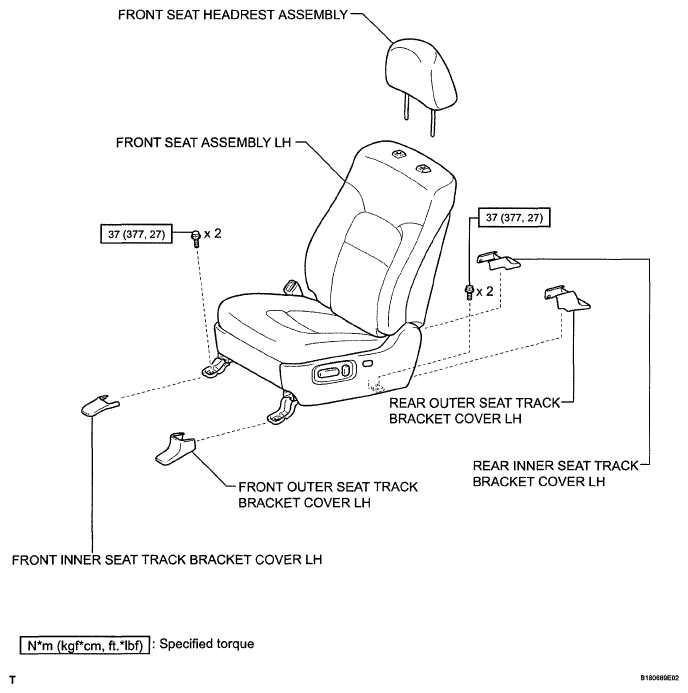

Fig 1: Identifying Front Seatback Heater Replacement Components With Torque Specifications (1 Of 2)
G05632084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

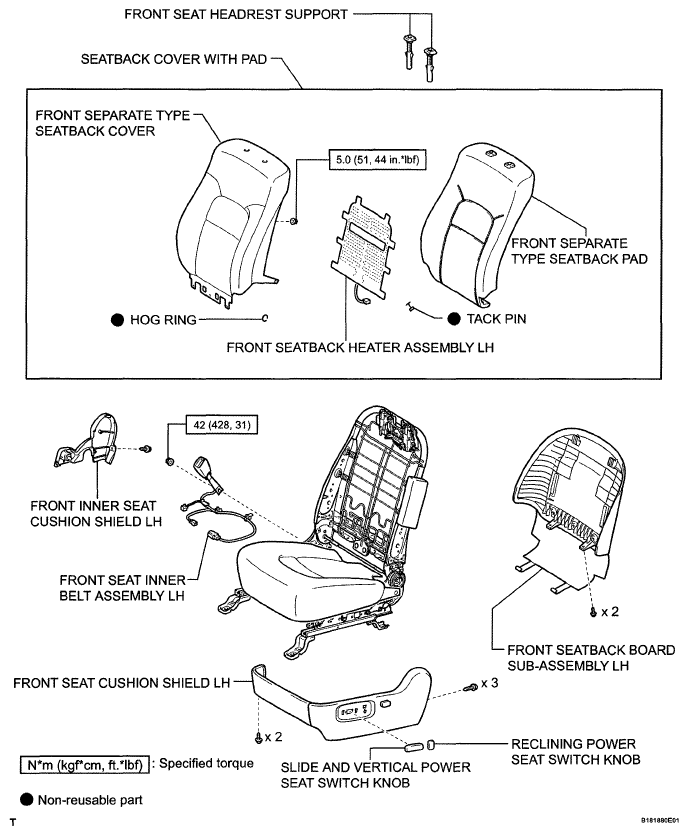

Fig 2: Identifying Front Seatback Heater Replacement Components With Torque Specifications (2 Of 2)
G05632111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
