Front Seat Assembly: Reassembly

CAUTION: Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:

  1. INSTALL FRONT SEAT WIRE LH
  2. INSTALL SEAT POSITION SENSOR  (See INSTALLATION )
  3. INSTALL OCCUPANT CLASSIFICATION ECU (Front Passenger Side)  (See INSTALLATION )
  4. INSTALL SEAT HEATER CONTROL SUB-ASSEMBLY
    1. Attach the claw to install the seat heater control.
    2. Attach the clamp and connect the seat heater control connector.
    Fig 1: Identifying Seat Heater Control Claw
    G05631648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FRONT LOWER SEAT CUSHION SHIELD RH
    1. Attach the hook to install the lower cushion shield.
    2. Install the screw.
  6. INSTALL FRONT LOWER SEAT CUSHION SHIELD LH
    1. Attach the hook to install the lower cushion shield.
    2. Install the screw.
    Fig 2: Identifying Front Lower Seat Cushion Shield Screw
    G05631647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL UPPER ACTIVE HEADREST UNIT
    1. Install the upper active headrest unit to the lower active headrest unit with the cable clamp and nut.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    Fig 3: Identifying Cable Clamp Nut
    G05631646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL LOWER ACTIVE HEADREST UNIT
    1. Install the lower active headrest unit together with the upper active headrest unit with the 8 nuts.

      Torque: Upper active headrest unit

      14 N*m (143 kgf*cm, 10 ft.*lbf)

      Lower active headrest unit

      5.0 N*m (51 kgf*cm, 44 in.*lbf)

    Fig 4: Identifying Lower Active Headrest Unit Nuts
    G05631645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY LH (Driver Side)
    1. Attach the 3 claws to install the bush.
      Fig 5: Identifying Bush Claws
      G05631644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the lumbar support adjuster with the 2 screws.
    3. Connect the lumbar support adjuster connector.
      Fig 6: Identifying Lumbar Support Adjuster Screws
      G05631643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Attach the 4 hooks to install the seatback spring.
    5. Install the 4 springs.
    Fig 7: Identifying Springs
    G05631642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL OUTSIDE RECLINING ADJUSTER COVER RH
    1. Attach the claw to install the reclining adjuster cover.
    2. Install the screw.
  11. INSTALL OUTSIDE RECLINING ADJUSTER COVER LH
    1. Attach the claw to install the reclining adjuster cover.
    2. Install the screw.
    Fig 8: Identifying Reclining Adjuster Cover Claw And Screw
    G05631641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL INSIDE RECLINING ADJUSTER COVER RH
    1. Attach the claw to install the reclining adjuster cover.
    2. Install the 2 screws.
    3. Attach the wire harness clamp.
  13. INSTALL INSIDE RECLINING ADJUSTER COVER LH
    1. Attach the claw to install the reclining adjuster cover.
    2. Install the 2 screws.
    3. Attach the wire harness clamp.
    Fig 9: Identifying Inside Reclining Adjuster Cover Screws
    G05631640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL FRONT SEATBACK HEATER ASSEMBLY LH
    1. Set the seatback heater with the name stamp side facing the seatback cover.
    2. Install the seatback heater with new tack pins.

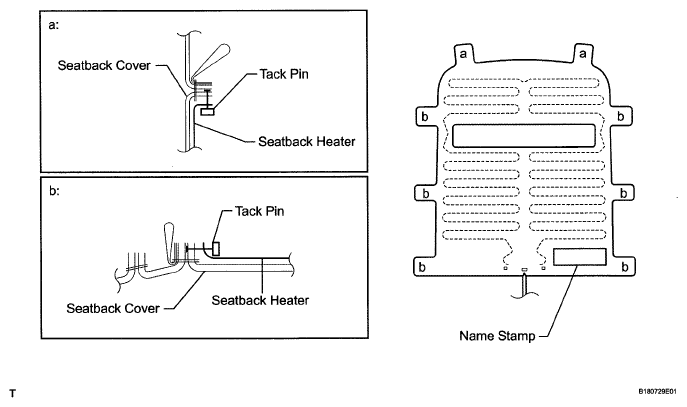

    Fig 10: Identifying Seatback Heater With Tack Pins
    G05631658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL FRONT SEPARATE TYPE SEATBACK COVER
    1. Attach the fastening tape to install the seatback cover.
    2. Using hog ring pliers, install the seatback cover with new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, avoid wrinkling the cover.
      Fig 11: Installing Seatback Cover With New Hog Rings Using Hog Ring Pliers
      G05631659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the seatback cover bracket to the seatback pad.
  16. INSTALL SEATBACK COVER WITH PAD
    1. Install the seatback cover with pad to the seatback frame.
      Fig 12: Connecting Seatback Cover Bracket To Seatback Pad
      G05631660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the seatback cover bracket to the seat frame with the nut.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

      CAUTION: After the seatback trim cover is assembled, make sure the side airbag strap is not twisted.
      Fig 13: Identifying Seatback Cover Bracket Nut
      G05631636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the 9 hooks.
    4. Using hog ring pliers, install 3 new hog rings to the seat frame.
  17. INSTALL FRONT SEAT HEADREST SUPPORT
    1. Attach the 4 claws to install the 2 headrest supports.
    Fig 14: Identifying Hog Rings And Hooks
    G05631635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY LH
    1. Move the seatback board in the direction of the arrow to attach the 2 hooks and install the seatback board.
    2. Install the 2 screws.
  19. INSTALL FRONT SEAT CUSHION HEATER ASSEMBLY LH
    NOTE:
    • As the front passenger side seat has an occupant classification system, its front seat cushion cannot be disassembled.
    • If replacing the front passenger side seat, replace the seat set (cushion set, occupant detection sensor, occupant classification ECU and 2 nuts).
    Fig 15: Installing Seatback Board
    G05631663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Set the seat cushion heater with the name stamp side facing the seat cushion cover.
    2. Install the seat cushion heater with new tack pins.

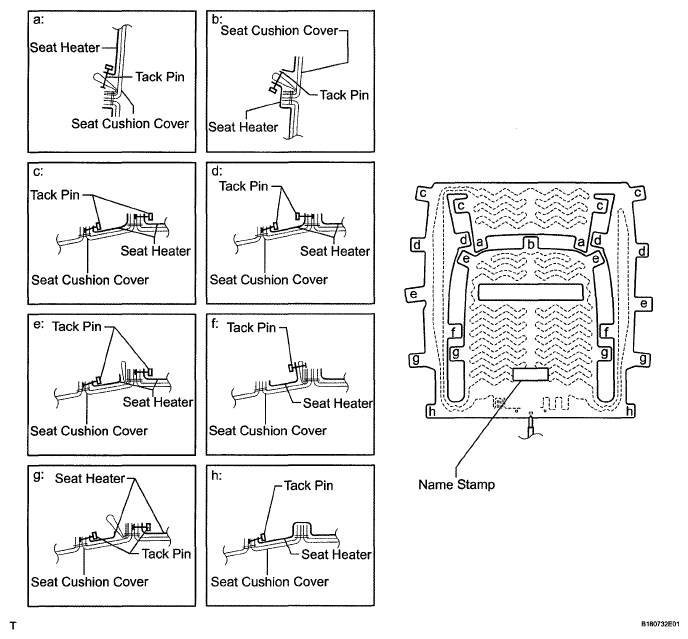

    Fig 16: Identifying Seat Cushion Heater, Tack Pins And Seat Cushion Cover
    G05631664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL FRONT SEPARATE TYPE SEAT CUSHION COVER
    NOTE:
    • As the front passenger side seat has an occupant classification system, its front seat cushion cannot be disassembled.
    • If replacing the front passenger side seat, replace the seat set (cushion set, occupant detection sensor, occupant classification ECU and 2 nuts).
    1. Using hog ring pliers, install the seat cushion cover to the seat cushion pad with new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, avoid wrinkling the cover.
    Fig 17: Installing Seat Cushion Cover To Seat Cushion Pad With New Hog Rings
    G05631665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL SEAT CUSHION COVER WITH PAD
    1. Attach the hooks to install the seat cushion cover with pad.
    2. Bend the 2 seat frame claws downward.
      Fig 18: Identifying Seat Cushion Cover Hooks And Seat Frame Claws
      G05631630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the seat heater control connector and attach the wire harness clamp.
      Fig 19: Locating Seat Heater Control Connector
      G05631629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the seat heater connector and attach the 2 wire harness clamps.
      Fig 20: Locating Seat Heater Connector
      G05631628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the 2 clips.
    Fig 21: Identifying Seat Cushion Cover Clips
    G05631627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL FRONT POWER SEAT SWITCH LH
    1. Install the switch with the 3 screws.
    2. for Driver Side: Connect the 2 connectors.
    3. for Front Passenger Side: Connect the connector.
    Fig 22: Identifying Front Power Seat Switch Screws
    G05631626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL FRONT INNER SEAT CUSHION SHIELD LH
    1. Attach the 2 claws and clip to install the cushion shield.
    2. Install the screw.
  24. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH  (See INSTALLATION )
    Fig 23: Identifying Front Inner Seat Cushion Shield Claws
    G05631625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL LUMBAR SWITCH (Driver Side)
    1. Install the power seat lumbar switch with the 2 screws.
    Fig 24: Identifying Lumbar Switch Screws
    G05631624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL FRONT INNER NO. 1 SEAT CUSHION SHIELD LH
    1. Attach the claw to install the cushion shield.
    2. Install the screw.
    Fig 25: Identifying Front Inner Seat Cushion Shield Claw
    G05631623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL FRONT SEAT CUSHION SHIELD LH
    1. for Driver Side:

      Connect the lumbar switch connectors.

    2. Attach the 2 claws to install the cushion shield.
    3. Install the 3 screws.
      Fig 26: Identifying Front Seat Cushion Shield Screws
      G05631622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the 2 screws.
    5. Attach the 2 rubber bands to the hooks.
    Fig 27: Locating Rubber Bands
    G05631621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL RECLINING POWER SEAT SWITCH KNOB
    1. Attach the 2 claws to install the knob.
    Fig 28: Identifying Reclining Power Seat Switch Knob Claws
    G05631676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
    1. Attach the 2 claws to install the knob.
