Multi-display Communication Error: Wiring Diagram

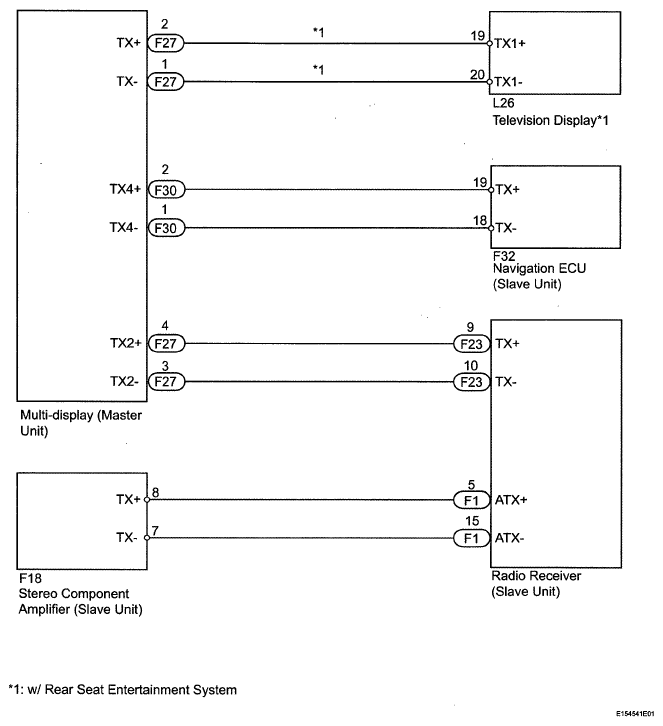

Fig 1: Stereo Component Amplifier & Radio Receiver - Wiring Diagram

G05630180

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
