MULTI-DISPLAY (w/Navigation System): Components

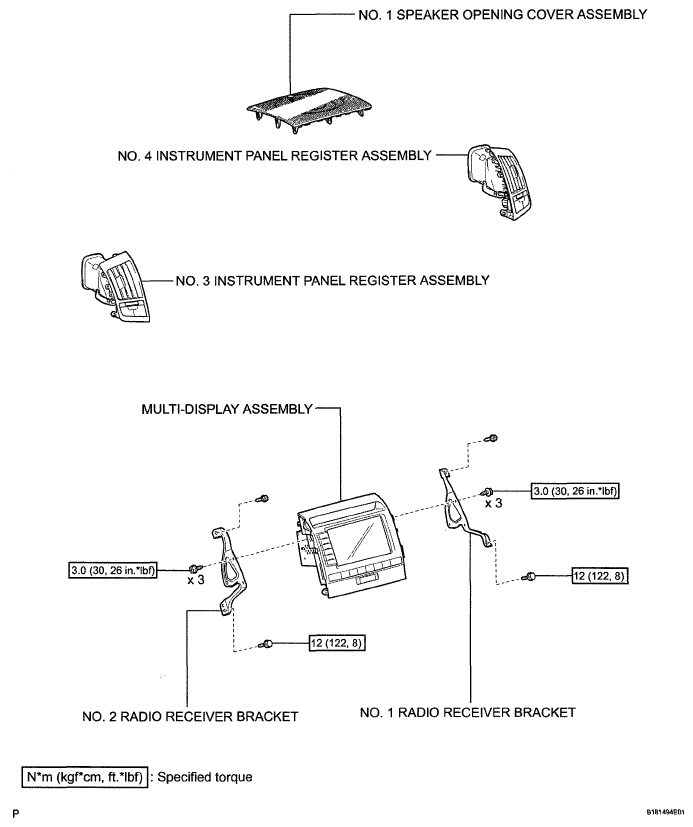

Fig 1: Multi-Display (w/Navigation System) Replacement Components

G05630804

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
