Home >> Toyota >> 2009 >> Land Cruiser >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio/Visual >> Instrument Panel Speaker >> Components

Instrument Panel Speaker: Components

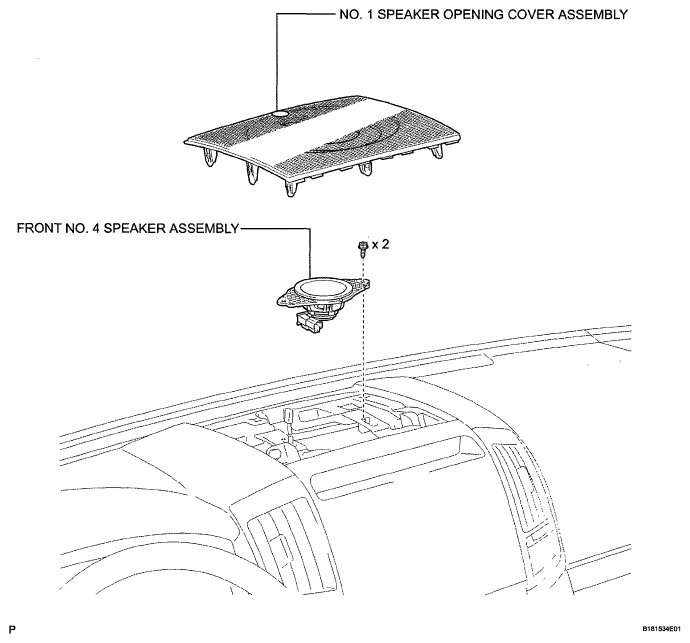

Fig 1: Identifying Instrument Panel Speaker Replacement Components (1 Of 2)
G05630514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

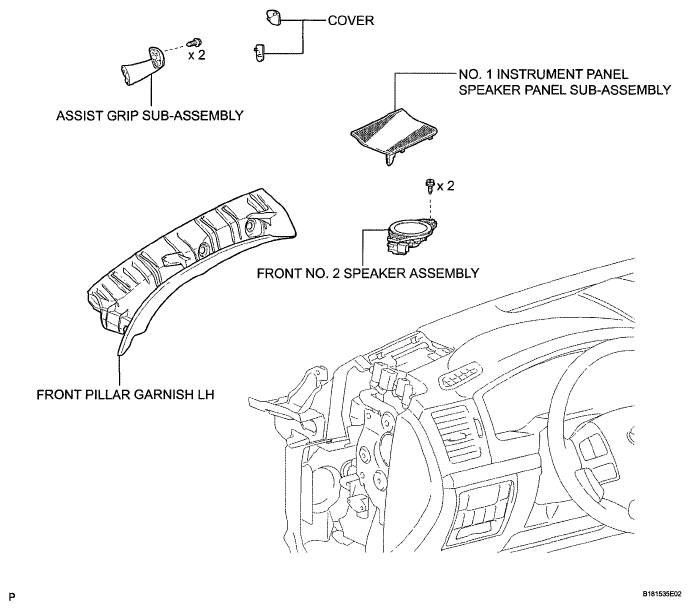

Fig 2: Identifying Instrument Panel Speaker Replacement Components (2 Of 2)
G05630515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
