Network Gateway Ecu: Components

Fig 1: Network Gateway ECU Replacements Replacement Components With Torque Specifications (1 Of 2)
G05639635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

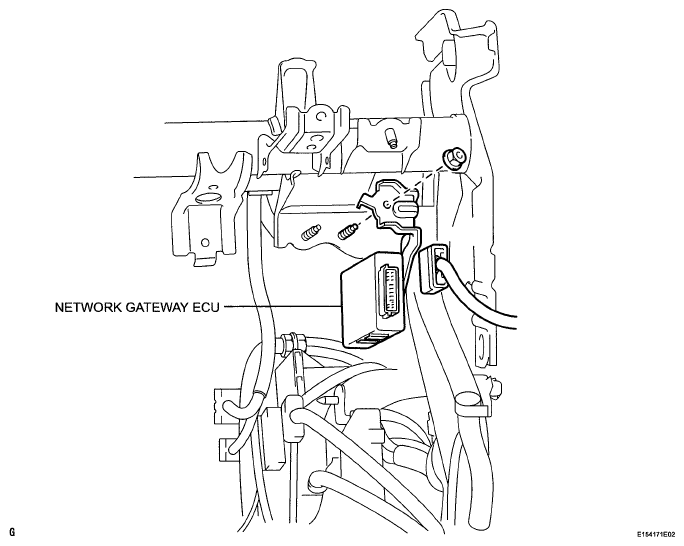

Fig 2: Network Gateway ECU Replacements Replacement Components With Torque Specifications (2 Of 2)
G05639636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
