Home >> Toyota >> 2009 >> Land Cruiser >> Repair and Diagnosis (Single Page) >> Transmission >> Automatic Transmission - Ab60F >> Speed Sensor >> Components

Speed Sensor: Components

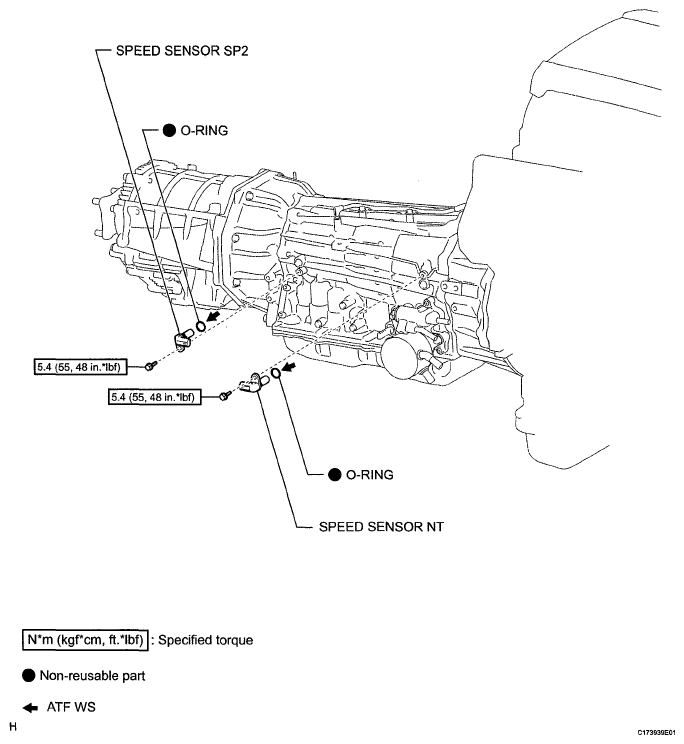

Fig 1: Speed Sensor Replacement Components With Torque Specifications

G05629075

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
