Parts Location

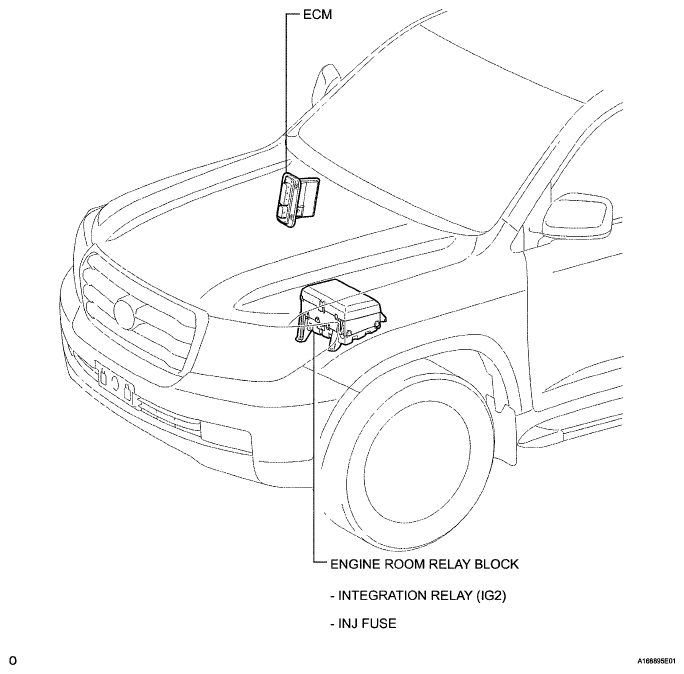

Fig 1: Identifying Ignition System Components Location (1 Of 2)
G05628198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

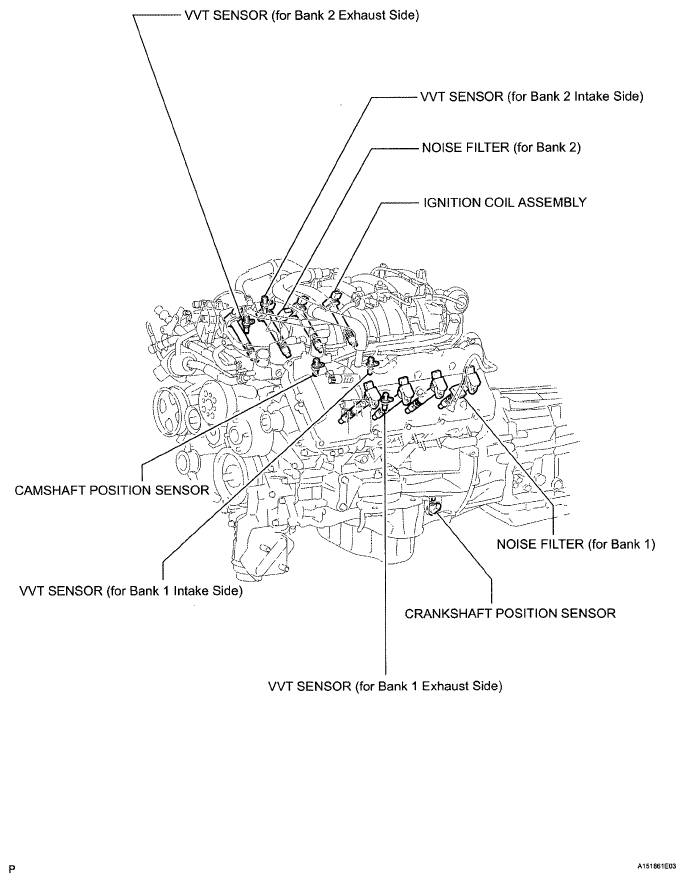

Fig 2: Identifying Ignition System Components Location (2 Of 2)
G05628199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
