Cool Box: Notes

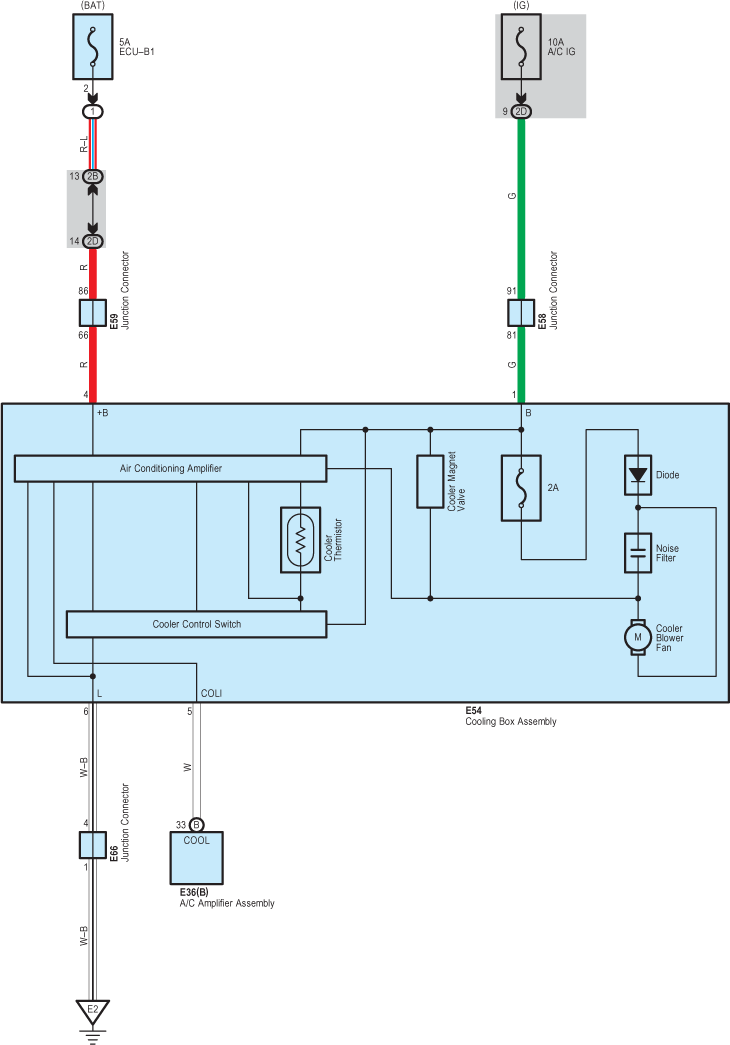

Fig 1: Cool Box - Circuit Diagram

G07623917

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
