Fuel Tank: Installation

  1. INSTALL FUEL TANK CUSHION SET
    1. Install the fuel tank cushion sets and No. 5 fuel tank cushions.
    Fig 1: Identifying Fuel Tank Cushion Sets And No. 5 Fuel Tank Cushions
    G05414881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FUEL TANK SIDE PLATE
    1. Install the fuel tank side plate and the fuel tank bracket with the bolt and nut.

      Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

      Fig 2: Identifying Fuel Tank Side Plate, Fuel Tank Bracket With Bolt And Nut
      G05414880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL TANK SUCTION TUBE SUPPORT
    1. Install a new tank suction tube support as shown in the illustration.

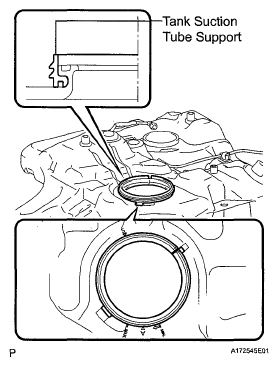

    Fig 3: Identifying Tank Suction Tube Support
    G05414884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FUEL TANK OVER FILL CHECK VALVE ASSEMBLY
    1. Install a new tank suction tube support and new gasket as shown in the illustration.

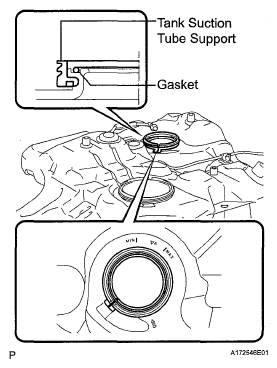

      Fig 4: Identifying Tank Suction Tube Support And Gasket
      G05414885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the fuel tank over fill check valve assembly to the fuel tank.
    3. Align the keyway of the fuel suction tube support with the key of the fuel tank over fill check valve assembly.
      Fig 5: Identifying Keyway Of Fuel Suction Tube Support
      G05414886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Align the triangle mark on a new fuel pump gauge retainer with the "S" mark, and attach the fuel pump gauge retainer.
      Fig 6: Identifying Triangle Mark And S Marks
      G05414887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a 6 mm socket hexagon wrench, install SST to the fuel pump gauge retainer.

      SST 09808-14020 (09808-01410, 09808-01420, 09808-01430)

      HINT:

      • Engage the SST claws securely with the fuel pump gauge retainer ribs to secure SST.
      • Install SST while pressing the SST claws toward the fuel pump gauge retainer (toward the center of SST).

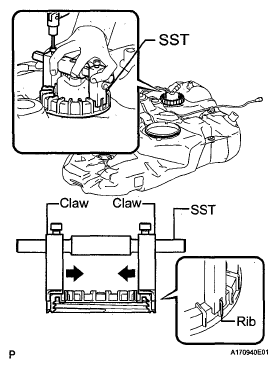

      Fig 7: Installing SST To Fuel Pump Gauge Retainer
      G05414875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Rotate the fuel pump gauge retainer by hand, then tighten it one complete turn and another half turn using SST. The triangle mark on the fuel pump gauge retainer must be positioned between the "MIN" and "MAX" marks on the fuel tank.

      SST 09808-14020 (09808-01410, 09808-01420, 09808-01430)

      NOTE:
      • Do not use any tools other than specified in this operation. Damage to the fuel pump gauge retainer or the fuel tank may result.
      • Fully tighten the retainer by turning it clockwise while holding SST down. Do not allow the claw of the tank suction tube support to slip out of its groove on the fuel tank.

      HINT:

      The ribs on the fuel pump gauge retainer can be fitted into the tips of SST.

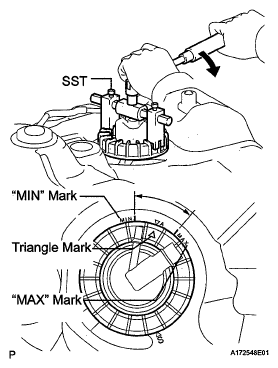

      Fig 8: Rotating Fuel Pump Gauge Retainer
      G05414889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FUEL TANK VENT HOSE
    1. Connect the No. 1 evaporation vent tube.
      1. Align the axis of the connector with the axis of the pipe. Push the pipe into the connector until the connector makes a click sound. If the connection is too tight, apply a small amount of fresh engine oil to the tip of the pipe.
        NOTE:
        • Check for damage or foreign objects on the parts that are to be connected.
        • After connecting, check that the fuel tube connector and the pipe are securely connected by pulling on them.
        Fig 9: Connecting No. 1 Evaporation Vent Tube
        G05414890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the fuel tank vent hose.
      1. Align the axis of the connector with the axis of the pipe. Push the pipe into the connector until the connector makes a click sound. If the connection is too tight, apply a small amount of fresh engine oil to the tip of the pipe.
        NOTE:
        • Check for damage or foreign objects on the parts that are to be connected.
        • After connecting, check that the fuel tube connector and the pipe are securely connected by pulling on them.
      2. Install the fuel tank vent hose, and engage the claw.
      Fig 10: Connecting Fuel Tank Vent Hose
      G05414891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FUEL TANK TO FILLER PIPE HOSE
    1. Install the fuel tank to filler pipe hose with the hose clamp.
    Fig 11: Locating Hose Clamp Bolt
    G05414872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL FUEL PUMP TUBE SUB-ASSEMBLY
    1. Install the fuel pump tube, and engage the 2 claws.
    Fig 12: Identifying Fuel Pump Tube And Claws
    G05414871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL NO. 1 FUEL TANK CUSHION
    1. Apply new butyl tape to the positions of the No. 1 fuel tank cushion as shown in the illustration.

      Length

      LENGTH SPECIFICATIONS

      Dimension Length
      A 55 mm (2.17 in.)
      B 20 mm (0.79 in.)
      C 60 mm (2.36 in.)
      D 20 mm (0.79 in.)
      E 80 mm (3.15 in.)
      F 20 mm (0.79 in.)
      G 53.4 mm (2.10 in.)
      H 49.2 mm (1.94 in.)
      I 18.9 mm (0.74 in.)
      J 43.3 mm (1.70 in.)
    2. Install the No. 1 fuel tank cushion.
    Fig 13: Identifying No. 1 Fuel Tank Cushion
    G05414894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL REAR FUEL TANK SIDE PLATE
    1. Install the rear fuel tank side plate.
  10. INSTALL FUEL TANK ASSEMBLY
    1. Set the fuel tank onto a transmission jack.
    2. Operating the transmission jack, install the fuel tank.
      Fig 14: Identifying Rear Fuel Tank Side Plate
      G05414869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Tighten the 2 nuts.

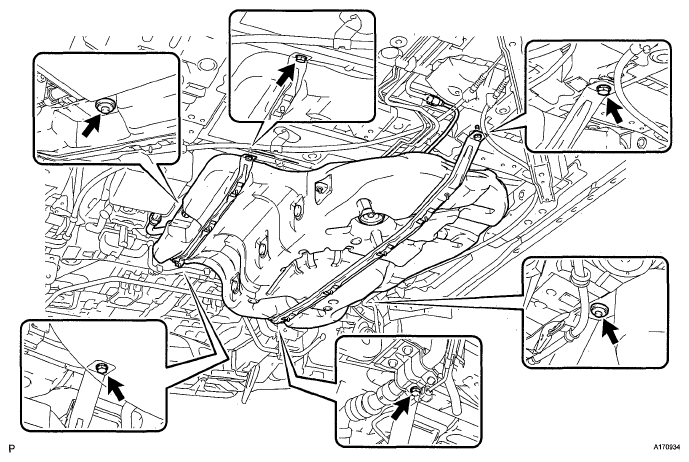

      Fig 15: Locating Fuel Tank Bolts
      G05414868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 20 N*m (200 kgf*cm, 14 ft.*lbf)

    4. Install the 2 fuel tank bands with the 4 bolts.

      Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

    5. Align the matchmarks and install the fuel tank to filler pipe hose to the fuel tank.
    6. Install the hose clamp within the range shown in the illustration.

      HINT:

      • A = 45°
      • B = 120°

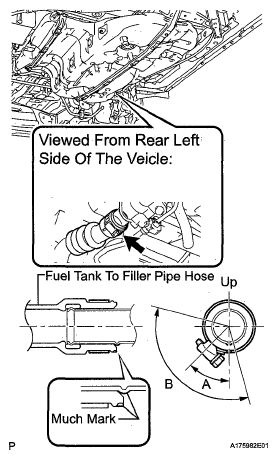

      Fig 16: Identifying Hose Clamp Direction
      G05414897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Connect the fuel tank vent hose.
      1. Align the quick connector with the pipe, then push in the quick connector until the retainer makes a click sound to connect the charcoal canister fuel hose to the charcoal canister assembly.
        NOTE:
        • Check that there are no scratches or foreign objects around the connected part of the quick connector and pipe before this work.
        • After connecting the charcoal canister fuel hose, check if the quick connector and the pipe are securely connected by pulling on them.

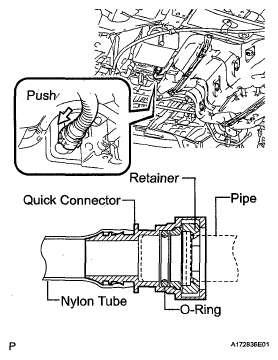

        Fig 17: Connecting Fuel Tank Vent Hose
        G05414898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Connect the No. 3 fuel tank breather tube.
      1. Push the quick connector to the pipe until it makes a click sound.
        NOTE:
        • Check if there is any damage or foreign objects on the connected part.
        • After connecting, check if the quick connector and the pipe are securely connected by pulling on them.

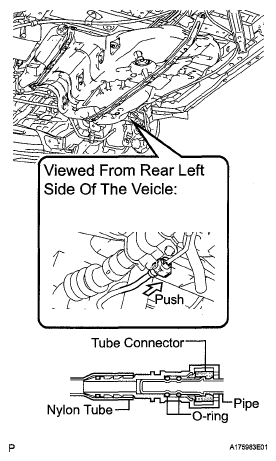

        Fig 18: Connecting No. 3 Fuel Tank Breather Tube
        G05414899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Connect the fuel pump tube.
      1. Push the quick connector and push in the retainer to lock the claws.
        NOTE:
        • Check if there is any damage or foreign objects on the connected part.
        • After connecting, check if the quick connector and the pipe are securely connected by pulling on them.

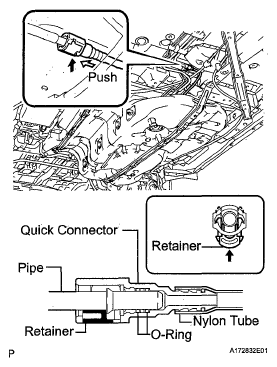

        Fig 19: Connecting Fuel Pump Tube
        G05414900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY
    1. Install the No. 1 fuel tank protector sub-assembly with the 7 nuts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    2. Install 3 new clips (A).
  12. TEMPORARILY INSTALL REAR SUSPENSION MEMBER (for 4WD)  (See INSTALLATION )
  13. FULLY TIGHTEN REAR SUSPENSION MEMBER (for 4WD)  (See INSTALLATION )
    Fig 20: Locating No. 1 Fuel Tank Protector Sub-Assembly And Nuts
    G05414863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL REAR DRIVE SHAFT SNAP RING LH (for 4WD)
  15. INSTALL REAR DRIVE SHAFT ASSEMBLY LH (for 4WD)
  16. INSTALL REAR DRIVE SHAFT SNAP RING RH (for 4WD)  (See INSTALLATION )
  17. INSTALL REAR DRIVE SHAFT ASSEMBLY RH (for 4WD)  (See INSTALLATION )
  18. INSTALL REAR DIFFERENTIAL DRAIN PLUG (for 4WD)  (See INSTALLATION )
  19. ADD DIFFERENTIAL OIL (for 4WD)  (See INSTALLATION )
  20. INSPECT DIFFERENTIAL OIL (for 4WD)
  21. INSTALL REAR DIFFERENTIAL FILLER PLUG (for 4WD)  (See INSTALLATION )
  22. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY RH (for 4WD)  (See INSTALLATION )
  23. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY LH (for 4WD)  (See INSTALLATION )
  24. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY RH (for 4WD)  (See INSTALLATION )
  25. INSTALL REAR AXLE CARRIER SUB-ASSEMBLY LH (for 4WD)  (See INSTALLATION )
  26. INSTALL REAR AXLE CARRIER SUB-ASSEMBLY RH (for 4WD)  (See INSTALLATION )
  27. TEMPORARILY INSTALL REAR STRUT ROD ASSEMBLY LH (for 4WD)  (See INSTALLATION )
  28. TEMPORARILY INSTALL REAR STRUT ROD ASSEMBLY RH (for 4WD)  (See INSTALLATION )
  29. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY LH (for 4WD)  (See INSTALLATION )
  30. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY RH (for 4WD)  (See INSTALLATION )
  31. INSTALL REAR DISC (for 4WD LH Side)
  32. INSTALL REAR DISC (for 4WD RH Side)
  33. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH (for 4WD)  (See REPLACEMENT )
  34. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY RH (for 4WD)  (See INSTALLATION )
  35. TEMPORARILY INSTALL REAR AXLE SHAFT NUT LH (for 4WD)  (See INSTALLATION )
  36. TEMPORARILY INSTALL REAR AXLE SHAFT NUT RH (for 4WD)  (See INSTALLATION )
  37. INSTALL REAR SPEED SENSOR LH (for 4WD)  (See INSTALLATION )
  38. INSTALL REAR SPEED SENSOR RH (for 4WD)  (See INSTALLATION )
  39. STABILIZE SUSPENSION (for 4WD)  (See INSTALLATION )
  40. FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY LH (for 4WD)  (See INSTALLATION )
  41. FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY RH (for 4WD)  (See INSTALLATION )
  42. FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY LH (for 4WD)  (See INSTALLATION )
  43. FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY RH (for 4WD)  (See INSTALLATION )
  44. FULLY TIGHTEN REAR STRUT ROD ASSEMBLY LH (for 4WD)  (See INSTALLATION )
  45. FULLY TIGHTEN REAR STRUT ROD ASSEMBLY RH (for 4WD)  (See INSTALLATION )
  46. INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY (for 4WD)  (See INSTALLATION )
  47. INSTALL NO. 2 PARKING BRAKE CABLE ASSEMBLY (for 4WD)  (See INSTALLATION )
  48. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY LH (for 4WD)  (See REPLACEMENT )
  49. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY RH (for 4WD)  (See INSTALLATION )
  50. REMOVE REAR DISC (for 4WD LH Side)
  51. REMOVE REAR DISC (for 4WD RH Side)
  52. INSPECT REAR AXLE HUB BEARING LOOSENESS (for 4WD LH Side)  (See ON-VEHICLE INSPECTION )
  53. INSPECT REAR AXLE HUB BEARING LOOSENESS (for 4WD RH Side)  (See INSTALLATION )
  54. INSPECT REAR AXLE HUB RUNOUT (for 4WD LH Side)  (See ON-VEHICLE INSPECTION )
  55. INSPECT REAR AXLE HUB RUNOUT (for 4WD RH Side)  (See INSTALLATION )
  56. INSTALL REAR DISC (for 4WD LH Side)
  57. INSTALL REAR DISC (for 4WD RH Side)
  58. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH (for 4WD)  (See REPLACEMENT )
  59. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY RH (for 4WD)  (See INSTALLATION )
  60. INSTALL REAR AXLE SHAFT NUT LH (for 4WD)  (See INSTALLATION )
  61. INSTALL REAR AXLE SHAFT NUT RH (for 4WD)  (See INSTALLATION )
  62. INSTALL REAR WHEELS (for 4WD)
  63. INSTALL NO. 3 FRONT FLOOR HEAT INSULATOR  (See INSTALLATION )
  64. INSTALL NO. 4 EXHAUST PIPE SUPPORT BRACKET
    1. Install the No. 4 exhaust pipe support bracket with the 2 bolts.

      Torque: 22 N*m (224 kgf*cm, 16 ft.*lbf)

  65. INSTALL CENTER EXHAUST PIPE ASSEMBLY  (See INSTALLATION )
  66. INSTALL TAIL EXHAUST PIPE ASSEMBLY  (See INSTALLATION )
  67. TEMPORARILY TIGHTEN PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for 4WD)  (See INSTALLATION )
    Fig 21: Locating Bolts And No. 4 Exhaust Pipe Support Bracket
    G05414862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  68. FULLY TIGHTEN PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for 4WD)  (See INSTALLATION )
  69. INSTALL FRONT CENTER FLOOR COVER  (See INSTALLATION )
  70. INSTALL FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE  (See INSTALLATION )
  71. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  72. INSPECT FOR FUEL LEAK  (See ON-VEHICLE INSPECTION )
  73. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL  (See REMOVAL )
  74. INSTALL REAR FLOOR SERVICE HOLE COVER  (See FUEL PUMP RESISTOR )
  75. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH  (See INSTALLATION )
  76. INSTALL REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH  (See INSTALLATION )
  77. INSTALL FRONT DECK SIDE TRIM COVER LH  (See INSTALLATION )
  78. INSTALL NO. 2 DECK SIDE TRIM HOOK  (See INSTALLATION )
  79. INSTALL ROPE HOOK ASSEMBLY (for LH Side)  (See INSTALLATION )
  80. INSTALL REAR DECK TRIM COVER (w/o Remote Folding Function)  (See INSTALLATION )
  81. INSTALL RECLINING REMOTE CONTROL LEVER BEZEL LH (w/ Remote Folding Function)  (See INSTALLATION )
  82. INSTALL REAR POWER OUTLET SOCKET COVER  (See INSTALLATION )
  83. INSTALL REAR POWER POINT SOCKET ASSEMBLY  (See INSTALLATION )
  84. INSTALL REAR COMBINATION LIGHT SERVICE COVER LH  (See INSTALLATION )
  85. INSTALL SIDE TRIM COVER LH (w/o Rear Seat Entertainment System)  (See INSTALLATION )
  86. INSTALL POWER OUTLET SOCKET BEZEL (w/ Rear Seat Entertainment System)  (See INSTALLATION )
  87. INSTALL DECK SIDE TRIM COVER LH  (See INSTALLATION )
  88. INSTALL DECK SIDE TRIM COVER LH  (See INSTALLATION )
  89. INSTALL REAR FLOOR FINISH PLATE  (See INSTALLATION )
  90. INSTALL REAR NO. 2 SEAT ASSEMBLY (w/ Rear No. 2 Seat)  (See INSTALLATION )
  91. CONNECT REAR SEAT LAP TYPE BELT ASSEMBLY LH  (See INSTALLATION )
  92. CONNECT REAR SEAT LAP TYPE BELT ASSEMBLY RH (w/ Rear No. 2 Seat)  (See INSTALLATION )
  93. INSTALL REAR NO. 2 SEAT INNER BELT ASSEMBLY (w/ Rear No. 2 Seat)  (See INSTALLATION )
  94. INSTALL REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)  (See INSTALLATION )
  95. INSTALL DECK FLOOR BOARD ASSEMBLY (w/o Rear No. 2 Seat)  (See INSTALLATION )
  96. INSTALL REAR MAT  (See INSTALLATION )
  97. INSTALL DECK FLOOR BOARD ASSEMBLY  (See INSTALLATION )
  98. INSTALL DECK SIDE TRIM BOX LH  (See INSTALLATION )
  99. INSTALL REAR SEAT SIDE COVER LH (w/ Rear No. 2 Seat)  (See INSTALLATION )
  100. INSTALL DECK SIDE TRIM BOX RH  (See INSTALLATION )
  101. INSTALL JACK CARRIER ASSEMBLY  (See INSTALLATION )
  102. INSTALL JACK ASSEMBLY  (See INSTALLATION )
  103. INSTALL JACK CARRIER CUSHION  (See INSTALLATION )
  104. INSTALL JACK CARRIER SUPPORT
  105. INSTALL REAR SEAT SIDE COVER RH (w/ Rear No. 2 Seat)  (See INSTALLATION )
  106. INSTALL REAR NO. 1 FLOOR BOARD (w/o Rear No. 2 Seat)  (See INSTALLATION )
  107. INSTALL TONNEAU COVER ASSEMBLY
  108. INSTALL NO. 2 DECK BOARD SUB-ASSEMBLY  (See INSTALLATION )
  109. INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY  (See INSTALLATION )
  110. INSTALL DECK BOARD ASSEMBLY  (See INSTALLATION )
  111. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH  (See INSTALLATION )
  112. INSTALL REAR DOOR SCUFF PLATE LH  (See INSTALLATION )
  113. INSTALL REAR NO. 1 SEAT ASSEMBLY RH  (See INSTALLATION )
  114. CONNECT REAR NO. 1 SEAT LOCK CABLE ASSEMBLY (w/ Remote Folding Function)  (See INSTALLATION )
  115. INSPECT REAR NO. 1 SEAT LOCK CABLE ASSEMBLY (for RH Side)  (See INSTALLATION )
  116. INSTALL REAR SEAT LEG SIDE COVER RH  (See INSTALLATION )
  117. INSTALL REAR INNER TRACK BRACKET COVER RH  (See INSTALLATION )
  118. INSTALL REAR OUTER TRACK BRACKET COVER RH  (See INSTALLATION )
  119. INSTALL SEAT TRACK BRACKET COVER RH  (See INSTALLATION )
  120. INSTALL REAR SEAT HEADREST ASSEMBLY (for RH Side)
  121. INSTALL REAR NO. 1 SEAT ASSEMBLY LH  (See INSTALLATION )
  122. INSTALL REAR NO. 1 SEAT LOCK CABLE ASSEMBLY (w/ Remote Folding Function)  (See INSTALLATION )
  123. INSPECT REAR SEAT SLIDE ADJUSTER LOCK (for LH Side)  (See INSTALLATION )
  124. INSTALL REAR SEAT LEG SIDE COVER LH  (See INSTALLATION )
  125. INSTALL REAR INNER SEAT TRACK BRACKET COVER LH  (See INSTALLATION )
  126. INSTALL REAR OUTER TRACK BRACKET COVER LH  (See INSTALLATION )
  127. INSTALL SEAT TRACK BRACKET COVER LH  (See INSTALLATION )
  128. INSTALL REAR SEAT HEADREST ASSEMBLY (for LH Side)
  129. INSTALL REAR CENTER SEAT ASSEMBLY
  130. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL  (See INSTALLATION )
  131. INSPECT SRS WARNING LIGHT  (See INSTALLATION )
  132. INSPECT EXHAUST GAS LEAK  (See INSTALLATION )
  133. INSPECT AND ADJUST TRANSFER OIL (for 4WD)  (See TRANSFER OIL )
  134. INSPECT REAR WHEEL ALIGNMENT (for 4WD)  (See INSTALLATION )
  135. CHECK FOR SPEED SENSOR SIGNAL (for 4WD)  (See INSTALLATION )
scientia non olet · About LEMON Manuals
