Toyota
>>
2009
>>
Highlander Limited, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System (2GR-FE) - System And Component Testing, Removal, Inspection And Installation
>>
MIL Circuit
>>
Wiring Diagram
MIL Circuit: Wiring Diagram

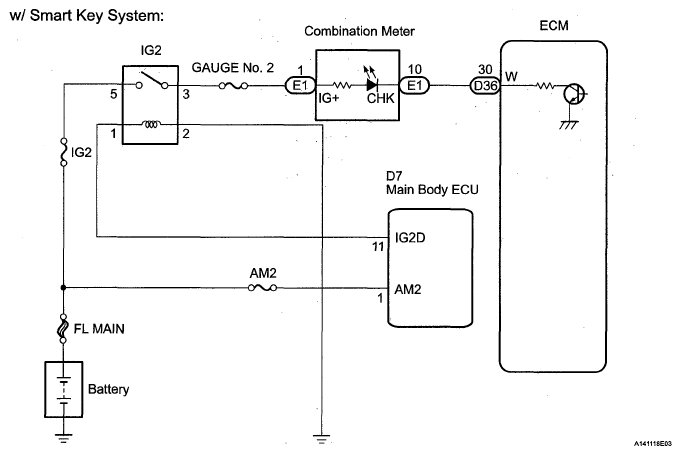

Fig 1: MIL - Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

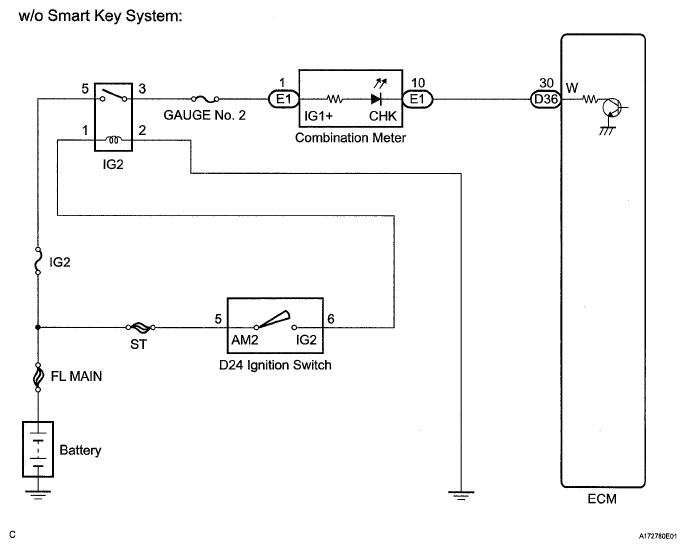

Fig 2: MIL - Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
