Parts Location

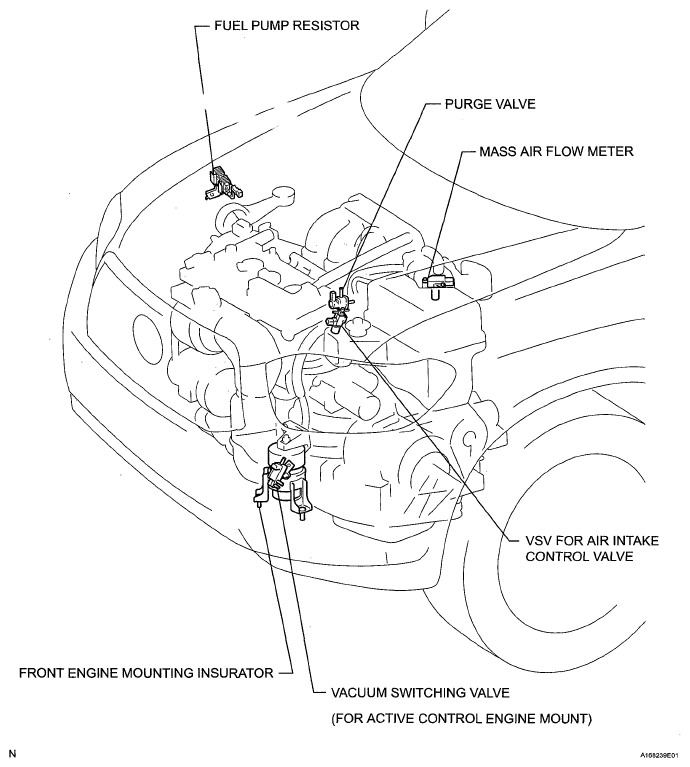

Fig 1: Identifying SFI System Parts Location (1 Of 5)
G05413569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

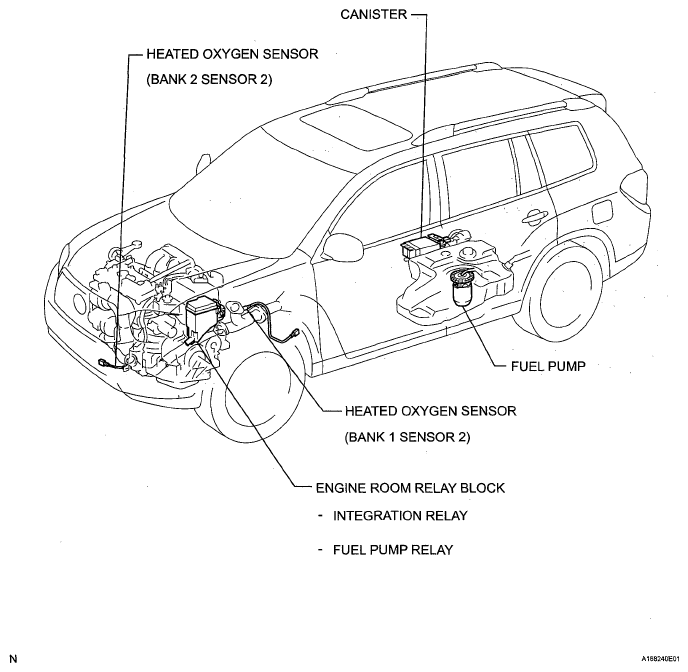

Fig 2: Identifying SFI System Parts Location (2 Of 5)
G05413570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

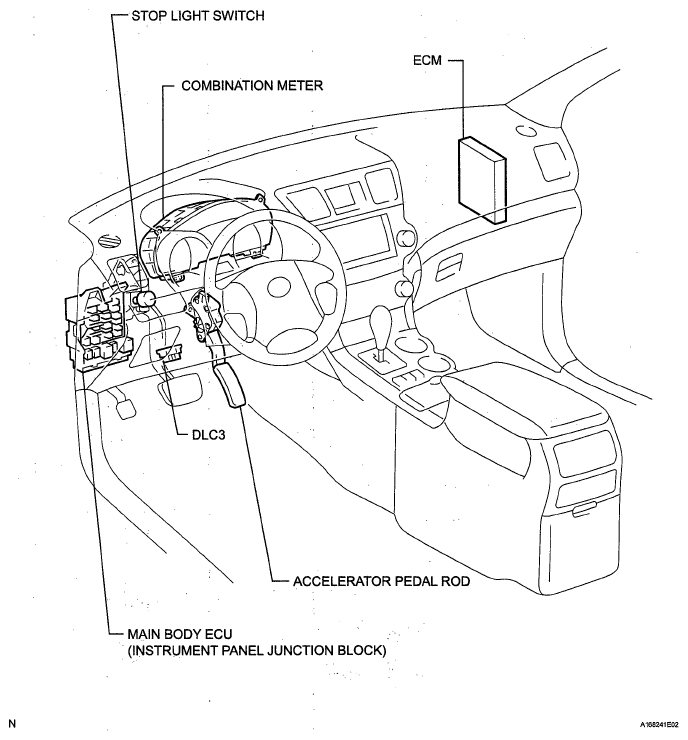

Fig 3: Identifying SFI System Parts Location (3 Of 5)
G05413571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

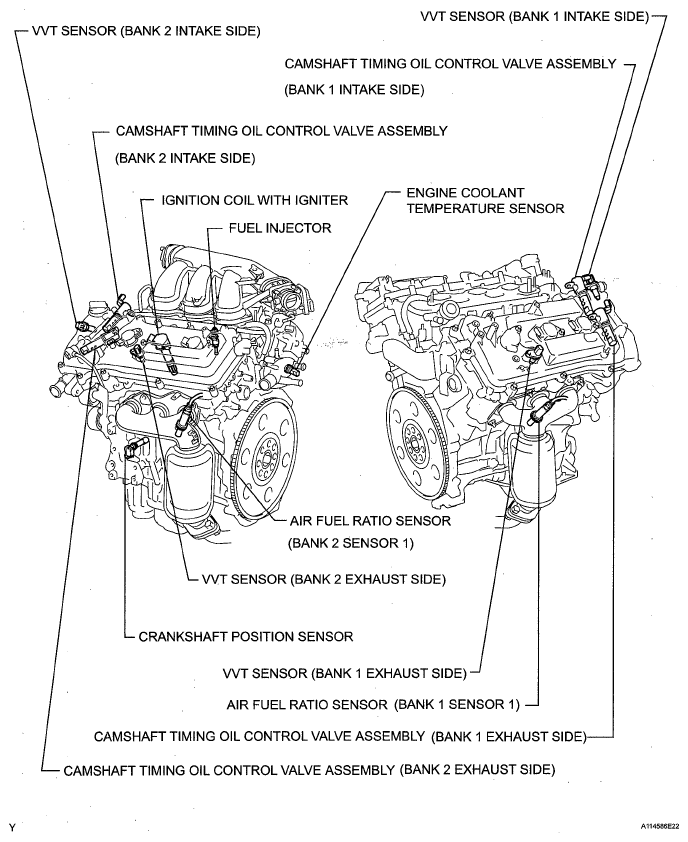

Fig 4: Identifying SFI System Parts Location (4 Of 5)
G05413572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

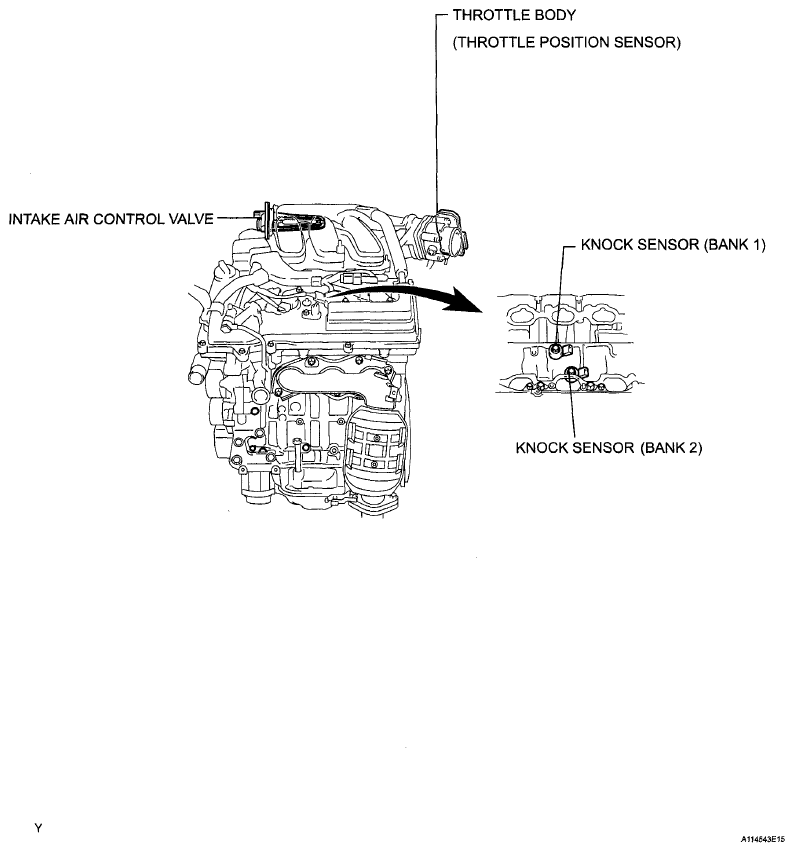

Fig 5: Identifying SFI System Parts Location (5 Of 5)
G06111361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
