Fuel Tank: Components

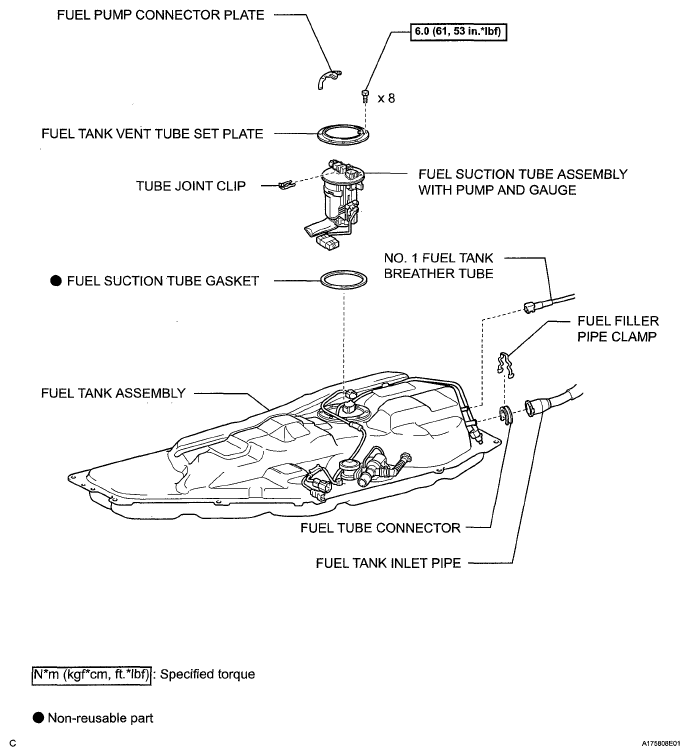

Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 3)
G05639834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

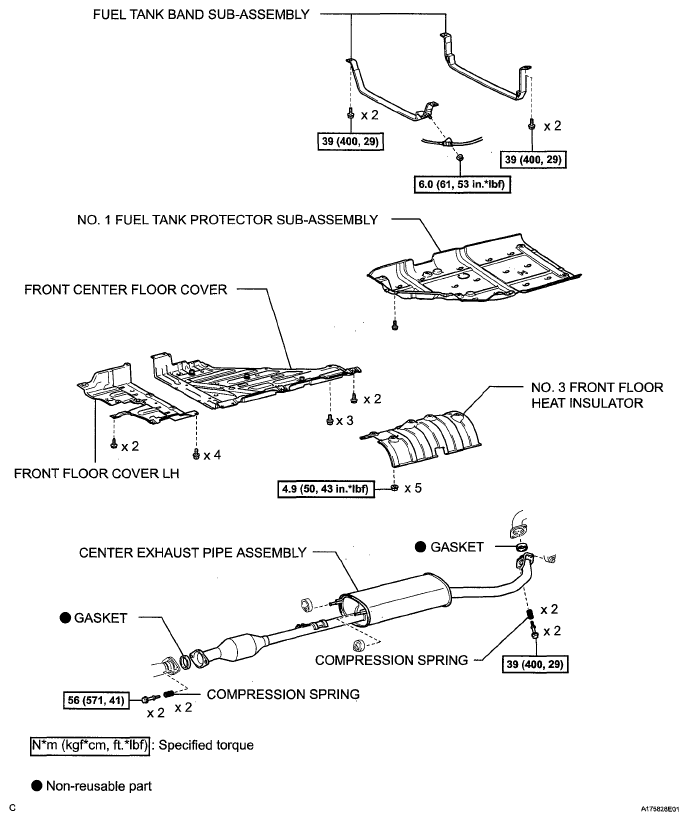

Fig 2: Fuel Pump Replacement Components With Torque Specifications (2 Of 3)
G05639835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

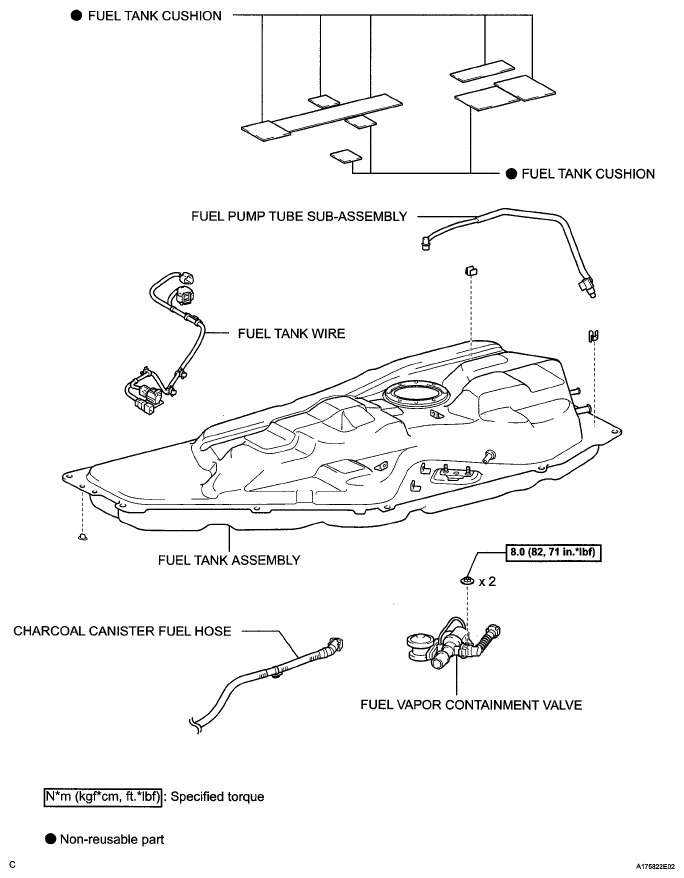

Fig 3: Fuel Tank Replacement Components With Torque Specifications (3 Of 3)
G05639875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
