Front Speed Sensor: Components

Fig 1: Identifying Front Speed Sensor Replacement Components (1 Of 3)
G05642081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Front Speed Sensor Replacement Components (2 Of 3)
G05642082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

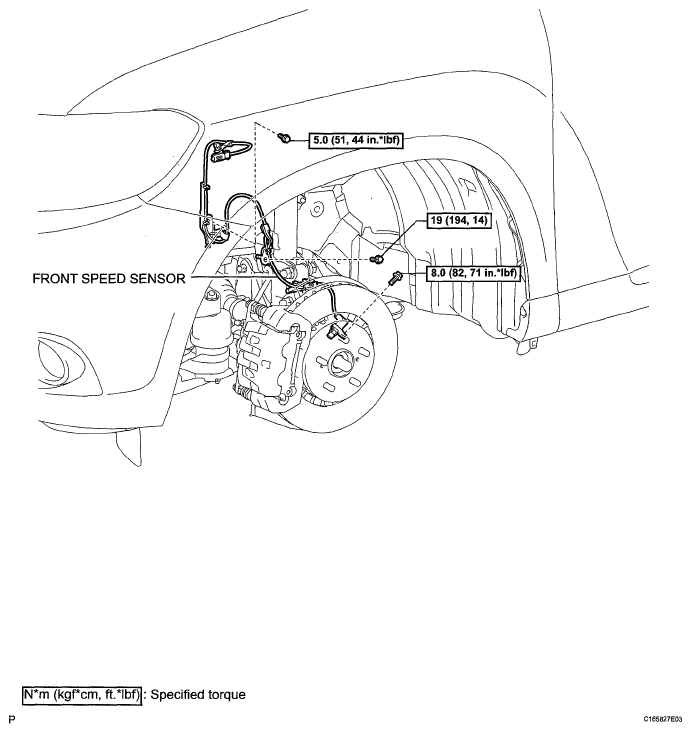

Fig 3: Front Speed Sensor Replacement Components With Torque Specifications (3 Of 3)
G05642083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
