Repair Instruction: Initialization

  1. PROCEDURES NECESSARY WHEN BATTERY TERMINAL IS DISCONNECTED/RECONNECTED
    INITIALIZATION PROCEDURE

    Necessary Procedure Procedure Detail Effect / Inoperative Functions When Necessary Procedures are not Performed Note
    Idle speed control learning Perform initialization (See INITIALIZATION ) - Perform the initialization using Techstream.
    Reset back door close position Fully close the back door to turn off the courtesy switch. Power back door function If the back door is closed when disconnecting the cable from the battery terminal, it is not necessary to reset it.
    NOTE: It may not be possible to release the steering lock or start the hybrid system when the battery voltage is low. If this occurs, initialization of the steering lock system is required. (See INITIALIZATION )
  2. PROCEDURES NECESSARY WHEN ECU OR OTHER PARTS ARE REPLACED
    INITIALIZATION PROCEDURE

    Replacement Part Necessary Procedure Effect / Inoperative Function when Necessary Procedures are not Performed Note
    Hybrid vehicle control ECU ECU communication ID registration
    • Wireless door lock control system
    • Smart key system
    • Starting of hybrid system
    		 -
    Vehicle Identification Number (VIN) registration MIL comes on Use the Techstream.
    Idle speed control learning (Perform initialization) - Use the Techstream.
    Tire pressure warning ECU Register transmitter IDs
    • When DTC detection conditions of "transmitter ID not received" DTC are met, TPWS indicator blinks for 1 minute, and then illuminates.
    • Tire pressure monitoring function
    		 -
    Tire pressure warning valve and transmitter Register transmitter IDs
    • When DTC detection conditions of "transmitter ID not received" DTC are met, TPWS indicator blinks for 1 minute, and then illuminates.
    • Tire pressure monitoring function of replaced wheel
    		 Even if only one transmitter is replaced, IDs for all 4 or 5 wheels must be registered.
    Skid control ECU
    1. Bleed air
    2. Initialization of linear solenoid valve and calibration
    3. Yaw rate and acceleration sensor zero point calibration
    • Brake warning light / yellow (minor malfunction) illumination
    • ABS warning light illumination
    • Master caution indicator light illumination
    • VSC disabled or malfunctioning
    		 Perform yaw rate and acceleration sensor zero point calibration with the power switch on (IG).
    Brake actuator assembly
    1. Clearing Stored value of linear solenoid valve and calibration data
    2. Initialization of linear solenoid valve and calibration
    		 Brakes do not operate properly -
    • Brake pedal stroke sensor
    • Brake pedal
    1. Inspection and adjustment of brake pedal height
    2. Clearing stored value of linear solenoid valve and calibration data
    3. Initialization of linear solenoid valve and calibration
    • Brake warning light / yellow - (minor malfunction) illumination
    • ABS warning light illumination
    • Master caution indicator light illumination
    		 -
    Yaw rate and acceleration sensor
    1. Clearing zero point calibration data
    2. Yaw rate and acceleration sensor zero point calibration
    • Brake warning light / yellow (minor malfunction) illumination
    • ABS warning light illumination
    • Master caution indicator light illumination
    • VSC control is prohibited or operation is incorrect
    		 Perform yaw rate and acceleration sensor zero point calibration with the power switch on (IG).
    Front wheel alignment adjustment
    1. Clearing zero point calibration data
    2. Yaw rate and acceleration sensor zero point calibration
    		 VSC does not operate properly Perform yaw rate and acceleration sensor zero point calibration with the power switch on (IG).
    Steering lock actuator (Steering lock ECU) ECU code registration Starting of hybrid system -
    • Certification ECU
    • Electrical key transmitter
    		 Key ID registration
    • Wireless door lock control system
    • Smart key system
    • Starting of hybrid system
    		 -
    ID code box
    1. ECU code registration
    2. ECU communication ID registration
    • Wireless door lock control system
    • Smart key system
    • Starting of hybrid system
    		 -
    • Power window regulator motor (Driver door)
    • Front door window regulator (Driver door)
    		 Perform power window reset (initialization of pulse sensor)
    • Automatic door glass open/ close function
    • Jam protection function
    • Operation function after power switch is turned off
    • Operation of each passenger window using power window switch at the driver door
    		 Necessary when removed and installed.
    Back door lock motor Reset back door close position Power back door function -
    • Sliding roof drive gear (Sliding roof ECU)
    • Sliding roof housing
    • Sliding roof drive cable
    		 Perform sliding roof drive gear reset
    • Automatic open/close function of roof glass
    • Jam protection function
    • Operation function after power switch is turned off
    		 Necessary when removed and installed (Not necessary when the sliding roof drive gear (sliding roof ECU) is removed and installed together with the sliding roof housing).
  3. DESCRIPTION OF CODE REGISTRATION (Engine Immobilizers System)

    HINT:

    • The ID codes are the same as recognition codes for the wireless transmitter and the engine immobilizer function. Registering an ID code enables the smart key system, the wireless door lock control function and the engine immobilizer function to be operated.
    • Code registration is necessary when the certification ECU (smart key ECU assembly), ID code box (immobilizer code ECU), steering lock ECU, or key is replaced with a new one.
    1. Vehicles with the smart key system do not have a key slot. Therefore, hold the key close to the power switch to register the key, as shown in the illustration below.

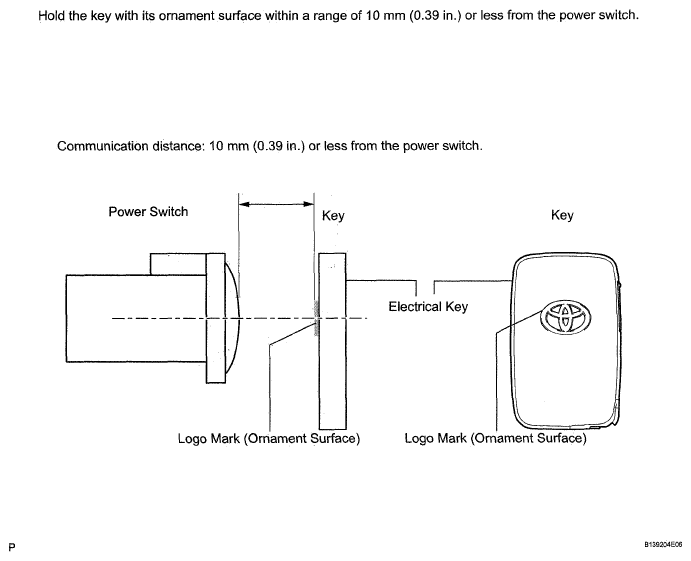

      Fig 1: Identifying Communication Distance
      G05625052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. PART REPLACEMENT AND KEY REGISTRATION (Engine Immobilizer System)
    1. The following table shows ECU replacement and key registration procedures for cases in which a malfunctioning ECU has been identified through the troubleshooting of the smart key system.

      HINT:

      • The following procedures can be performed:

        New key ID registration

        Additional key ID registration

        Key ID erasure

        All key ID erasure

        ECU code registration

      • If the customer has not brought all the registered keys, replacement of the ID code box (immobilizer code ECU) is also required.
      • A maximum of 7 keys can be registered.
    KEY REGISTRATION CHART

    Part to be replaced Condition Procedure Reference
    Certification ECU (Smart key ECU assembly) Customer has brought all keys 1. Replace certification ECU (smart key ECU assembly) -
    2. Reregister all keys (New key ID registration) PROCEDURE "B"
    Some keys are lost Key ID codes can be registered and erased 1. Erase key codes (Key ID erasure) PROCEDURE "D"
    2. Perform additional key registration procedure (Additional key ID registration) PROCEDURE "C"
    3. Replace certification ECU (smart key ECU assembly) -
    4. Reregister all keys (New key ID registration)
    HINT:
    If some keys are not registered during the above steps, they will be disabled because they cannot be registered later.    		 PROCEDURE "B"
    Key ID codes cannot be either registered or erased 1. Replace certification ECU (smart key ECU assembly) -
    2. Replace ID code box (immobilizer code ECU) -
    3. Reregister all keys (New key ID registration)
    HINT:
    If key codes cannot be erased or additional keys cannot be registered due to a malfunction in the certification ECU (smart key ECU assembly), replace the ID code box (immobilizer code ECU) and certification ECU (smart key ECU assembly). If some keys are not registered during the above steps, they will be disabled because they cannot be registered later.    		 PROCEDURE "A"
    4. ECU communication ID registration PROCEDURE "G"
    KEY REGISTRATION CHART

    Part to be replaced Condition Procedure Reference
    Certification ECU (Smart key ECU assembly) All keys are lost 1. Replace certification ECU (smart key ECU assembly) -
    2. Replace ID code box (immobilizer code ECU) -
    3. Reregister all keys (New key ID registration)
    HINT:
    If key codes cannot be erased or additional keys cannot be registered due to a malfunction in the certification ECU (smart key ECU assembly), replace the ID code box (immobilizer code ECU) and certification ECU (smart key ECU assembly). If some keys are not registered during the above steps, they will be disabled because they cannot be registered later.    		 PROCEDURE "A"
    4. ECU communication ID registration PROCEDURE "G"
    ID code box (Immobilizer code ECU) Customer has brought at least 1 key 1. Replace ID code box (immobilizer code ECU) -
    2. Register recognition codes in ECUs (ECU code registration) PROCEDURE "F"
    3. ECU communication ID registration PROCEDURE "G"
    All keys are lost 1. Replace ID code box (immobilizer code ECU) -
    2. Replace certification ECU (smart key ECU assembly) -
    3. Reregister all keys (New key ID registration)
    HINT:
    If some keys are not registered during the above steps, they will be disabled because they cannot be registered later.    		 PROCEDURE "A"
    4. ECU communication ID registration PROCEDURE "G"
    KEY REGISTRATION CHART

    Part to be replaced Condition Procedure Reference
    Steering lock ECU Customer has brought at least 1 key 1. Replace steering lock ECU -
    2. Register recognition codes in ECUs (ECU code registration) PROCEDURE "F"
    All keys are lost 1. Replace steering lock ECU -
    2. Replace certification ECU (smart key ECU assembly) -
    3. Replace ID code box (immobilizer code ECU) -
    4. Reregister all keys (New key ID registration)
    HINT:
    If some keys are not registered during the above steps, they will be disabled because they cannot be registered later.    		 PROCEDURE "A"
    5. ECU communication ID registration PROCEDURE "G"
    Main body ECU (Instrument panel junction block) No condition required Replace main body ECU (instrument panel junction block) -
    Hybrid vehicle control ECU No condition required 1. Replace hybrid vehicle control ECU -
    2. ECU communication ID registration PROCEDURE "G"
    Key (for replacement) Customer has brought at least 1 key 1. Using remaining key(s), erase lost key code (Key ID erasure) PROCEDURE "D"
    2. Register additional keys as necessary (Additional key ID registration) PROCEDURE "C"
    All keys are lost 1. Erase all key codes (All key ID erasure) PROCEDURE "E"
    2. Register all keys (New key ID registration)
    HINT:
    If the customer brings lost keys at a later date, they can be registered using the additional key ID registration function.    		 PROCEDURE "A"
    Key (for addition) Customer has brought at least 1 key
    HINT:
    When adding keys (Additional registration)    		 1. Register additional key(s) as necessary (Additional key ID registration) PROCEDURE "C"
  5. KEY REGISTRATION (Engine Immobilizer System)
    1. PROCEDURE "A"

      New key ID registration (when replacing the certification ECU (smart key ECU assembly) and ID code box (immobilizer code ECU), or when replacing the certification ECU (smart key ECU assembly), ID code box (immobilizer code ECU) and steering lock ECU)

      KEY REGISTRATION PROCEDURE A

      Process Procedure
      1. Start of registration
      1. Connect the Techstream to DLC3
      2. Turn the power switch on (IG)
      3. Select "Body Electrical / Smart Key / Utility / Smart Code Registration" from the Techstream menu
      HINT:The power switch cannot be turned on (IG) more than 10 times. After connecting the Techstream, turn the Techstream on while turning the driver's side door courtesy light switch on and off repeatedly at 1.5-second intervals or less to continue key registration procedure.
      2. Confirmation of ECU code Perform operation according to prompts on the Techstream screen
      HINT:
      Mode is automatically selected by the Techstream (new registration mode or add mode).
      3. Verification of unregistered key(1)
      1. Hold unregistered key close to power switch (For details, refer to step  3"DESCRIPTION OF CODE REGISTRATION")
      2. Confirm that wireless door lock buzzer sounds once (short beep)
      3. Place unregistered key on driver's seat
      4. Confirm that wireless door lock buzzer sounds once (short beep)
      4. Registration of ID code Perform operation according to prompts on the Techstream screen
      5. End of registration Finish new key ID code registration
      (1) Repeat this process for each key which is to be registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform the registration procedures again from process 1. Make sure that only 1 key is in the cabin during the registration procedures. If 2 or more keys are in the cabin simultaneously, electric waves will interfere with each other, preventing normal registration.
    2. PROCEDURE "B"

      New key ID registration (when replacing the certification ECU (smart key ECU assembly))

      KEY REGISTRATION PROCEDURE B

      Process Procedure
      1. Start of registration
      1. Connect the Techstream to DLC3
      2. Turn the power switch on (IG)
      3. Select "Body Electrical / Smart Key / Utility / Smart Code Registration" from the Techstream menu
      HINT:The power switch cannot be turned on (IG) more than 10 times. After connecting the Techstream, turn the Techstream on while turning the driver's side door courtesy light switch on and off repeatedly at 1.5-second intervals or less to continue key registration procedure.
      2. Confirmation of ECU code Perform operation according to prompts on the Techstream screen
      HINT:
      Mode is automatically selected by the Techstream (new registration mode or add mode).
      3. Confirmation of all registered keys(1)
      1. Hold registered key close to power switch (For details, refer to step  3"DESCRIPTION OF CODE REGISTRATION")
      2. Confirm that wireless door lock buzzer sounds once (short beep)
      4. Confirmation of ECU code Perform operation according to prompts on the Techstream screen
      5. Verification of unregistered key(2)
      1. Hold unregistered key close to power switch (For details, refer to step  3"DESCRIPTION OF CODE REGISTRATION")
      2. Confirm that wireless door lock buzzer sounds once (short beep)
      3. Place unregistered key on driver's seat
      4. Confirm that wireless door lock buzzer sounds once (short beep)
      5. Registration of ID code Perform operation according to prompts on the Techstream screen
      6. End of registration Finish new key ID code registration
      (1) Repeat this process for each key registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform the registration procedures again from process 1. If the key confirmation procedure for a key is performed, the security indicator light comes on and remains on until all the keys are confirmed.

      (2) Repeat this process for each key which is to be registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys is not finished within the specified time, perform the registration procedures again from 1. Make sure that only 1 key is in the cabin during the registration procedures. If 2 or more keys are in the cabin simultaneously, electric waves will interfere with each other, preventing normal registration.
    3. PROCEDURE "C"

      Additional key ID registration

      KEY REGISTRATION PROCEDURE C

      Process Procedure
      1. Start of registration
      1. Connect the Techstream to DLC3
      2. Turn the power switch on (IG)
      3. Select "Body Electrical / Smart Key / Utility / Smart Code Registration" from the Techstream menu
      2. Confirmation of registered key(1)
      1. Perform operation according to prompts on the Techstream screen

        HINT:

        Mode is automatically selected by the Techstream (new registration mode or add mode)

      2. Hold registered key close to power switch (For details, refer to step  3"DESCRIPTION OF CODE REGISTRATION")
      3. Confirm that wireless door lock buzzer sounds once (short beep)
      3. Confirmation of ECU code Perform operation according to prompts on the Techstream screen
      4. Verification of unregistered key(2)
      1. Hold unregistered key close to power switch (For details, refer to step  3"DESCRIPTION OF CODE REGISTRATION")
      2. Confirm that wireless door lock buzzer sounds once (short beep)
      3. Place unregistered key on driver's seat
      4. Confirm that wireless door lock buzzer sounds once (short beep)
      5. Registration of ID code Perform operation according to prompts on the Techstream screen
      6. End of registration Finish additional key ID code registration
      (1) Perform this process for one of the keys registered for the vehicle. Finish the procedure within 30 seconds. If the procedure has not been finished within the specified time, perform the registration procedures again from process 1.

      (2) Repeat this process for each key which is to be registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys is not finished within the specified time, perform the registration procedures again from 1. Make sure that only 1 key is in the cabin during the registration procedures. If 2 or more keys are in the cabin simultaneously, electric waves will interfere with each other, preventing normal registration.
    4. PROCEDURE "D"

      Key ID erasure

      HINT:

      Erase all registered key codes except one.

      KEY REGISTRATION PROCEDURE D

      Process Procedure
      1. Start of erasure
      1. Connect the Techstream to DLC3
      2. Turn the power switch on (IG)
      3. Select "Body Electrical / Smart Key / Utility / Smart Code Erasure" from the Techstream menu
      2. Confirmation of registered key(1)
      HINT:
      Select the key that will not be erased.
      1. Perform operation according to prompts on the Techstream screen
      2. Hold registered key close to power switch (For details, refer to step  3"DESCRIPTION OF CODE REGISTRATION")
      3. Confirm that wireless door lock buzzer sounds once (short beep)
      3. Confirmation of ECU code Perform operation according to prompts on the Techstream screen
      4. Erasure of ID code Perform operation according to prompts on the Techstream screen
      5. End of erasure Finish key ID code erasure
      (1) Perform this process for one of the keys registered for the vehicle. Finish the procedure within 30 seconds. If the procedure has not been finished within the specified time, perform the erasure procedures again from process 1.
    5. PROCEDURE "E"

      All key ID erasure

      HINT:

      All the key codes registered in the vehicle are erased.

      KEY REGISTRATION PROCEDURE E

      Process Procedure
      1. Start of erasure
      1. Connect the Techstream to DLC3
      2. Turn the power switch on (IG)
      3. Turn the Techstream on while turning driver side door courtesy light switch on and off repeatedly at 1.5-second intervals or less
      4. Select "Body Electrical / Smart Key / Utility / Smart Code Erasure" from the Techstream menu
      3. Confirmation of ECU code Perform operation according to prompts on the Techstream screen
      4. Erasure of ID code Perform operation according to prompts on the Techstream screen
      5. End of erasure Finish key ID code erasure
    6. PROCEDURE "F"

      ECU code registration

      KEY REGISTRATION PROCEDURE F

      Process Procedure
      1. Start of registration
      1. Connect the Techstream to DLC3
      2. Turn the power switch on (IG)
      3. Select "Body Electrical / Smart Key / Utility / ECU Communication ID Registration" from the Techstream menu
      2. Confirmation of registered key(1)
      1. Hold registered key close to the power switch (For details, refer to step  3"DESCRIPTION OF CODE REGISTRATION")
      2. Confirm that wireless door lock buzzer sounds once (short beep)
      3. Registration of ECU code Perform operation according to prompts on the Techstream screen
      4. End of registration Finish ECU code registration
      (1) Perform this process for one of the keys registered for the vehicle. Finish the procedure within 30 seconds. If the procedure has not been finished within the specified time, perform the erasure procedures again from process 1.
    7. PROCEDURE "G"

      ECU communication ID registration

      NOTE:
      • The ECU communication ID should be registered when the ID code box (immobilizer code ECU) and/or the hybrid vehicle control ECU is replaced in order to match these ECU communication IDs.
      • The hybrid system cannot be started unless the ECU communication IDs match.
      • After the registration, pressing the power switch may not start the hybrid system on the first try. If so, press the power switch again.
      • Erase DTC B2799-542, B2799-790 (code for hybrid vehicle control ECU's immobilizer communication error) by either of the following:
        • Use the Techstream.
        • Disconnect the auxiliary battery for 30 seconds.
      1. Using SST, connect terminals TC and CG of the DLC3.

        SST 09843-18040

        Fig 2: Identifying DLC3 Connector Terminals
        G05412991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Turn the power switch on (IG) and leave it as is for 30 minutes.

        HINT:

        Do not start the hybrid system.

      3. Turn the power switch off and disconnect terminals TC and CG.
      4. Check that the hybrid system starts and stays on for more than 3 seconds.
  6. VEHICLE IDENTIFICATION NUMBER (VIN) REGISTRATION
    NOTE: The Vehicle Identification Number (VIN) must be input into the replacement hybrid vehicle control ECU.

    HINT:

    The VIN is a 17-digit alphanumeric vehicle identification number. Techstream is required to register the VIN.

    1. Description
      1. Read VIN: This process allows the VIN stored in the hybrid vehicle control ECU to be read, in order to confirm that the two VINs, provided with the vehicle and stored in the hybrid vehicle control ECU, are the same.
      2. Write VIN: This process allows the VIN to be input into the hybrid vehicle control ECU. If the hybrid vehicle control ECU is changed, or the hybrid vehicle control ECU VIN and the vehicle VIN do not match, the VIN can be registered, or overwritten in the hybrid vehicle control ECU by following this procedure.
    2. Read VIN
      1. Confirm the vehicle VIN.
      2. Connect the Techstream to the DLC3.
      3. Turn the power switch on (IG).
      4. Turn the Techstream on.
      5. Enter the following menus: Powertrain / Hybrid Control / Utility / VIN / VIN Read.
    3. Write VIN
      1. Confirm the vehicle VIN.
      2. Connect the Techstream to the DLC3.
      3. Turn the power switch on (IG).
      4. Turn the Techstream on.
      5. Enter the following menus: Powertrain / Hybrid Control / Utility / VIN / VIN Write.
  7. IDLE SPEED CONTROL LEARNING (PERFORM INITIALIZATION) (SFI System)
    1. Apply the parking brake and chock the wheels.
    2. Connect the Techstream to the DLC3.
    3. Put the engine in the inspection mode (See INSPECTION MODE PROCEDURE ).
    4. Select the following menu items: Powertrain / Engine and ECT / Data List / Coolant Temp.
    5. Warm up the engine with the A/C switch off until the coolant temperature becomes 83°C (181°F) or more.
    6. Select the following menu items: Powertrain I Hybrid Control / Data List / State of Charge.
    7. Move the shift lever to the N position, set the A/C switch to MAX cool or turn on the front defroster, and leave the vehicle until the SOC value is below 40%.

      HINT:

      If the SOC is substantially below 40%, the HV battery may become fully discharged. Therefore, do not allow the SOC to reach substantially below 40%.

    8. Move the shift lever to the P position and turn the power switch off.
    9. Disconnect the negative terminal from the auxiliary battery and leave it for 1 minute or more.
    10. Reconnect the negative terminal to the auxiliary battery and turn the power switch on (IG).
    11. Select the following menu items: Powertrain / Engine and ECT / Data List / Coolant Temp.
    12. Check that the engine coolant temperature is 83°C (181°F) or more.

      HINT:

      If the engine coolant temperature is below 83°C (181°F), start the engine by depressing the accelerator pedal with the shift lever in the P position to increase the coolant temperature.

    13. Select the following menu items: Powertrain / Engine and ECT / Data List / Calculate Load.
    14. Move the shift lever to the D position while depressing the brake pedal with your left foot.
    15. Depress the accelerator pedal with your right foot while firmly depressing the brake pedal with your left foot, and maintain an engine load value of 45% or more (accelerator pedal depressed 60 to 70%) for approximately 30 seconds.
      NOTE: Do not perform this step for 40 seconds or more.
    16. Shift the shift lever to the P position. Turn the power switch off and then wait for 5 seconds before turning the power switch on (READY).
    17. Select the following menu items: Powertrain / Engine and ECT / Data List / ISC Learning.
    18. Check that the air conditioner is off. Lightly depress the accelerator pedal and release it when the engine starts.
    19. Check that "Complete" is displayed on Techstream screen.

      HINT:

      • If "ISC LEARNING" is not completed within 1 minute, repeat steps (o) through (r).
      • The engine will usually stop when "ISC LEARNING" is completed. However, the engine will not stop even when "ISC LEARNING" is completed in such cases when the charge level of the auxiliary battery is decreased.
  8. DESCRIPTION OF CODE REGISTRATION (Tire Pressure Warning System)

    It is necessary to register the transmitter IDs in the tire pressure warning ECU when replacing a tire pressure warning valve and transmitter and/or tire pressure warning ECU.

    Prepare all transmitter ID data before starting registration.

    1. Before registration
      1. When replacing the tire pressure warning ECU:
        • Read the registered transmitter IDs that are stored in the old ECU using the Techstream and note them down.
        • If reading stored transmitter IDs is impossible due to malfunctions of components such as the tire pressure warning antenna and receiver, remove the tires from the wheels and check the IDs located on the tire pressure warning valve and transmitters (See TIRE PRESSURE WARNING SYSTEM ).
      2. When replacing a tire pressure warning valve and transmitter:
        • Take a note of the 7-digit number (transmitter ID) written on the tire pressure warning valve and transmitter.
      Fig 3: Identifying Transmitter ID
      G05001340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: The transmitter ID is written on the tire pressure warning valve and transmitter. It will be unable to be read after installing the tire onto the wheel. Therefore, take a note of the transmitter ID before installing the tire onto the wheel.
  9. REGISTER TRANSMITTER ID (USING TECHSTREAM) (Tire Pressure Warning System)
    1. Set the air pressure of all tires to the specified value (See TIRE PRESSURE WARNING SYSTEM ).
    2. Turn the power switch off.
    3. Connect the Techstream to the DLC3.
    4. Turn the power switch on (IG) and turn the Techstream on.
    5. Enter the menu items in this order: Chassis / Tire Pressure Monitor / Utility / ID Registration.
    6. Perform the following procedures displayed on the screen.
    7. Confirmation of transmitter ID registration.
      1. Enter the menu items in this order: Chassis / Tire Pressure Monitor / Data List.
      2. Read the "ID Tire Inflation Pressure" values.
      3. Confirm that the data of tire pressure of all tires are displayed on the screen.
      NOTE:
  10. PERFORM INITIALIZATION OF LINEAR SOLENOID VALVE AND CALIBRATION (When Using Techstream) (Electronically Controlled Brake System)
    1. Clear the stored value of linear solenoid valve and calibration data.
      1. Turn the power switch off.
      2. Check that the steering wheel is in the straight-ahead position.
      3. Check that the shift lever is in P.
      4. Connect the Techstream to the DLC3.
      5. Turn the power switch on (IG).
      6. Turn the Techstream on.
      7. Select the skid control ECU to clear the linear solenoid valve and calibration data using the Techstream. Enter the following menus: Chassis / ABS/VSC/TRAC / Utility / Reset Memory.
      8. Perform the initialization of linear solenoid valve and calibration.
      9. Perform the zero point calibration of yaw rate and acceleration sensor (See CALIBRATION ).
    2. Perform the initialization of linear solenoid valve and calibration.
      1. Turn the power switch off.
      2. Check that the steering wheel is in the straight-ahead position.
      3. Check that the shift lever is in P.
      4. Connect the Techstream to the DLC3.
      5. Turn the power switch on (IG) with the brake pedal released.
        NOTE:
        • If the linear solenoid valve offset learning is performed without turning the power switch on (IG), the learning process may not be completed properly because of insufficient auxiliary battery voltage.
        • When the linear solenoid valve offset learning is interrupted, or the learning process is performed with the shift lever not in P, DTC C1345 (linear solenoid valve offset learning undone) will be stored.
      6. Turn the Techstream on.
      7. Switch the skid control ECU to the Test Mode using the Techstream. Enter the following menus: Chassis / ABS/VSC/TRAC / Utility / ECB* Utility / Linear Valve Offset.

        *: Electronically Controlled Brake System

      8. Leave the vehicle stationary without depressing the brake pedal for 1 or 2 minutes.
      9. Check that the interval between blinks of the brake warning light / yellow (minor malfunction) changes from 1 second to 0.25 seconds.

        HINT:

        Fig 4: Identifying Blinking Pattern
        G05625055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • The time needed to complete initialization of linear solenoid valve and calibration varies depending on auxiliary battery voltage.
        • The brake warning light / yellow (minor malfunction) blinks at 1 second intervals during initialization of linear solenoid valve and calibration and changes to the Test Mode display.
        • The brake warning light / yellow (minor malfunction) blinks at 0.25 seconds intervals if the Test Mode is normal.
      10. Check that DTC C1345 (linear solenoid valve offset learning undone) which indicates trouble with stroke sensor zero point learning is not output when the brake warning light / yellow (minor malfunction) changes to the Test Mode display upon initialization of linear solenoid valve and calibration completion.
      11. Enter the normal mode from the Test Mode following the Techstream directions.

        HINT:

        Refer to the Techstream operator's information for further details.

  11. PERFORM INITIALIZATION OF LINEAR SOLENOID VALVE AND CALIBRATION (When not Using Techstream) (Electronically Controlled Brake System)
    1. Clear the stored value of linear solenoid valve and calibration data.
      1. Turn the power switch off.
      2. Check that the steering wheel is in the straight-ahead position.
      3. Check that the shift lever is in P.
      4. Turn the power switch on (IG) with the brake pedal released.
      5. Using SST, connect and disconnect terminals TS and CG of the DLC3 4 times or more within 8 seconds.

        SST 09843-18040

        Fig 5: Identifying Terminals Of TS And CG Of DLC3
        G05625056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      6. Check that no codes other than ABS code 42, VSC code 45 and electronically controlled brake system code 48, 66, or 95 are stored in the diagnostic system.
        Fig 6: Identifying ABS Code Display
        G05625057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        The ABS warning, brake warning / yellow (minor malfunction) and Slip indicator lights do not indicate a normal system code.

      7. Remove SST from the terminals of the DLC3.
      8. Perform the initialization of linear solenoid valve and calibration.
      9. Perform the zero point calibration of yaw rate and acceleration sensor (See CALIBRATION ).
    2. Perform the initialization of linear solenoid valve and calibration.
      1. Turn the power switch off.
      2. Check that the steering wheel is in the straight-ahead position.
      3. Check that the shift lever is in P.
      4. Using SST, connect terminals TS and CG of the DLC3.

        SST 09843-18040

      5. Turn the power switch on (IG) with the brake pedal released.
        NOTE:
        • If the linear solenoid valve offset learning is performed without turning the power switch on (IG), the learning process may not be completed properly because of insufficient auxiliary battery voltage.
          Fig 7: Identifying Terminals Of TS And CG Of DLC3
          G05625056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • When the linear solenoid valve offset learning is interrupted, or the learning process is performed with the shift lever not in P, DTC 66 (linear solenoid valve offset learning undone) will be stored.
      6. Leave the vehicle stationary without depressing the brake pedal for 1 or 2 minutes.
      7. Check that the interval between blinks of the brake warning light / yellow (minor malfunction) changes from 1 second to 0.25 seconds.
        Fig 8: Identifying Blinking Pattern
        G05625055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        • The time needed to complete initialization of linear solenoid valve and calibration varies depending on the auxiliary battery voltage.
        • The brake warning light / yellow (minor malfunction) blinks at 1 second intervals during initialization of linear solenoid valve and calibration and changes to the Test Mode display.
        • The brake warning light / yellow (minor malfunction) blinks at 0.25 seconds intervals if Test Mode is normal.
      8. Check that DTC 66 (linear solenoid valve offset learning undone) which indicates trouble with stroke sensor zero point learning is not output when the brake warning light / yellow (minor malfunction) changes to the Test Mode display upon initialization of linear solenoid valve and calibration completion.
      9. Turn the power switch off and disconnect the SST from the DLC3.
  12. OBTAIN ZERO POINT OF YAW RATE AND ACCELERATION SENSOR (When Using Techstream) (Electronically Controlled Brake System)
    NOTE:
    • While obtaining the zero points, keep the vehicle stationary and do not vibrate, tilt, move, or shake it. (Do not turn the power switch on (READY).)
    • Be sure to perform this procedure on a level surface (with an inclination of less than 1 degree).
    1. Clear the zero point calibration data.
      1. Turn the power switch off.
      2. Check that the steering wheel is in the straight-ahead position.
      3. Check that the shift lever is in P.
      4. Connect the Techstream to the DLC3.
      5. Turn the power switch on (IG).
      6. Turn the Techstream on.
      7. Select the skid control ECU to clear the zero point calibration data using the Techstream. Enter the following menus: Chassis / ABS/VSC/ TRAC / Utility / Reset Memory.
      8. Turn the power switch off.
        NOTE: If the power switch is turned on (IG) for more than 15 seconds with the shift lever in P after the zero points of the yaw rate and acceleration sensor have been cleared, only the zero point of the yaw rate sensor will be stored. If the vehicle is driven under these conditions, the skid control ECU will store the zero point calibration for the acceleration sensor as not being completed. The skid control ECU will then also indicate this as a malfunction of the VSC system using the indicator light.
    2. Perform the zero point calibration of the yaw rate and acceleration sensor.
      1. Turn the power switch off.
      2. Check that the steering wheel is in the straight-ahead position.
      3. Check that the shift lever is in P.
        NOTE: DTCs C1210 (zero point calibration of yaw rate sensor undone) and C1336 (zero point calibration of acceleration sensor undone) will be stored if the shift lever is not in P.
      4. Connect the Techstream to the DLC3.
      5. Turn the power switch on (IG).
      6. Turn the Techstream on.
      7. Switch the skid control ECU to Test Mode using the Techstream. Enter the following menus: Chassis / ABS/VSC/TRAC / Utility / Test Mode.
      8. After Test Mode has been entered, keep the vehicle stationary on a level surface for 2 seconds or more.
      9. Check that the ABS warning, brake warning / yellow (minor malfunction) and Slip indicator lights come on for several seconds and then blink in Test Mode.

        HINT:

        • If the ABS warning, brake warning / yellow (minor malfunction) and Slip indicator lights do not blink, perform zero point calibration again.
        • The zero point calibration is performed only once after the system enters Test Mode.
        • Calibration cannot be performed again until the stored data is cleared.
        Fig 9: Identifying Blinking Pattern
        G05412996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      10. Turn the power switch off and disconnect the Techstream.
  13. OBTAIN ZERO POINT OF YAW RATE AND ACCELERATION SENSOR (When not Using Techstream) (Electronically Controlled Brake System)
    NOTE:
    • While obtaining the zero points, keep the vehicle stationary and do not vibrate, tilt, move, or shake it. (Do not turn the power switch on (READY)).
    • Be sure to perform this procedure on a level surface (with an inclination of less than 1 degree).
    1. Clear the zero point calibration data.
      1. Turn the power switch off.
      2. Check that the steering wheel is in the straight-ahead position.
      3. Check that the shift lever is in P.
      4. Turn the power switch on (IG).
      5. The warning light and indicator light come on for 3 seconds to indicate that the initial check is completed.
      6. Using SST, connect and disconnect terminals TS and CG of the DLC3 4 times or more within 8 seconds.

        SST 09843-18040

        Fig 10: Identifying Terminals Of TS And CG Of DLC3
        G05412997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      7. Check that no codes other than ABS code 42, VSC code 45 and electronically controlled brake system code 48, 66, or 95 are stored in the diagnostic system.
        Fig 11: Identifying ABS Code Display
        G05625057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        The ABS warning, brake warning / yellow (minor malfunction) and Slip indicator lights do not indicate a normal system code.

        NOTE: If the power switch is turned on (IG) for more than 15 seconds with the shift lever in P after the zero points of the yaw rate and acceleration sensor have been cleared, only the zero point of the yaw rate sensor will be stored. If the vehicle is driven under these conditions, the skid control ECU will store the zero point calibration for the acceleration sensor as not being completed. The skid control ECU will then also indicate this as a malfunction of the VSC system using the indicator light.
    2. Perform the zero point calibration of the yaw rate and acceleration sensor.
      1. Turn the power switch off.
      2. Check that the steering wheel is in the straight-ahead position.
      3. Check that the shift lever is in P.
        NOTE: DTCs 36 (zero point calibration of yaw rate sensor undone) and 39 (zero point calibration of acceleration sensor undone) will be recorded if the shift lever is not in P.
      4. Using SST, connect terminals TS and CG of the DLC3.

        SST 09843-18040

        Fig 12: Identifying Terminals Of TS And CG Of DLC3
        G05412997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Turn the power switch on (IG).
      6. After Test Mode has been entered, keep the vehicle stationary on a level surface for 2 seconds or more.
      7. Check that the ABS warning, brake warning / yellow (minor malfunction) and Slip indicator lights come on for several seconds and then blinks in Test Mode.

        HINT:

        • If the ABS warning, brake warning / yellow (minor malfunction) and Slip indicator lights do not blink, perform zero point calibration again.
        • The zero point calibration is performed only once after the system enters Test Mode.
        • Calibration cannot be performed again until the stored data is cleared.
          Fig 13: Identifying Blinking Pattern
          G05412996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      8. Turn the power switch off and disconnect SST from the DLC3.
  14. ZERO POINT CALIBRATION (Occupant Classification System)
    1. Zero point calibration procedures

      HINT:

      Make sure that the zero point calibration has finished normally, and then perform the sensitivity check.

      1. Check that all of the following conditions are met:
        • The vehicle is parked on a level surface.
        • No objects are placed on the front passenger seat.
        • The front passenger seat belt buckle switch is OFF.
      2. Adjust the seat position according to the table below.
        SEAT POSITION REFERENCE

        Adjustment Item Position
        Slide Direction Rearmost position
        Reclining Angle Upright position
        Headrest Height Lowest position
        Lifter Height Lowest position
      3. Turn the ignition switch off.
      4. Connect Techstream to the DLC3.
      5. Turn the ignition switch on (IG) and turn the Techstream on.
      6. Enter the following menus: Body Electrical/Occupant Detection/Utility/Zero Point Calibration.
      7. Perform the zero point calibration by following the prompts on the Techstream screen.

        HINT:

        • Refer to the Techstream operator's manual for further details.
        • If the zero point calibration does not complete, replace the front seat assembly RH.

          OK:

          "Zero Point Calibration Is Complete." is displayed.

  15. SENSITIVITY CHECK (Occupant Classification System)
    1. Sensitivity check procedures
      1. Turn the ignition switch off.
      2. Connect Techstream to the DLC3.
      3. Turn the ignition switch on (IG) and turn the Techstream on.
      4. Enter the following menus: Body Electrical/Occupant Detection/Utility/Sensitivity Check.
      5. Perform the sensitivity check by following the prompts on the Techstream screen.

        HINT:

        Refer to the Techstream operator's manual for further details.

      6. Confirm that the initial sensor reading is within the specified range.

        Standard:

        -3.2 to 3.2 kg (-7 to 7 lb)

      7. Place a 30 kg (66.14 lb) weight (eg. a 30 kg (66.14 lb) of lead mass) onto the front passenger seat.
      8. Confirm that the sensitivity is within the specified range.

        Standard:

        27 to 33 kg (59.52 to 72.75 lb)

        HINT:

        • When performing the sensitivity check, use a solid metal weight (the check result may not appear properly if a liquid weight made from liquid is used).
        • If the sensitivity deviates from the specified range, retighten the bolts of the front passenger seat without deforming the seat rail. After performing this procedure, if the sensitivity is not within the specified range, replace the front seat assembly RH.
  16. INITIALIZE POWER WINDOW CONTROL SYSTEM (POWER WINDOW REGULATOR MOTOR ASSEMBLY (ON DRIVER SIDE)) (Power Window Control System)
    NOTE:
    • DTC B2313 will be set if the driver side power window regulator motor assembly is replaced with a new assembly. Clear the DTC after initializing the power window motor.
    • Initialization should be made when the vehicle is stationary.
    • Be sure to initialize the door glass position memory (pulse sensor) after replacing the driver side power window regulator motor assembly. Without the initialization, the driver door auto up-and-down function, jam protection function and key-off operation will not work.
    • Be sure not to tap or give any shock or force to the door glasses during the initialization procedure as the vehicle is learning the door glasses' sliding resistance during initialization.
    • After replacing the driver side power window regulator, door glass, or glass adhesive dams, be sure to initialize the door glass position memory (pulse sensor). Otherwise, the jam protection function may work when unnecessary.

    If the initialization procedure cannot be completed normally, there may be a malfunction in the Local Interconnect Network (LIN) communication. Check the body multiplex (LIN) communication system.

    1. Inspection procedure
      Fig 14: Initialization Inspection Procedure Chart
      G05413004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • *1: Even if the door glass has been fully opened before procedure No. 3, it is necessary to press the power window switch down for at least 1 second.
      • *2: As soon as the switch is pulled completely up (automatic closing), the master switch indicator starts to blink.
      • *3: If the master switch indicator does not come on after procedure No. 4, restart from procedure No. 3.
      • *4: Allow the automatic operation to continue without stopping until the door glass is fully closed.

        Check the body multiplex LIN system (See SYSTEM DESCRIPTION ).

  17. TO RETURN THE SYSTEM TO THE PRE-INITIALIZED CONDITION (Power Window Control System)
    NOTE: After replacing or reinstalling the driver side power window regulator, door glass, or door glass adhesive dams, be sure to initialize the door glass position memory (pulse sensor). Otherwise, the jam protection function may work when unnecessary.
    1. Procedure
      Fig 15: Pre-Initialized Condition Inspection Procedure Chart (Power Window Control System)
      G05421104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • *1: Even if the door glass has been fully closed before procedure No. 3, it is necessary to pull the power window switch up for at least 6 seconds while the door glass is fully closed.
      • *2: After completing procedure No. 4, return the door glass switch to its neutral position, then perform automatic opening operation.
      • *3: After completing the whole initialization process, make sure that the door glass fully closes with the automatic closing operation.
      • If the initialization procedure cannot be completed normally, there may be a malfunction in the Local Interconnect Network (LIN) communication. Check the body multiplex (LIN, Local Interconnect Network) communication system (See SYSTEM DESCRIPTION ).
  18. RESET BACK DOOR CLOSE POSITION (Power Back Door System)
    1. When disconnecting the cable from the battery terminal, fully close the back door to turn off the courtesy switch.

      HINT:

      If the back door is closed when disconnecting the cable from the battery terminal, it is not necessary to reset it.

  19. INITIALIZE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY (Sliding Roof System)
    NOTE: Be sure to initialize the sliding roof drive gear (pulse sensor) after adjusting the sliding roof glass position or removing and installing components. Without initialization, there may be a malfunction in the sliding roof auto operation, or key-off operation. If any of the following conditions occurs during initialization procedure, initialization will fail.
    • The power switch is turned off.
    • Communication is cut off.
    • Another switch is turned on during initialization.
    • Vehicle speed is 5 km/h (3 mph) or more.
    • The vehicle experiences a strong vibration during initialization, such as the slamming of a door.
    1. Initialization

      HINT:

      According to the following chart, proceed to the appropriate initialization procedure.

      INITIALIZATION PROCEDURE

      Sliding Roof Condition Proceed to
      The sliding roof AUTO function does not operate. [A]
      The sliding roof AUTO function [B]
      Although the sliding roof AUTO function operates, the roof glass stops moving or starts moving in the opposite direction while tilting downward. [B]
      Although the sliding roof AUTO function operates, the roof glass stops moving or starts moving in the opposite direction while sliding closed. [C]
      1. [A] The sliding roof AUTO function does not operate.
        1. Turn the power switch on (IG). *1
        2. Fully close the sliding roof.
        3. Press and hold the sliding roof switch (TILT UP side) until the following movement finishes: Tilt up → stationary state for at least 1 second → tilt down → slide open → slide close. *2
          NOTE: Press and hold the sliding roof switch (TILT UP side) until step *2 is complete. If the switch is released before step *2 is complete, restart from step *1.
        4. Confirm that the roof glass is stopped at the fully closed position and initialization is completed.
      2. [B] Although the sliding roof AUTO function operates, the roof glass stops moving or starts moving in the opposite direction while tilting downward.
        1. Turn the power switch on (IG). *1
        2. Press and hold the sliding roof switch (TILT UP side) until the sliding roof stops.
        3. After the sliding roof stops, release the switch.
        4. Press and hold the sliding roof switch (TILT UP side) for more than 10 seconds until the following movement finishes: Tilt up → stationary state for at least 1 second → tilt down → slide open → slide close. *2
          NOTE: Press and hold the sliding roof switch (TILT UP side) until step *2 is complete. If the switch is released before step *2 is complete, restart from step *1.
        5. Confirm that the roof glass is stopped at the fully closed position and initialization is complete.
        6. Confirm that the sliding roof can be normally operated with the AUTO function.
      3. [C] Although the sliding roof AUTO function operates, the roof glass stops moving or starts moving in the opposite direction while sliding closed.
        1. Turn the power switch on (IG). *1
        2. Press and hold the sliding roof switch (TILT UP side) until the following movement finishes: Slide close → roof glass stops moving or starts moving in the opposite direction → stationary for at least 10 seconds → slide close. *2
          NOTE: Press and hold sliding roof switch (TILT UP side) until step *2 is complete. If the switch is released before step *2 is complete, restart from step *1.
        3. After the sliding roof has stopped at the fully closed position, release the switch.
        4. Follow the initialization procedure described in [A] (The sliding roof AUTO function does not function.)
scientia non olet · About LEMON Manuals
