Fuel Pump: Removal

  1. DISCHARGE FUEL SYSTEM PRESSURE  (See REMOVAL )
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL  (See REMOVAL )
  3. REMOVE REAR CENTER SEAT ASSEMBLY
  4. REMOVE REAR SEAT HEADREST ASSEMBLY (for LH Side)
  5. REMOVE SEAT TRACK BRACKET COVER LH  (See REMOVAL )
  6. REMOVE REAR OUTER TRACK BRACKET COVER LH  (See REMOVAL )
  7. REMOVE REAR INNER TRACK BRACKET COVER LH  (See REMOVAL )
  8. REMOVE REAR SEAT LEG SIDE COVER LH  (See REMOVAL )
  9. DISCONNECT REAR NO. 1 SEAT LOCK CABLE ASSEMBLY (w/ Remote Folding Function)  (See REMOVAL )
  10. REMOVE REAR NO. 1 SEAT ASSEMBLY LH  (See DISASSEMBLY )
  11. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)
  12. REMOVE SEAT TRACK BRACKET COVER RH  (See REMOVAL )
  13. REMOVE REAR OUTER TRACK BRACKET COVER RH  (See REMOVAL )
  14. REMOVE REAR INNER TRACK BRACKET COVER RH  (See REMOVAL )
  15. REMOVE REAR SEAT LEG SIDE COVER RH  (See REMOVAL )
  16. REMOVE REAR NO. 1 SEAT LOCK CABLE ASSEMBLY (w/ Remote Folding Function)  (See REMOVAL )
  17. REMOVE REAR NO. 1 SEAT ASSEMBLY RH  (See DISASSEMBLY )
  18. REMOVE REAR DOOR SCUFF PLATE LH  (See REMOVAL )
  19. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH  (See REMOVAL )
  20. REMOVE DECK BOARD ASSEMBLY  (See REMOVAL )
  21. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY  (See REMOVAL )
  22. REMOVE NO. 2 DECK BOARD SUB-ASSEMBLY  (See REMOVAL )
  23. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)  (See REMOVAL )
  24. REMOVE REAR NO. 1 FLOOR BOARD (w/o Rear No. 2 Seat)  (See REMOVAL )
  25. REMOVE REAR SEAT SIDE COVER LH (w/ Rear No. 2 Seat)  (See REMOVAL )
  26. REMOVE DECK SIDE TRIM BOX LH  (See REMOVAL )
  27. REMOVE REAR SEAT SIDE COVER RH (w/ Rear No. 2 Seat)  (See REMOVAL )
  28. REMOVE JACK CARRIER SUPPORT
  29. REMOVE JACK CARRIER CUSHION  (See REMOVAL )
  30. REMOVE JACK ASSEMBLY  (See REMOVAL )
  31. REMOVE JACK CARRIER ASSEMBLY  (See REMOVAL )
  32. REMOVE DECK SIDE TRIM BOX RH  (See REMOVAL )
  33. REMOVE DECK FLOOR BOARD ASSEMBLY (w/o Rear No. 2 Seat)  (See REMOVAL )
  34. REMOVE REAR MAT  (See REMOVAL )
  35. REMOVE DECK FLOOR BOARD ASSEMBLY (w/ Rear No. 2 Seat)  (See REMOVAL )
  36. REMOVE REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)  (See REMOVAL )
  37. REMOVE REAR NO. 2 SEAT INNER BELT ASSEMBLY (w/ Rear No. 2 Seat)  (See INSTALLATION )
  38. DISCONNECT REAR SEAT LAP TYPE BELT ASSEMBLY LH (w/ Rear No. 2 Seat)  (See REMOVAL )
  39. DISCONNECT REAR SEAT LAP TYPE BELT ASSEMBLY RH (w/ Rear No. 2 Seat)  (See REMOVAL )
  40. REMOVE REAR NO. 2 SEAT ASSEMBLY (w/ Rear No. 2 Seat)  (See DISASSEMBLY )
  41. REMOVE REAR FLOOR FINISH PLATE  (See REMOVAL )
  42. REMOVE DECK SIDE TRIM COVER LH  (See REMOVAL )
  43. REMOVE DECK SIDE TRIM COVER LH  (See REMOVAL )
  44. REMOVE SIDE TRIM COVER LH (w/o Rear Seat Entertainment System)  (See REMOVAL )
  45. REMOVE POWER OUTLET SOCKET BEZEL (w/ Rear Seat Entertainment System)  (See REMOVAL )
  46. REMOVE REAR COMBINATION LIGHT SERVICE COVER LH  (See REMOVAL )
  47. REMOVE REAR POWER POINT SOCKET ASSEMBLY  (See REAR POWER OUTLET SOCKET )
  48. REMOVE REAR POWER OUTLET SOCKET COVER  (See INSTALLATION )
  49. REMOVE REAR DECK TRIM COVER (w/o Remote Folding Function)  (See REMOVAL )
  50. REMOVE RECLINING REMOTE CONTROL LEVER BEZEL LH (w/ Remote Folding Function)  (See REMOVAL )
  51. REMOVE ROPE HOOK ASSEMBLY (for LH Side)  (See REMOVAL )
  52. REMOVE NO. 2 DECK SIDE TRIM HOOK  (See REMOVAL )
  53. REMOVE FRONT DECK SIDE TRIM COVER LH  (See REMOVAL )
  54. DISCONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH  (See REMOVAL )
  55. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH  (See REMOVAL )
  56. REMOVE REAR FLOOR SERVICE HOLE COVER
    1. Lift up the front floor carpet.
      1. Using a clip remover, remove the 3 clips and lift up the front floor carpet. (w/ rear No. 2 seat)
        Fig 1: Locating Front Floor Carpet And Clips
        G05414757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the 3 claws and lift up the front floor carpet. (w/o rear No. 2 seat)
      Fig 2: Identifying Claws And Front Floor Carpet
      G05414758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the rear floor service hole cover.
    3. Disconnect the fuel pump connector.
      Fig 3: Locating Rear Floor Service Hole Cover
      G05414759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  57. REMOVE FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE
    1. Remove the tube joint clip, and pull out the fuel pump tube.
      NOTE:
      • Check that there is no dirt or other foreign objects around the connector before disconnecting it. Clean the connector if necessary.
      • It is necessary to prevent mud or dirt from entering the quick connector. If mud or dirt gets in the connector, the O-rings may not seal properly.
      • Disconnect the quick connector by hand. Do not use any tools.
      • Do not bend, kink or twist the nylon tubes. Protect the connector by covering it with a plastic bag.
      • If the pipe and connector are stuck, carefully try wiggling or pushing and pulling on the connector to release it. Pull the connector off carefully.

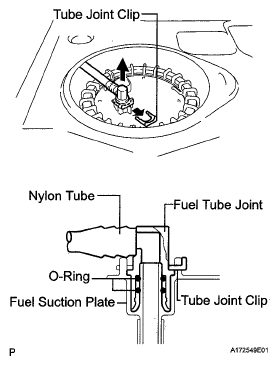

      Fig 4: Identifying Tube Joint Clip And Fuel Pump Tube
      G05414807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 6 mm socket hexagon wrench, install SST to the fuel pump gauge retainer.

      SST 09808-14020 (09808-01410, 09808-01420, 09808-01430)

      HINT:

      • Engage the SST claws securely with the fuel pump gauge retainer ribs to secure SST.
      • Install SST while pressing the SST claws toward the fuel pump gauge retainer (toward the center of SST).

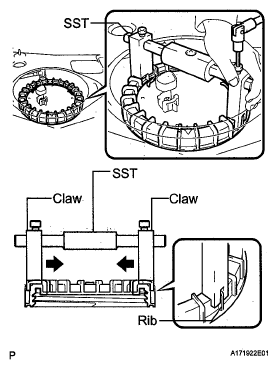

      Fig 5: Installing SST To Fuel Pump Gauge Retainer
      G05414808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, loosen the fuel pump gauge retainer.

      SST 09808-14020 (09808-01410, 09808-01420, 09808-01430)

      NOTE:
      • Do not use any tools other than specified in this operation. Damage to the fuel pump gauge retainer or the fuel tank may result.
      • Loosen the retainer by turning it counterclockwise while holding SST down. Do not allow the claw of the tank suction tube support to slip out of its groove on the fuel tank.
      Fig 6: Loosening Fuel Pump Gauge Retainer
      G05414809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The ribs on the fuel pump gauge retainer can be fitted into the tips of SST.

    4. Remove the fuel pump gauge retainer.
    5. Remove the fuel suction tube with pump and gauge.
      NOTE: Be careful not to bend the arm of the fuel sender gauge.
    6. Remove the gasket from the fuel tank.
    Fig 7: Identifying Gasket And Fuel Pump
    G05414810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
