Highlander Base, 3.5 S, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Ignition System (2GR-FE)
>>
Ignition System
>>
System Diagram
System Diagram

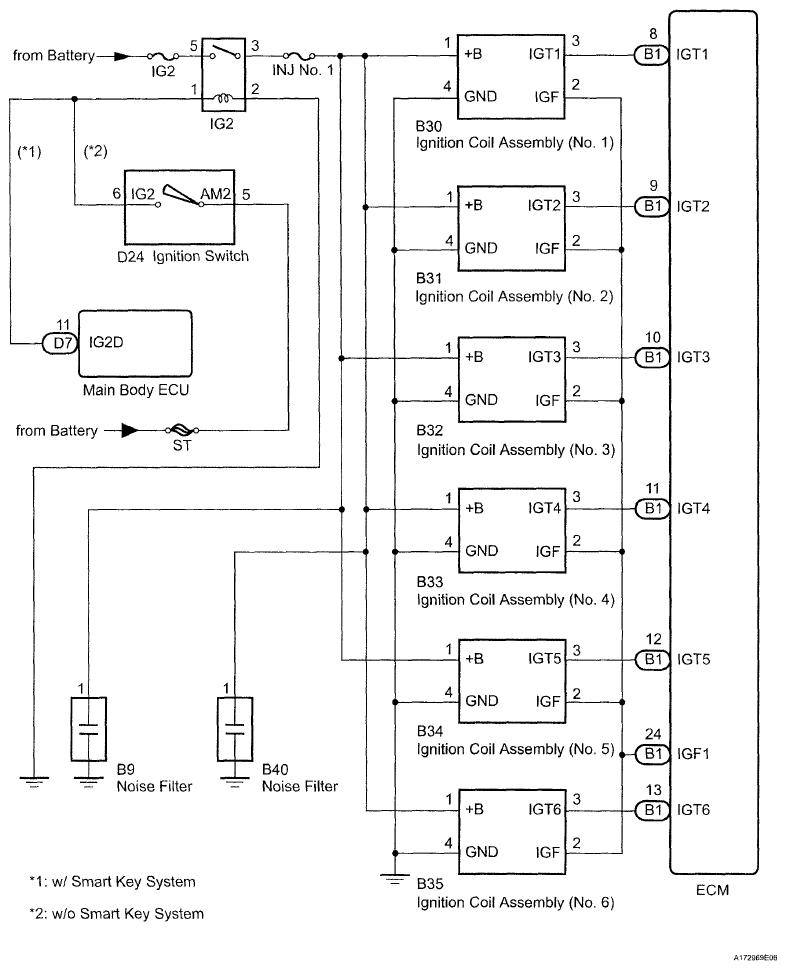

Fig 1: Ignition System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
