Heated Oxygen Sensor: Installation

INSTALL HEATED OXYGEN SENSOR
1. Using SST, install the heated oxygen sensor to the front exhaust pipe.
  SST 09224-00010

  Torque: without SST

  44 N*m (449 kgf*cm, 32 ft.*lbf)

  with SST

  40 N*m (408 kgf*cm, 30 ft.*lbf)

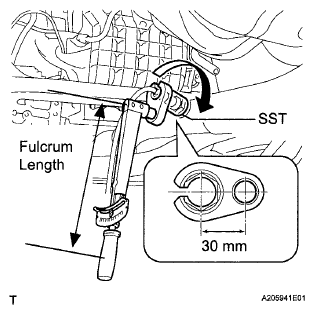

  Fig 1: Installing Heated Oxygen Sensor To Front Exhaust Pipe
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - The "with SST" torque value is effective when using SST with a fulcrum length of 30 mm (1.18 in.).
  - The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 300 mm (11.81 in.) (See REPAIR INSTRUCTION ).
  - This torque value is effective when SST is parallel to the torque wrench.
2. Install the 2 wire harness clamps.
3. Connect the heated oxygen sensor connector.
INSPECT FOR EXHAUST GAS LEAK
INSTALL FRONT FLOOR COVER LH (See INSTALLATION )

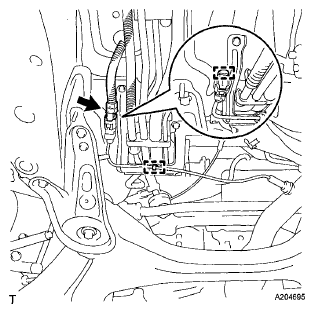

Fig 2: Locating Heated Oxygen Sensor Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
