Valve Body Assembly: Disassembly

  1. REMOVE SHIFT SOLENOID VALVE
    1. Remove the bolt, lock plate, 2 pins and shift solenoid valves SLT and SL1.

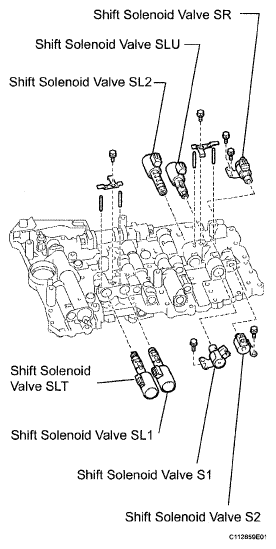

      2. Fig 1: Identifying Shift Solenoid Valves
      G05197113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt, lock plate, 2 pins and shift solenoid valves SLU and SL2.
    3. Remove the 2 bolts and shift solenoid valve SR.
    4. Remove the bolt and shift solenoid valve S1.
    5. Remove the bolt and shift solenoid valve S2.
