Valve Body Assembly: Components

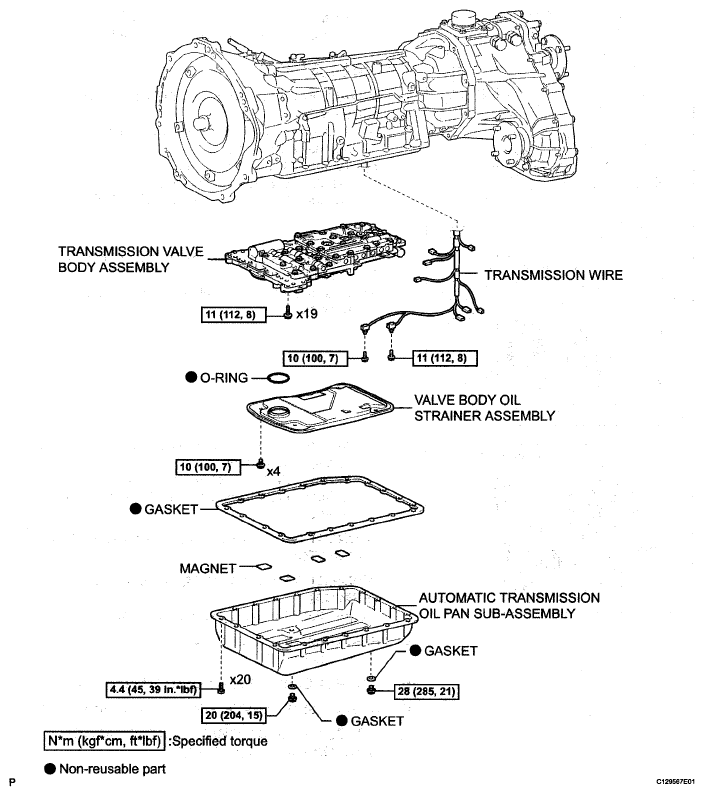

Fig 1: Identifying Valve Body Assembly Replacement Components With Torque Specifications (1 Of 2)
G05110661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

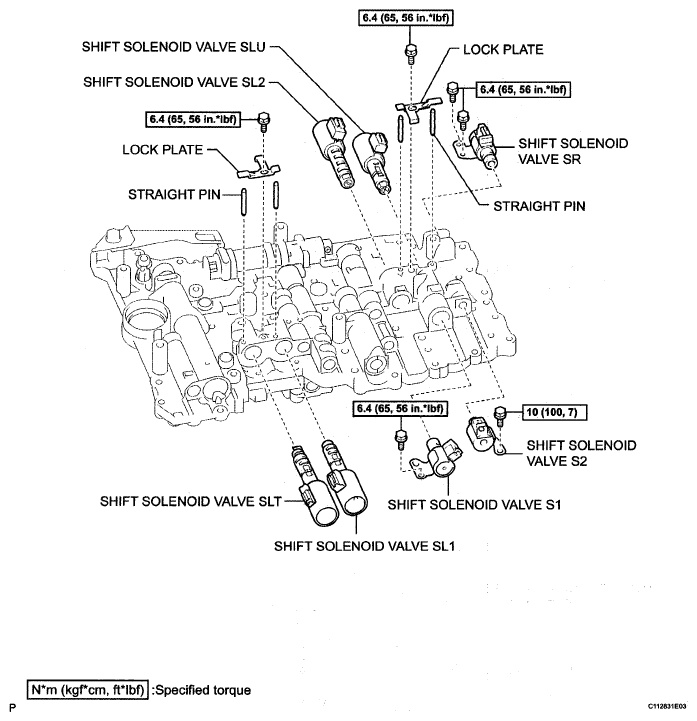

Fig 2: Identifying Valve Body Assembly Replacement Components With Torque Specifications (2 Of 2)
G05110096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
