Transmission Control Cable: Components

Fig 1: Identifying Transmission Control Cable Replacement Components (1 Of 2)
G05110168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

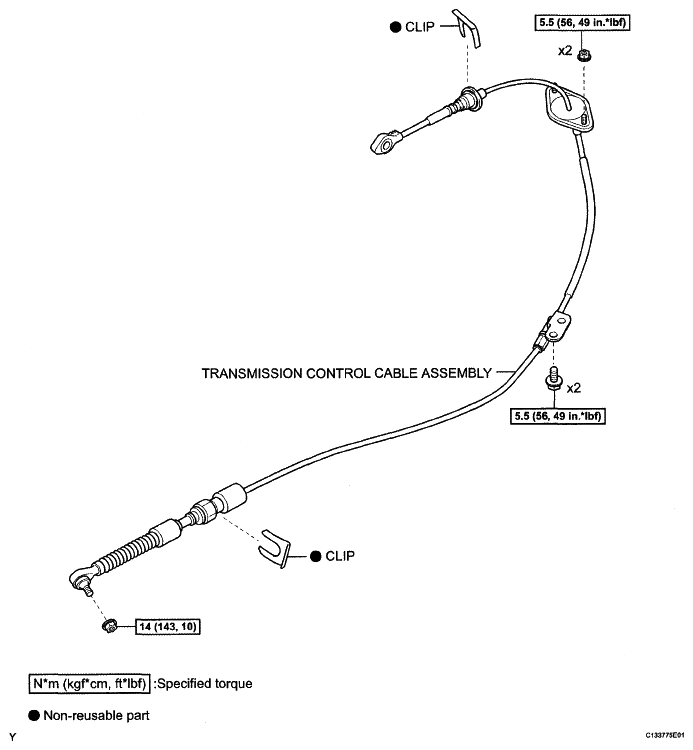

Fig 2: Identifying Transmission Control Cable Replacement Components With Torque Specifications (2 Of 2)
G05110742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
