Oil Pump: Components

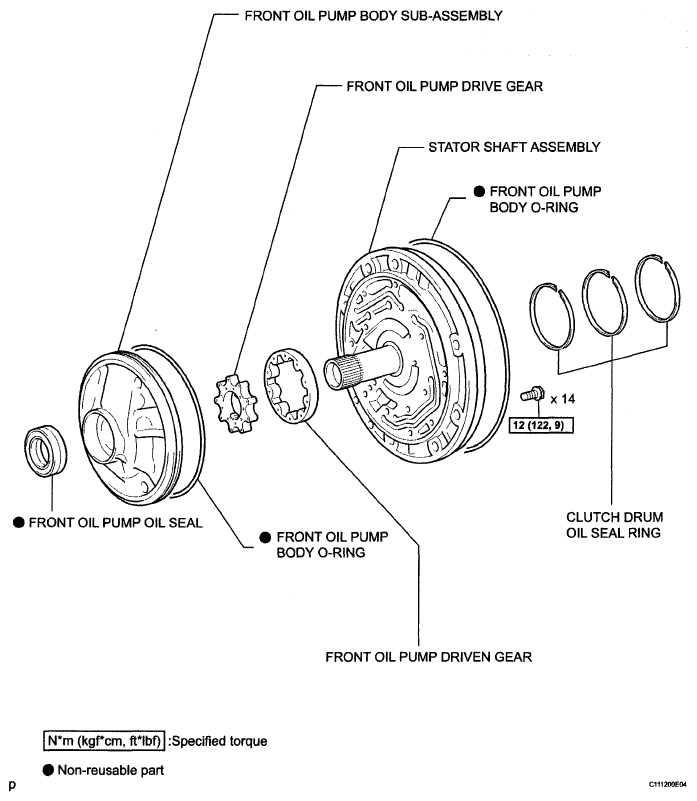

Fig 1: Oil Pump Replacement Components With Torque Specifications

G05110368

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
