Floor Shift Assembly: Components

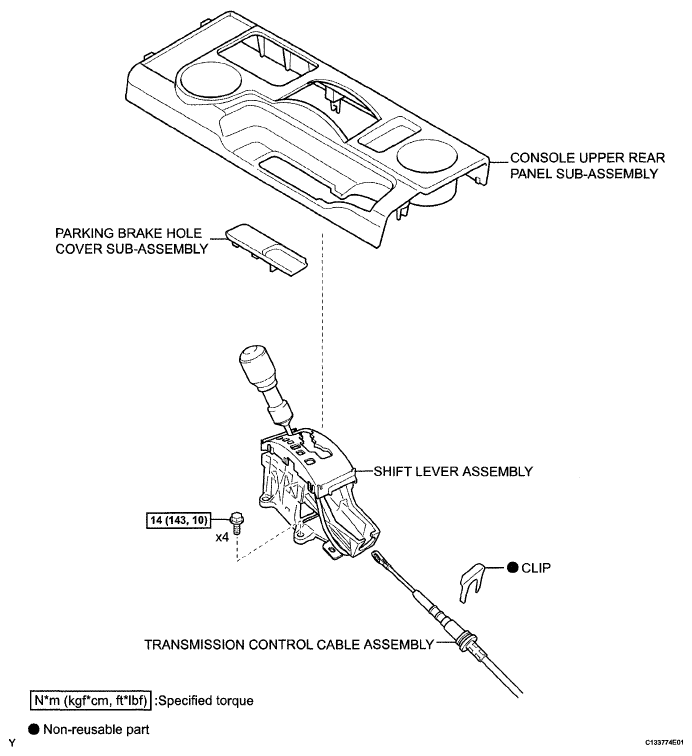

Fig 1: Identifying Floor Shift Assembly Replacement Components With Torque Specification (1 Of 2)
G05110112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

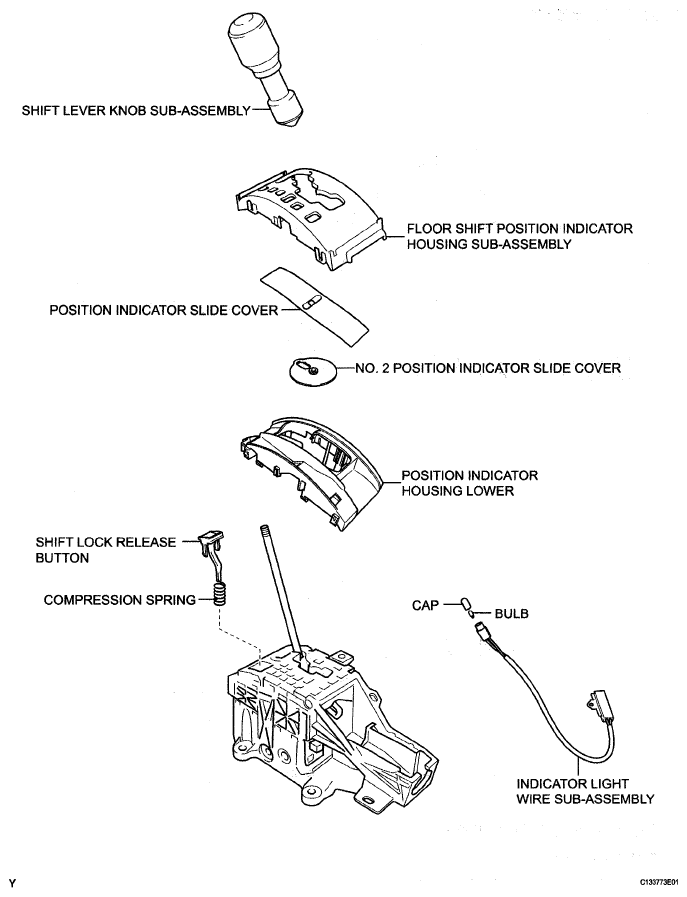

Fig 2: Identifying Floor Shift Assembly Replacement Components (2 Of 2)
G05110113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
