Purge Valve: Components

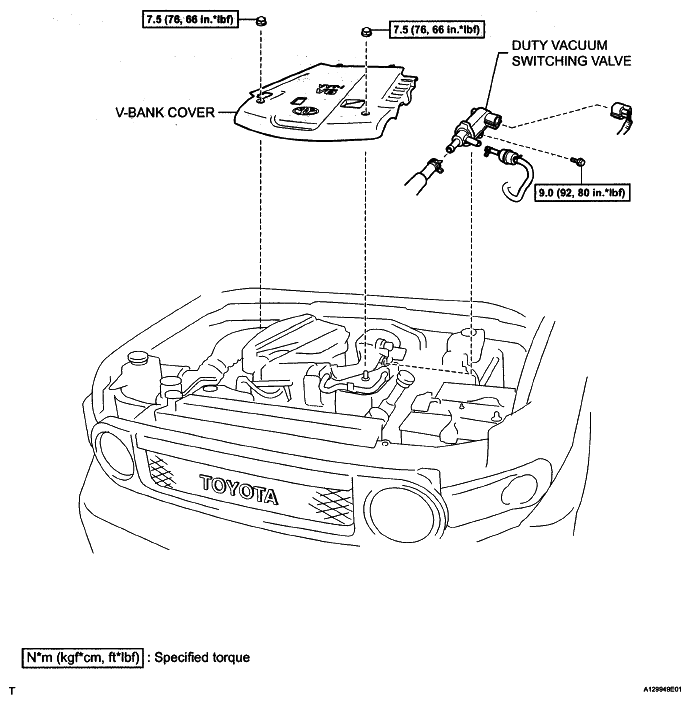

Fig 1: Vacuum Switching Valve Replacement Components With Torque Specifications

G05109757

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
