Front Seat Assembly: Reassembly

CAUTION: Wear protective gloves. Sharp surfaces on the front seat adjuster could cause injuries to your hands.
  1. INSTALL FRONT SEAT WIRE (for Front Passenger Side)
    1. Install the seat wire with the 4 clamps.
    2. Engage the claw and install the connector.
    3. Connect the 4 connectors.
      Fig 1: Identifying Front Seat Wire Connectors
      G05114551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL OCCUPANT CLASSIFICATION ECU (for Front Passenger Side)
    1. Engage the claw and install the occupant classification ECU.
    2. Connect the 2 connectors.
      Fig 2: Identifying Occupant Classification ECU Claw
      G05114550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL SEAT POSITION SENSOR (for Driver Side)
    1. Install the seat position sensor with the bolt.

      Torque: 8.0 N*m (80 kgf*cm, 71 in.*lbf)

      Fig 3: Identifying Seat Position Sensor Bolt
      G05114549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FRONT SEAT CUSHION EDGE PROTECTOR
    1. Install the 2 front seat cushion edge protectors.
      Fig 4: Identifying Front Seat Cushion Edge Protectors
      G05114548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FRONT SEAT CUSHION LOWER SHIELD RH
    1. Engage the claw and install the front seat cushion lower shield.
      Fig 5: Identifying Front Seat Cushion Lower Shield Claw
      G05114547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FRONT SEAT CUSHION LOWER SHIELD LH

    HINT:

    Use the same procedure as for the RH side.

  7. INSTALL RECLINING ADJUSTER OUTSIDE COVER RH
    1. Install the reclining adjuster outside cover with the screw.
      Fig 6: Identifying Reclining Adjuster Outside Cover Screw
      G05114546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL RECLINING ADJUSTER OUTSIDE COVER LH

    HINT:

    Use the same procedure as for the RH side.

  9. INSTALL RECLINING ADJUSTER INSIDE COVER RH
    1. Engage the claw and install the reclining adjuster inside cover.
    2. Tighten the screw.
      Fig 7: Identifying Reclining Adjuster Inside Cover RH Claw & Screw
      G05114544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL RECLINING ADJUSTER INSIDE COVER LH
    1. Engage the claw and install the reclining adjuster inside cover.
    2. w/Front Seat Side Airbag:
      1. Install the clamp.
    3. Tighten the screw.
      Fig 8: Identifying Reclining Adjuster Inside Cover LH Claw & Screw
      G05114545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL VERTICAL SEAT ADJUSTER BUSH (for Driver Side)
    1. Engage the claw and install the vertical seat adjuster bush.
      Fig 9: Identifying Vertical Seat Adjuster Bush Claw
      G05114543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL LOWER ACTIVE HEADREST UNIT
    1. Install the lower active headrest unit with the 2 nuts.

      Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

      Fig 10: Install The Lower Active Headrest Unit With The 2 Nuts
      G00483329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL UPPER ACTIVE HEADREST UNIT
      Fig 11: Connect The Lower Active Headrest Unit Cable
      G00483330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the lower active headrest unit cable.
    2. Install a new wire harness clamp.

      HINT:

      Install the wire harness clamp in the third position from the top of the seatback spring.

    3. Install the upper active headrest with the 5 nuts.

      Nut A - Torque: 14 N.m (142 kgf.cm, 10 ft.lbf)

      Nut B - Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

  14. INSTALL FRONT SEATBACK COVER
    1. Using hog ring pliers, install the front seatback cover with 5 new hog rings.
      NOTE:
      • Do not soil or scratch the front seatback cover.
      • When installing the hog rings, minimize wrinkles as far as possible.

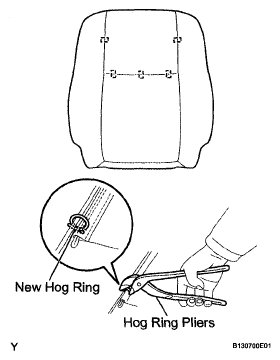

        Fig 12: Identifying Front Seatback Cover With New Hog Rings
        G05114561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL FRONT SEATBACK ASSEMBLY
    1. Install the front seatback.
      Fig 13: Identifying Front Seatback
      G05114541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Front Seat Side Airbag:
      1. Fully cover the airbag with the 2 front seatback cover brackets and tighten the nut.

        Torque: 5.5 N*m (55 kgf*cm, 49 in.*lbf)

        CAUTION:
        • For vehicles with front seat side airbag, the front seatback cover must be securely installed. Otherwise, the front seat side airbag may not deploy properly.
        • Make sure that the strap is not twisted after installing the bracket.
        • Install the bracket securely.
    3. Using hog ring pliers, install 4 new hog rings.
    4. Install the 2 clips.

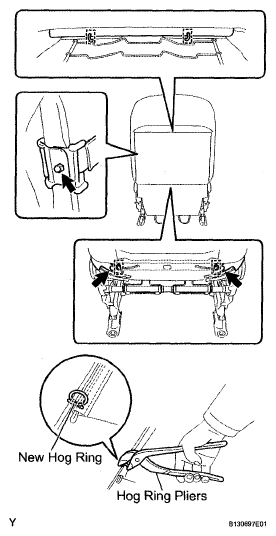

      Fig 14: Identifying New Hog Rings (1 Of 3)
      G05114563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Fasten the 2 zippers.
    6. Using hog ring pliers, install 2 new hog rings.

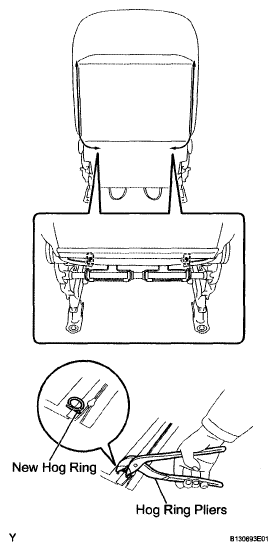

      Fig 15: Identifying New Hog Rings (2 Of 3)
      G05114564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Using hog ring pliers, install 3 new hog rings.

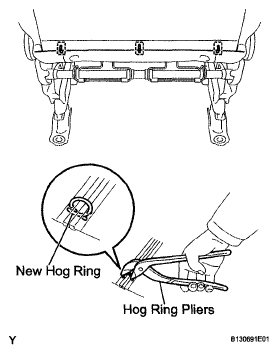

      Fig 16: Identifying New Hog Rings (3 Of 3)
      G05114565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL FRONT SEAT HEADREST SUPPORT

    HINT:

    Use the same procedure for both sides.

    1. Align the protruding portion of the front seat headrest support with the installation groove of the front seatback frame.
    2. Engage the 2 claws and install the front seat headrest support.
      Fig 17: Identifying Front Seat Headrest Support Claws
      G05114566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL FRONT SEAT ARMREST ASSEMBLY (for Driver Side)
    1. Install the bush onto the front seat armrest.
      Fig 18: Identifying Bush
      G05114567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the front seat armrest with the bolt.

      Torque: 38 N*m (385 kgf*cm, 28 ft.*lbf)

  18. INSTALL FRONT SEAT ARMREST CAP (for Driver Side)
    1. Engage the 4 claws and install the front seat armrest cap.
      Fig 19: Identifying Front Seat Armrest Cap Claws
      G05114568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL FRONT SEAT ARMREST COVER (for Front Passenger Side)
    1. Engage the 2 claws and install the front seat armrest cover.
      Fig 20: Identifying Front Seat Armrest Cover Claws
      G05114569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL FRONT SEAT HEADREST ASSEMBLY
    1. Push in the lock button of the front seat headrest support and install the front seat headrest.
      Fig 21: Identifying Front Seat Headrest Lock Button
      G05114533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL FRONT SEAT CUSHION COVER
    1. Using hog ring pliers, install the front seat cushion cover with 12 new hog rings.
      NOTE:
      • Do not soil or scratch the front seat cushion cover.
      • When installing the hog rings, minimize wrinkles as far as possible.
        Fig 22: Identifying Front Seat Cushion Cover With New Hog Rings
        G05114571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL FRONT SEAT CUSHION ASSEMBLY
    1. Engage the 2 claws and the 7 hooks and install the front seat cushion.
      Fig 23: Identifying Front Seat Cushion Claws & Hooks
      G05114531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 front seatback cover bands.
      Fig 24: Identifying Front Seatback Cover Bands
      G05114530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 clips.
      Fig 25: Identifying Clips
      G05114529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL FRONT SEAT CUSHION INNER SHIELD
    1. Engage the claw and the clip and install the front seat cushion inner shield.
    2. Tighten the screw.
      Fig 26: Identifying Front Seat Cushion Inner Shield Screw
      G05114575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL FRONT SEAT INNER BELT ASSEMBLY  (See INSTALLATION )
  25. INSTALL FRONT SEAT CUSHION OUTSIDE SHIELD
    1. Engage the 2 claws and the clip and install the front seat cushion outside shield.
    2. Tighten the screw.
      Fig 27: Identifying Front Seat Cushion Outside Shield Screw, Claws & Clip
      G05114576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL RECLINING ADJUSTER RELEASE HANDLE
    1. Engage the claw and install the reclining adjuster release handle.
      Fig 28: Identifying Reclining Adjuster Release Handle Claw
      G05114577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL VERTICAL SEAT ADJUSTER HANDLE (for Driver Side)
    1. Install the vertical seat adjuster handle with the 2 screws.
      Fig 29: Identifying Vertical Seat Adjuster Handle Screws
      G05114525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL VERTICAL SEAT ADJUSTER HANDLE COVER (for Driver Side)
    1. Engage the 3 claws and install the vertical seat adjuster handle cover.
      Fig 30: Identifying Vertical Seat Adjuster Handle Cover Claws
      G05114579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL VERTICAL SEAT ADJUSTER KNOB (for Driver Side)
    1. Engage the snap ring and install the vertical seat adjuster knob.
      Fig 31: Identifying Vertical Seat Adjuster Knob Snap Ring
      G05114580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
