Roof Headlining: Reassembly

INSTALL ROOF WIRE
1. Apply new double-sided tape to the roof headlining along the markings of the roof headlining.

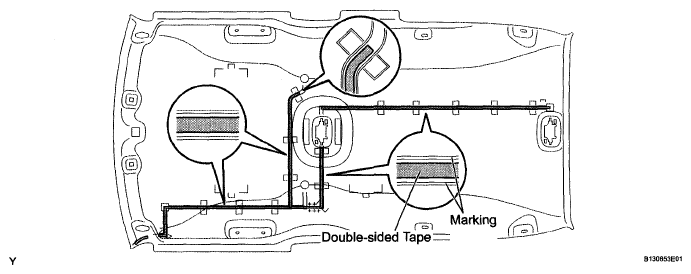

  Fig 1: Identifying Double-Sided Tape To Roof Headlining
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Apply the tape securely in place.
  - Do not touch the adhesive surface when applying the tape to prevent adhesion failure.
2. Install the roof wire as shown in the illustration.

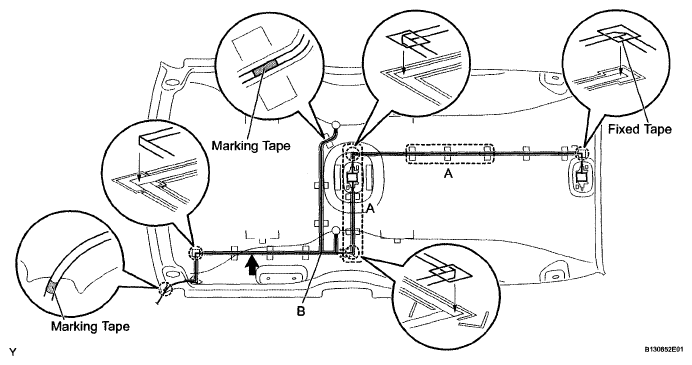

  Fig 2: Identifying Roof Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Do not twist the flat wire harness when installing it.
  - Securely fix the wire harness by pressing it.
  - Securely fix the wire harness to secure a gap between the wire harness and the roof panel in part A.
  - Securely fix the wire harness to avoid looseness in the wire harness between portion B and the marking tape.
INSTALL ROOF SILENCER PAD
1. Apply double-sided tape to the roof silencer pad.
2. Align the 2 roof silencer pads with the markings of the roof headlining and install them onto the roof headlining.

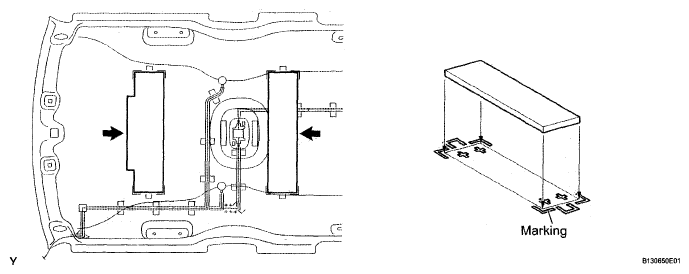

  Fig 3: Identifying Roof Silencer Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF SPEAKER ASSEMBLY
HINT:

Use the same procedure for both sides.
1. Install the roof speaker by turning it in the direction of the arrow shown in the illustration.

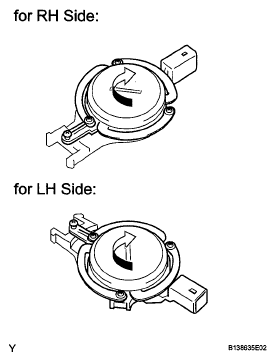

  Fig 4: Identifying Roof Speaker
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Tighten the screw.
3. Connect the speaker connector.
4. Cover the engaged portion of the connector and the lead line with a new hole cover, and attach them to the roof headlining securely.
  NOTE: Securely attach the hole cover to the roof headlining to avoid looseness in the connector and the lead line.

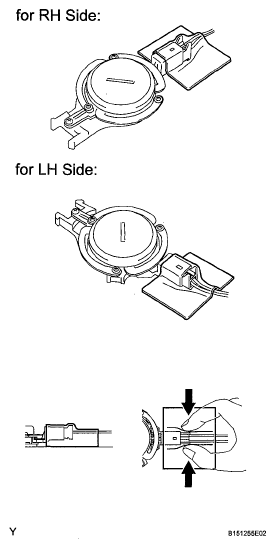

  Fig 6: Identifying Roof Speaker Assembly Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
