Roof Headlining: Disassembly

HINT:

Use the same procedure for both sides.

1. Remove the hole cover.
2. Disconnect the speaker connector.

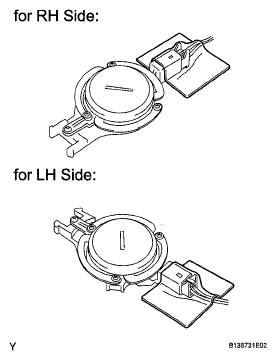

   Fig 1: Identifying Roof Speaker Assembly Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Loosen the screw.

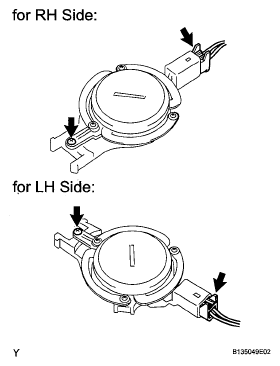

   Fig 2: Identifying Roof Speaker Assembly Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the roof speaker by turning it in the direction of the arrow shown in the illustration.

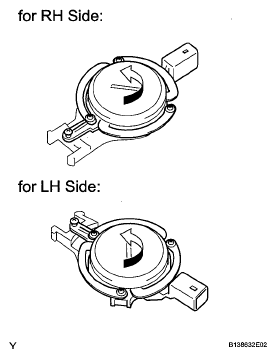

Fig 3: Identifying Roof Speaker

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 roof silencer pads.

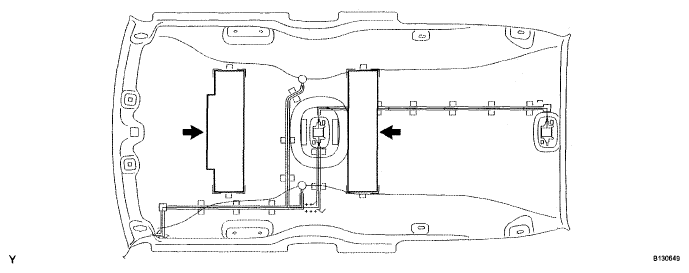

   Fig 4: Identifying Roof Silencer Pads

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the roof wire.

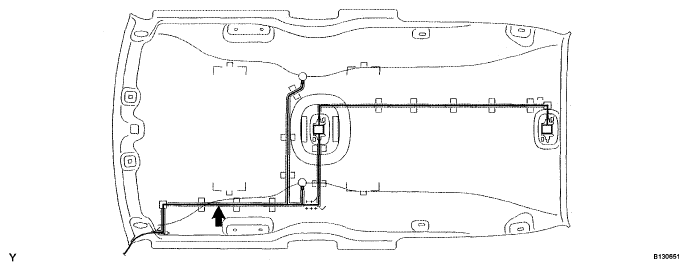

   Fig 5: Identifying Roof Wire

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
