Transponder Key Amplifier: Removal

REMOVE FRONT DOOR SCUFF PLATE LH
HINT:

Use the same procedure as for the RH side (see REMOVAL ).
REMOVE FRONT FLOOR FOOTREST (See REMOVAL )
REMOVE FOOTREST CLIP (See REMOVAL )
REMOVE COWL SIDE TRIM BOARD LH
HINT:

Use the same procedure as for the RH side (see REMOVAL ).
SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
HINT:

Use the same procedure as for the RH side (see REMOVAL ).
REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY (See REMOVAL )
SEPARATE HOOD LOCK CONTROL LEVER SUBASSEMBLY (See REMOVAL )
REMOVE INSTRUMENT PANEL FINISH PLATE
1. Using a screwdriver with its tip wrapped in protective tape, remove the instrument panel finish plate.

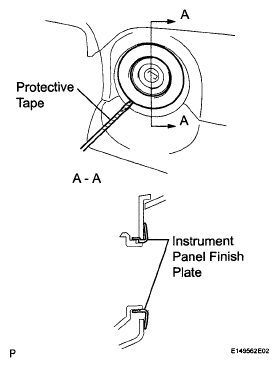

  Fig 1: Identifying Instrument Panel Finish Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH
1. Remove the 2 bolts.
2. Disengage the claw and 5 clips and remove the lower instrument panel finish panel.

  Fig 2: Identifying Claw And Clips Of Lower Instrument Panel Finish Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSPONDER KEY AMPLIFIER
1. Disconnect the connector.
2. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the transponder key amplifier.

  Fig 3: Identifying Transponder Key Amplifier Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
