Transponder Key Amplifier: Installation

  1. INSTALL TRANSPONDER KEY AMPLIFIER
    1. Engage the 2 claws and install the transponder key amplifier.
      2. Fig 1: Identifying Transponder Key Amplifier Claws
      G05580411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH
    1. Engage the claw and 5 clips and install the lower instrument panel finish panel.
      2. Fig 2: Identifying Claw And Clips Of Lower Instrument Panel Finish Panel
      G05580409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the 2 bolts.
  3. INSTALL INSTRUMENT PANEL FINISH PLATE
    1. Install the instrument panel finish plate.

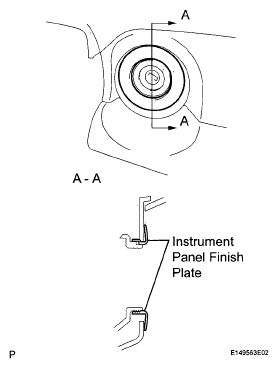

    Fig 3: Identifying Instrument Panel Finish Plate
    G05580413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECT HOOD LOCK CONTROL LEVER SUBASSEMBLY  (See INSTALLATION )
  5. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION )
  6. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    HINT:

    Use the same procedure as for the RH side (see INSTALLATION ).

  7. INSTALL COWL SIDE TRIM BOARD LH

    HINT:

    Use the same procedure as for the RH side (see INSTALLATION ).

  8. INSTALL FOOTREST CLIP  (See INSTALLATION )
  9. INSTALL FRONT FLOOR FOOTREST  (See INSTALLATION )
  10. INSTALL FRONT DOOR SCUFF PLATE LH

    HINT:

    Use the same procedure as for the RH side (see INSTALLATION ).
