System Diagram

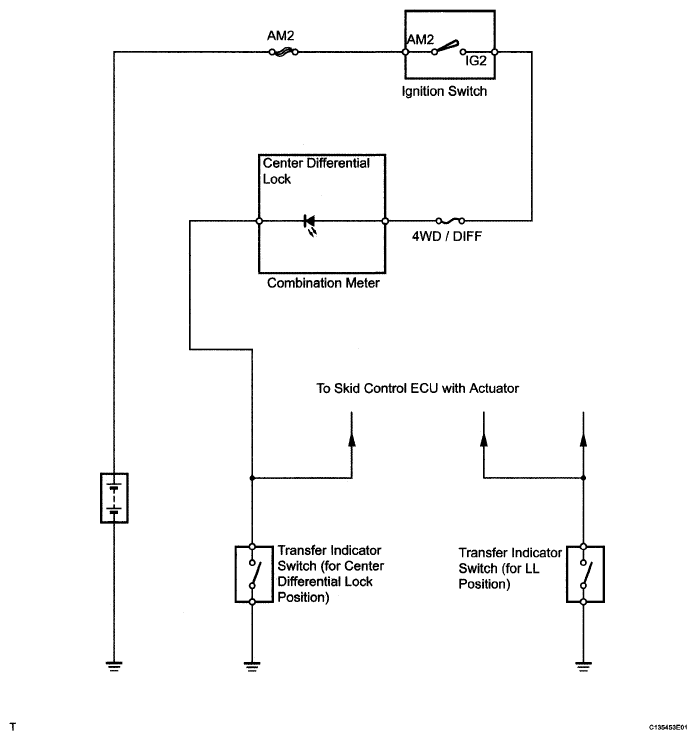

Fig 1: Identifying Transfer System Diagram

G05111524

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
