Speedometer Driven Gear: Components

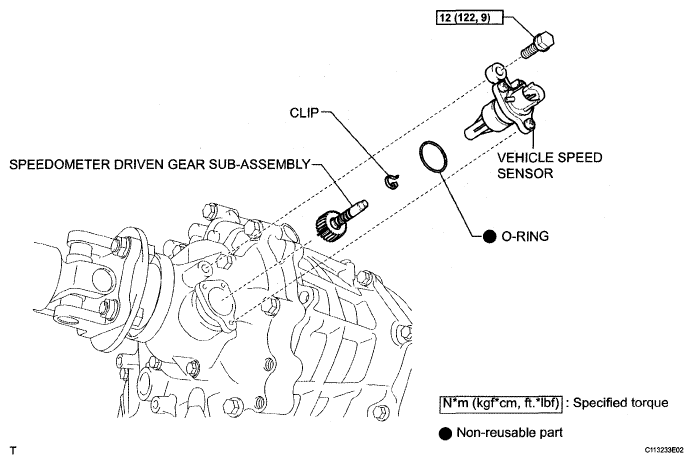

Fig 1: Speedometer Driven Gear Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
