Rear Upper Control Arm: Components

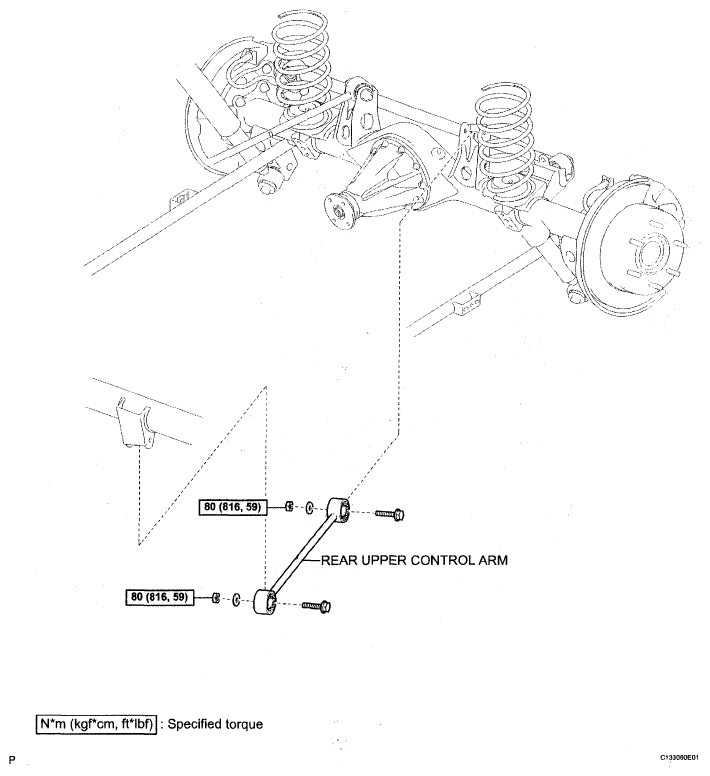

Fig 1: Rear Upper Control Arm Replacement Components With Torque Specifications

G05112166

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
