Rear Lower Control Arm: Installation

TEMPORARILY TIGHTEN REAR LOWER CONTROL ARM
1. Install the lower control arm, as shown in the illustration.

  Fig 1: Identifying Rear Lower Control Arm
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Provisionally tighten the bolt, nut and washer.

  Fig 2: Identifying Rear Lower Control Arm Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Provisionally tighten the bolt, nut and washer.

  Fig 3: Identifying Rear Lower Control Arm Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PARKING BRAKE CABLE
1. Install the parking brake cable onto the lower control arm.
  Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

  Fig 4: Identifying Parking Brake Cable Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR WHEEL
Torque: 112 N*m (1, 137 kgf*cm, 82 ft.*lbf)
STABILIZE SUSPENSION
1. Jack down the vehicle.
2. Bounce the vehicle up and down several times to stabilize the suspension.
FULLY TIGHTEN REAR LOWER CONTROL ARM
1. Fully tighten the 2 bolts.
  Torque: 130 N*m (1, 326 kgf*cm, 96 ft.*lbf)

  HINT:

  While fixing the nut, turn and install the bolt.

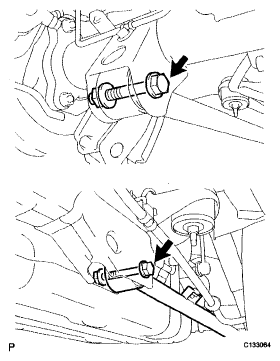

  Fig 5: Identifying Rear Lower Control Arm Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
