Rear Coil Spring: Components

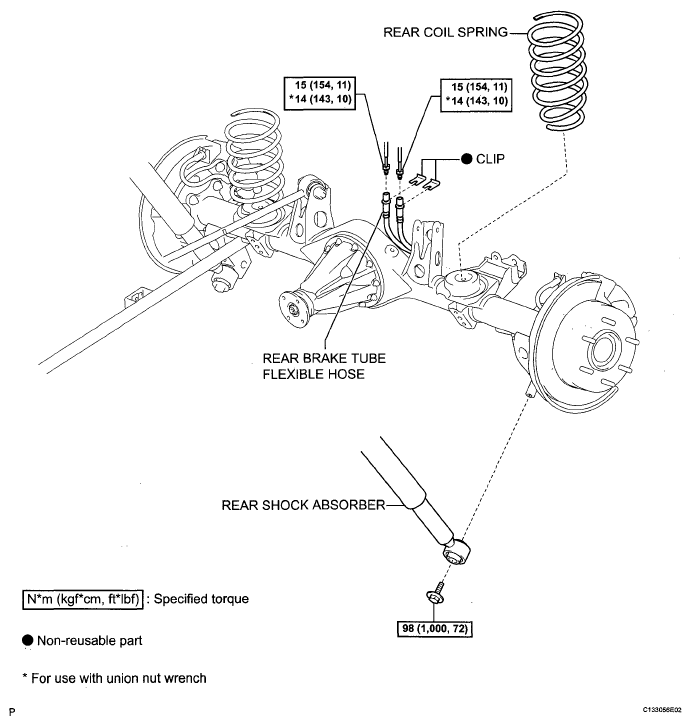

Fig 1: Rear Coil Spring Replacement Components With Torque Specifications

G05579651

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
