Front Wheel Alignment: Adjustment

HINT:

(See CALIBRATION )

Vehicle height (unloaded vehicle) for Standard

Fig 1: Identifying Measuring Point Of Front Wheel Alignment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Vehicle height (unloaded vehicle)

for Off Road Package

Measuring points:

A:

Ground clearance of front wheel center

B:

Ground clearance of adjustment cam bolt center

C:

Ground clearance of rear wheel center

D:

Ground clearance of lower control arm set bolt center

Bounce the vehicle up and down at the corners to stabilize the suspension before inspecting the vehicle height.

1. Turn the steering wheel fully, and measure the wheel turning angle.
   Fig 2: Identifying Turning Angle Of Wheel

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Wheel turning angle (unloaded vehicle)

   for Standard

   NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
   WHEEL TURNING ANGLE SPECIFICATION (UNLOADED VEHICLE) FOR STANDARD



   Vehicle Model	Inside wheel	Outside wheel (Reference)
   GSJ10L-GKASKA	32°45' (30°45' to 33°45') 32.75° (30.75° to 33.75°)	28°56' (28.93°)
   GSJ15L-GKFSKA	33°10' (31°10' to 34°10') 33.17° (31.17° to 34.17°)	29°38' (29.63°)
   GSJ15L-GKASKA	33°10' (31°10' to 34°10') 33.17° (31.17° to 34.17°)	29°38' (29.63°)

   Wheel turning angle (unloaded vehicle)

   for Off Road Package

   NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
   WHEEL TURNING ANGLE SPECIFICATION (UNLOADED VEHICLE) FOR OFF ROAD PACKAGE



   Vehicle Model	Inside wheel	Outside wheel (Reference)
   GSJ15L-GKFSKA	33°10' (31°10' to 34°10') 33.17° (31.17° to 34.17°)	29°38' (29.63°)
   GSJ15L-GKASKA	33°10' (31°10' to 34°10') 33.17° (31.17° to 34.17°)	29°38' (29.63°)

   If the right and left turning angles of the inside and outside wheels are not within the specified ranges, check the right and left rack end lengths.

1. Install the camber-caster-kingpin gauge and position the front wheel on the wheel alignment tester.
2. Inspect the camber, caster and steering axis inclination.
   Fig 3: Identifying Camber, Caster And Steering Axis Inclination

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Camber, caster and steering axis inclination (unloaded vehicle)

   for Standard

   NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
   CAMBER, CASTER AND STEERING AXIS INCLINATION (UNLOADED VEHICLE) FOR STANDARD



   Vehicle Model	Camber	Caster	Steering Axis Inclination
   GSJ10L-GKASKA	-0°34' +/- 30' (-0.57° +/- 0.50°)	3°34' +/- 30' (3.57° +/- 0.50°)	12°55' +/- 30' (12.92° +/- 0.50°)
   GSJ15L-GKFSKA	0°09' +/- 30' (0.15° +/- 0.50°)	2°49' +/- 30' (2.82° +/- 0.50°)	12°21' +/- 30' (12.35° +/- 0.50°)
   GSJ15L-GKASKA	0°09' +/- 30' (0.15° +/- 0.50°)	2°49' +/- 30' (2.82° +/- 0.50°)	12°21' +/- 30' (12.35° +/- 0.50°)

   Camber, caster and steering axis inclination (unloaded vehicle)

   for Off Road Package

   NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
   CAMBER, CASTER AND STEERING AXIS INCLINATION (UNLOADED VEHICLE) FOR OFF ROAD PACKAGE



   Vehicle Model	Camber	Caster	Steering Axis Inclination
   GSJ15L-GKFSKA	0°09' +/- 30' (0.15° +/- 0.50°)	2°49' +/- 30' (2.82° +/- 0.50°)	12°21' +/- 30' (12.35° +/- 0.50°)
   GSJ15L-GKASKA	0°09' +/- 30' (0.15° +/- 0.50°)	2°49' +/- 30' (2.82° +/- 0.50°)	12°21' +/- 30' (12.35° +/- 0.50°)

   NOTE:

   • Perform the inspection while the vehicle is empty (without spare tires or tools on board).
   • The tolerance for the difference between the left and right wheels is 30' (0.50°) or less for both the camber and caster.

   If the steering axis inclination is not as specified after the camber and caster have been correctly adjusted, recheck the steering knuckle and front wheel for distortion and slack.

1. Loosen the nut and bolt.
2. Turn camber adjust cam No. 2 and the toe adjust cam and adjust the camber and the caster.

   HINT:

   Try to adjust the camber and caster to the central values.

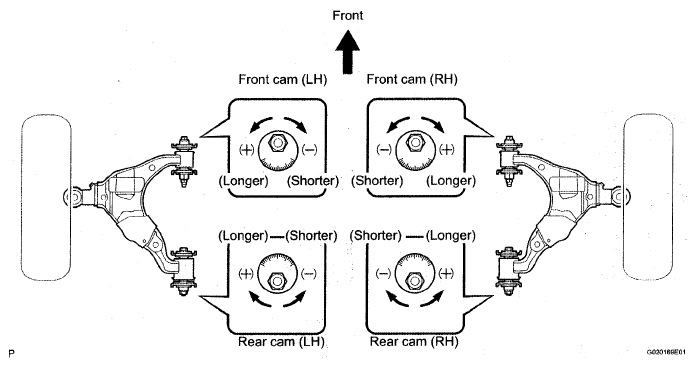

   Fig 4: Identifying Camber And Caster

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. How to read the adjustment chart (using examples).
   1. Measure the present alignment.

      Camber:

      0°15' (0.25°)

      Caster:

      2°45' (2.75°)

   2. Calculate the difference between the standard value (A) and the measured value (B) on the adjustment chart.

      Standard value:

      Camber:

      0°35' (0.58°)

      Caster:

      2°55' (2.92°)

      Formula:

      B - A = C

      Camber:

      0°15' - (0°35') = -0°20'

      Caster:

      2°45' - (2°55') = -0°10'

   3. As shown in the chart, read the distance from the marked point to 0 point, and adjust the front and/or rear adjusting cams accordingly.

      Toe adjust cam:

      - (Shorter) 2.8

      Camber adjust cam:

      - (Shorter) 1.8

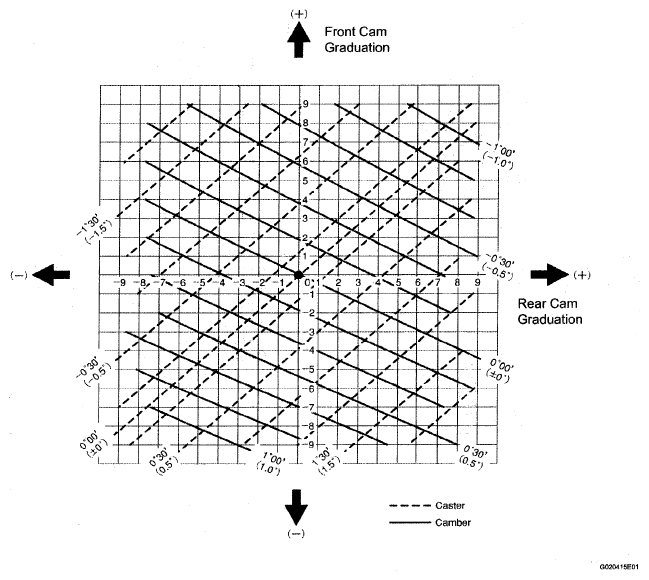

      Fig 5: Identifying Camber & Caster Adjustment Table (1 Of 2)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 6: Identifying Camber & Caster Adjustment Table (2 Of 2)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Toe-in

Fig 7: Identifying Toe-In

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the toe-in is not within the specified range, adjust it at the rack ends.

1. Remove the rack boot set clips.
2. Loosen the tie rod end lock nuts.
3. Turn the right and left rack ends uniformly to adjust the toe-in.

   HINT:

   Try to adjust the toe-in to the middle of the specified range.

4. Make sure that the lengths of the right and left rack ends are the same.
5. Tighten the tie rod end lock nuts.

   Torque: 88 N*m (897 kgf*cm, 65 ft.*lbf)

   Fig 8: Identifying Tie Rod End Lock Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Place the boots on the seats and install the clips.

   HINT:

   Make sure that the boots are not twisted.
